Hyundai Genesis Coupe 2.0T Engine Room Fuse Box RH Layout - Theta II G4KF

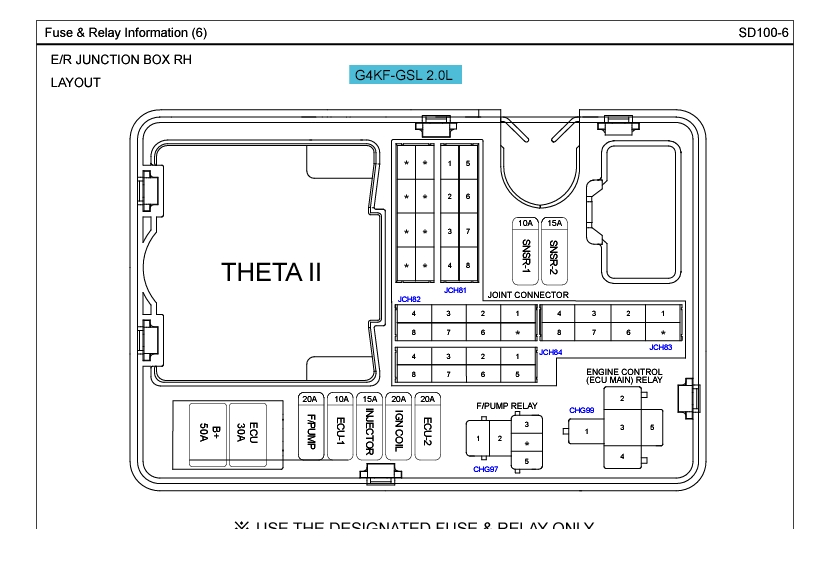

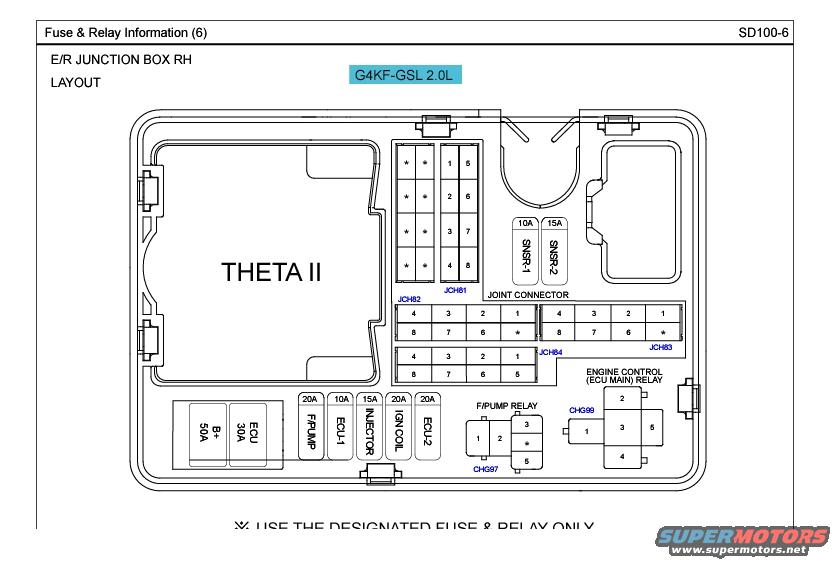

This document is page SD100-6 ("Fuse & Relay Information (6)") from a Hyundai service/ETM manual, showing the layout of the right-hand engine room (E/R) junction box for vehicles equipped with the G4KF-GSL 2.0L Theta II engine — the 2.0L turbocharged four-cylinder used in the Genesis Coupe. The diagram shows the physical positions of fuses, relays, and joint connectors inside the passenger-side underhood fuse box. Fuses shown include SNSR-1 (10A) and SNSR-2 (15A) near the joint connector area, and a bottom row containing B+ (50A), ECU (30A), F/PUMP (20A), ECU-1 (10A), INJECTOR (15A), IGN COIL (20A), and ECU-2 (20A). Two relays are identified: the Fuel Pump (F/PUMP) relay with connector designation CHG97, and the Engine Control (ECU Main) relay with connector designation CHG99, each with numbered pin cavities. Four joint connectors (JCH81, JCH82, JCH83, JCH84) are shown with their pin numbering. A footnote instructs to use only the designated fuse and relay. A reader can use this page to locate a specific fuse or relay in the engine bay fuse box and identify its amperage rating.
