Wiring diagram for 1995 Bronco instrument cluster C252 connector.

Wiring diagram for 1995 Bronco instrument cluster C252 connector.
Wiring diagram for 1995 Bronco instrument cluster C252 connector.Original file
Wiring diagram for 1995 Bronco instrument cluster C252 connector.

1995 Bronco EVTMView all 56

1995 Ford Bronco 5.0L engine controls wiring diagram 24-1, PCM power, fuel pump and MAF 1995 Ford Bronco 5.0L engine controls wiring diagram 24-1, PCM power relay and MAF, page 2 1995 Ford Bronco Air Conditioner/Heater Wiring Diagram (page 54-3) with PCM and pressure switches 1995 Bronco radio wiring diagram showing speakers, fuse panel and color-coded circuits 1995 Bronco premium sound radio wiring diagram with amplifier, speakers and color-coded circuits 1995 Bronco radio C257 connector pin-out diagram with pin, circuit and function table 1995 Bronco radio C258 connector pin-out diagram with pin/function table and connector reference list 1995 Bronco 5.0L engine controls wiring diagram with fuel pump module, inertia switch and color codes 1995 Bronco instrument cluster wiring diagram for coolant temp and oil pressure gauges 1995 Bronco warning chime wiring diagram with fuse panels, courtesy lamp switch and color-coded wires Warning chime module connector C280 pinout with circuit functions and color codes 1995 Bronco component location view showing instrument panel connectors and harness routing 1995 Bronco 5.0L engine controls wiring diagram with PCM, MAP and heated oxygen sensor 1995 Bronco instrument cluster wiring diagram Wiring diagram for 1995 Bronco instrument cluster C252 connector. Wiring diagram for 1995 Ford Bronco vehicle speed sensor system 56photos in this albumView all

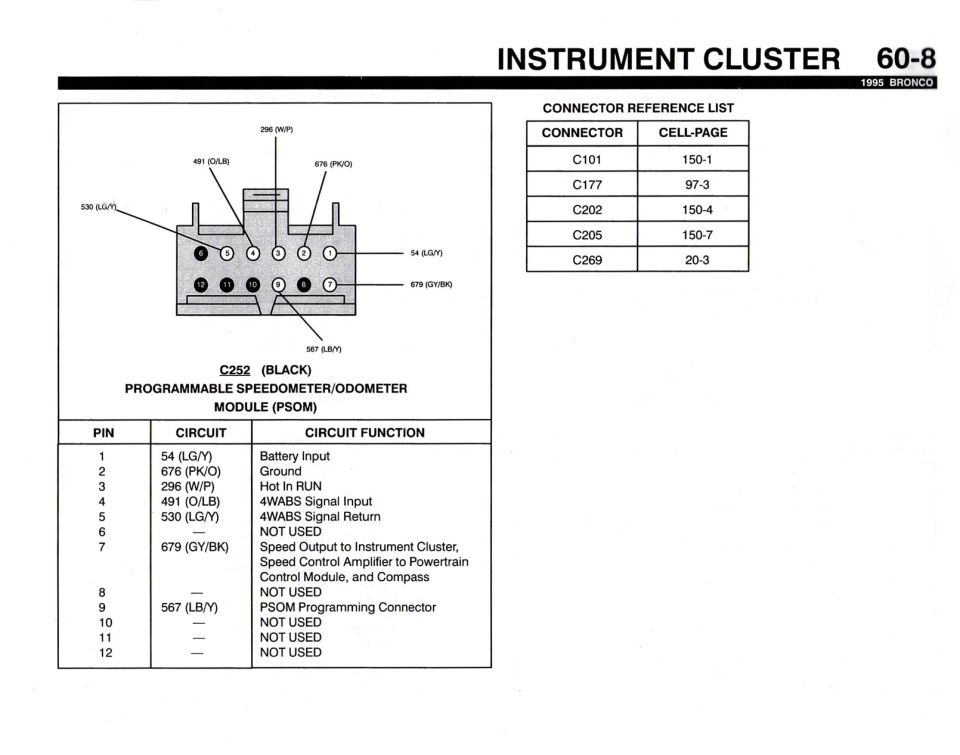

This is a document showing a wiring diagram for the instrument cluster of a 1995 Bronco. It includes a connector reference list and a detailed pinout for the C252 connector.
