KC Driving Lights & LED Light Bar Relay Wiring Diagram - Ford Bronco Aux Lights

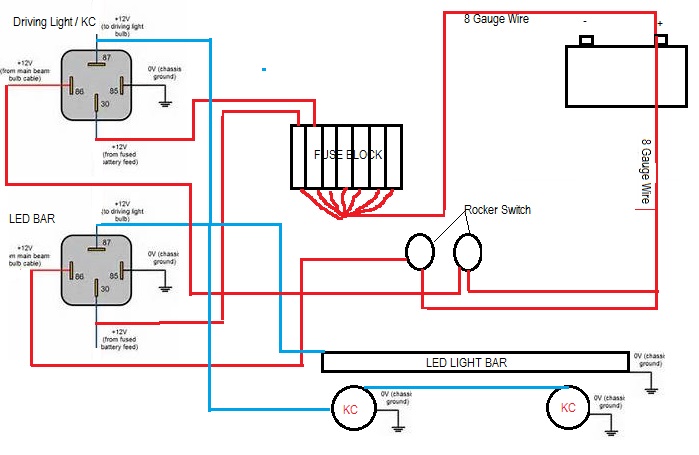

Wiring diagram for driving lights and LED light bar with relays, fuse block, and battery
Wiring diagram for driving lights and LED light bar with relays, fuse block, and batteryOriginal file
Wiring diagram for driving lights and LED light bar with relays, fuse block, and battery

Reference · 1987-1991 BroncoAll 175 wiring diagrams

KC Driving Lights & LED Light Bar Relay Wiring Diagram - Ford Bronco Aux Lights 1991 Ford Bronco Speaker Wiring Sketch - R/L Channel to Dual Speakers Diagram Amp to Dual Subwoofer Wiring Sketch - Daisy-Chained Subs Diagram Ford 3G Alternator Wiring Diagram - Mega Fuse, Charge Lamp & Wire Colors 1973-1974 Ford Point-Type Ignition System Circuit Diagram - Coil & Distributor Ford 4-Terminal Starter Relay Wiring Diagram - S & I Terminals, Coil & Starter Ford 4-Terminal Starter Solenoid Wiring Diagram - S & I Terminal Functions Connector faces page 150-22 with C128 VIP self-test connector pinouts and warning chime module 1986-95 Ford V8 Truck Speed Density EEC-IV Pinout Wiring Diagram 1990 Ford Bronco Speed Control Wiring Diagram 31-2 - Cruise Servo & Amplifier 1990 Ford Bronco Speed Control Wiring Diagram 31-1 - Cruise Control Circuit Ford EEC-IV Self-Test Connector Diagram - STO, STI, SIGRTN & Fuel Pump Pins 175wiring diagrams1987-1991 Ford Bronco More reference Ford 5.0 Fox Mustang Short Belt Routing Diagram - 84.5" & 70.5" vs StockSchematic Ford Canister Purge Regulator Valve (CANP 9C915) Test Procedure - Figure 11Service procedure Welder Input Data Plate - Serial JH229505, Stock 901782, 200/230/460V SpecsSpec plate Ford 5.0L V8 PCV Valve & Hose Routing Diagram - 9A474, 6B890, 6A664Exploded parts Ford 5.0L/5.8L Air Throttle Body Assembly Diagram - Canister Purge Ports & TPSManual page Magnum Metropolitan Brochure - Ford Bronco/F-Series Suburban-Style ConversionBrochure Tubing Adapter Blueprint 2.00" OD x 1.375" ID x 3" - 1.125"-12 TPI RH ThreadBlueprint '89 Ford vehicle emission control information label with EEC IV/EFI timing steps and vacuum hose routingVacuum routing 1990 Ford Bronco Fuse Panel Diagram: Fuse Positions, Amps & Circuits (11-2)Fuse chart Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud LocationsTorque spec

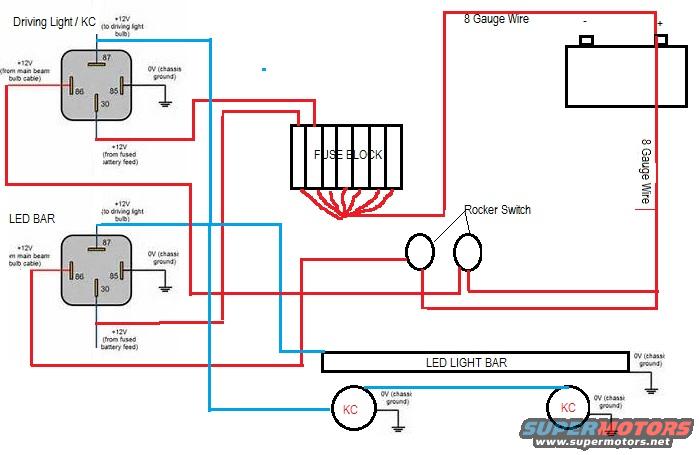

Auxiliary lighting wiring diagram showing relays, fuse block, rocker switch, battery and LED light bar with red and blue wires.

Part of 1987-1991 Ford Bronco Wiring Diagrams

AI caption · Photo 877 of 940

This document is a hand-drawn/computer-drawn wiring diagram for adding auxiliary lighting, KC driving lights and an LED light bar, to a vehicle, uploaded to a 1991 Ford Bronco gallery. It shows two standard 4/5-pin automotive relays, one labeled "Driving Light / KC" and one labeled "LED BAR." Each relay's pins are labeled: pin 87 outputs +12V to the driving light bulb, pin 86 receives +12V from the main beam (high beam) bulb cable as the trigger, pin 85 goes to 0V chassis ground, and pin 30 receives +12V from a fused battery feed. Power comes from the battery via 8 gauge wire to a multi-position fuse block, which distributes fused feeds. Two rocker switches are shown in the circuits between the fuse block/relays and the lights. The LED light bar and both KC lamps are each grounded to 0V chassis ground. Wire routing is depicted with red (power) and blue lines. A reader can learn a typical relay-based auxiliary light wiring scheme: fused battery power to relay pin 30, high-beam trigger to pin 86, ground on 85, and lamp output on 87, with rocker switches for manual control.

Is this accurate? Sign in to help verify it.

Frequently asked questions

How are the relay pins wired for the KC driving lights and LED bar?
Per the diagram, pin 87 goes +12V to the driving light bulb, pin 86 gets +12V from the main beam bulb cable (trigger), pin 85 goes to 0V chassis ground, and pin 30 gets +12V from a fused battery feed.
What gauge wire is used from the battery?
The diagram specifies 8 gauge wire on both battery connections.
How are the lights grounded?
The LED light bar and both KC lamps are each shown grounded to 0V chassis ground.
Are switches included in this auxiliary light circuit?
Yes, two rocker switches are shown wired into the circuits between the fuse block/relay wiring and the lights.
Where does relay pin 30 get its power?
Pin 30 receives +12V from a fused battery feed, supplied through the fuse block fed by 8 gauge wire from the battery.
