Connector faces page 150-22 with C128 VIP self-test connector pi…

Connector faces page 150-22 with C128 VIP self-test connector pinouts and warning chime module
Connector faces page 150-22 with C128 VIP self-test connector pinouts and warning chime moduleOriginal file
Connector faces page 150-22 with C128 VIP self-test connector pinouts and warning chime module

Reference · 1987-1991 BroncoAll 175 wiring diagrams

1973-1974 Ford Point-Type Ignition System Circuit Diagram - Coil & Distributor Ford 4-Terminal Starter Relay Wiring Diagram - S & I Terminals, Coil & Starter Ford 4-Terminal Starter Solenoid Wiring Diagram - S & I Terminal Functions Connector faces page 150-22 with C128 VIP self-test connector pinouts and warning chime module 1986-95 Ford V8 Truck Speed Density EEC-IV Pinout Wiring Diagram 1990 Ford Bronco Speed Control Wiring Diagram 31-2 - Cruise Servo & Amplifier 1990 Ford Bronco Speed Control Wiring Diagram 31-1 - Cruise Control Circuit Ford EEC-IV Self-Test Connector Diagram - STO, STI, SIGRTN & Fuel Pump Pins Ford 3G Alternator Wiring Diagram - Mega Fuse, Charge Lamp & Wire Colors KC Driving Lights & LED Light Bar Relay Wiring Diagram - Ford Bronco Aux Lights 175wiring diagrams1987-1991 Ford Bronco More reference Ford Thermactor Air Bypass Valve Cutaway Diagram - Port IdentificationSchematic Ford Canister Purge Regulator Valve (CANP 9C915) Test Procedure - Figure 11Service procedure Ford 5.8L important engine information decal with 10° BTDC timing check and ASF-32C plugSpec plate Ford 5.0L V8 PCV Valve & Hose Routing Diagram - 9A474, 6B890, 6A664Exploded parts Ford 5.0L/5.8L Air Throttle Body Assembly Diagram - Canister Purge Ports & TPSManual page 1990 Bronco Major Standard Equipment sheet with interior features and functional specs by trimBrochure Borgeson Steering Intermediate Shaft Measurement Diagram - U-Joint Length B & CBlueprint Ford Thermactor Combination Valve Diagram - Air Bypass/Control Ports LabeledVacuum routing 1990 Ford Bronco Fuse Panel Diagram: Fuse Positions, Amps & Circuits (11-2)Fuse chart Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud LocationsTorque spec

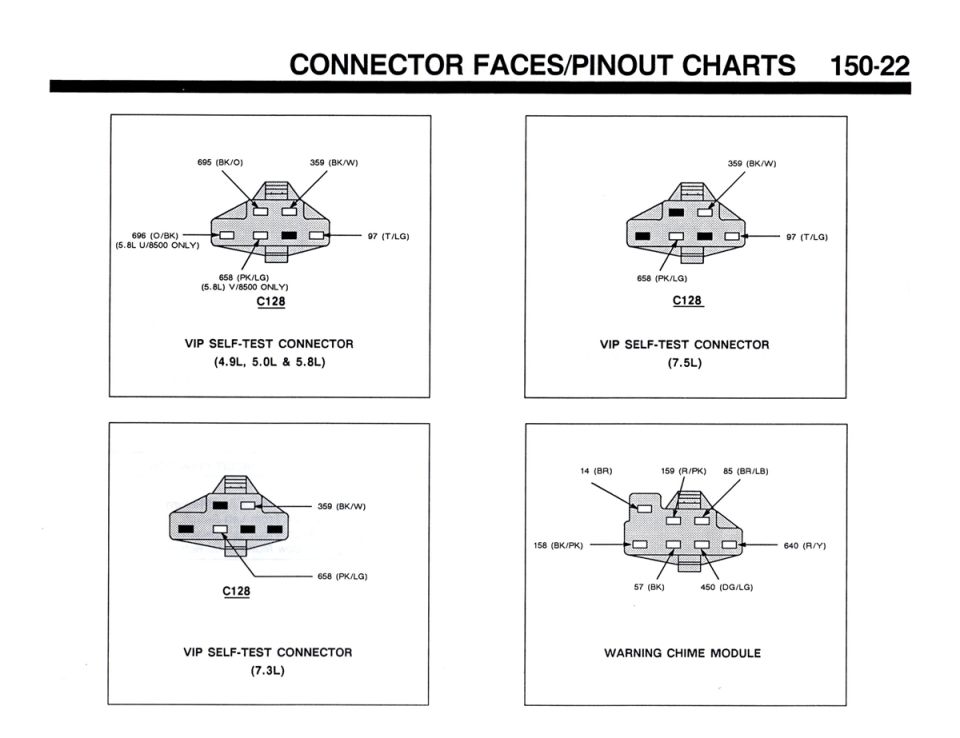

Pinout charts showing C128 VIP self-test connector for 4.9L, 5.0L and 5.8L, 7.5L and 7.3L engines, plus the warning chime module connector.
