Where is the A/V & navigation head unit connector M70-A located and what is it?

Item 119 shows M70-A at the center of the dash panel (with navigation); it is an 18-pin white connector on the A/V & navigation head unit, alongside M70-B (24-WHT), M70-C (24-WHT), and ground GM08 (1-BLK).

What connector is used for the auto light & photo sensor?

Item 115 shows connector M52, an 8-pin brown (8-BRN) connector, located at the center top of the dash panel.

What are the A/C control module connectors for manual vs. automatic climate control?

Item 120 shows M06-A (manual) / M07-A (auto) as a 40-pin white connector and M06-B (manual) / M07-B (auto) as a 16-pin white connector, both at the center of the dash panel.

Where is the center speaker connector?

Item 117 shows M09, the center speaker connector (3-pin white), at the center of the dash panel.

What connector serves the front monitor on navigation-equipped cars?

Item 118 shows M31, the front monitor connector (16-pin black), with ground GM09 (1-BLK), at the center of the dash panel (with navigation).

Home/ Registry/ Hyundai/ Genesis/ “Coupe”/ Photo supermotors.net/registry/media/1088544

Hyundai Genesis Coupe Dash Component Locations CL-20: Nav Head Unit Connectors

Component Locations CL-20 service manual page with center dash panel photos

‹ ›

Service manual component-location page showing labeled photographs of sensors, speakers, and navigation head units in the center dash panel.

AI caption May 2016 · Photo 688 of 981

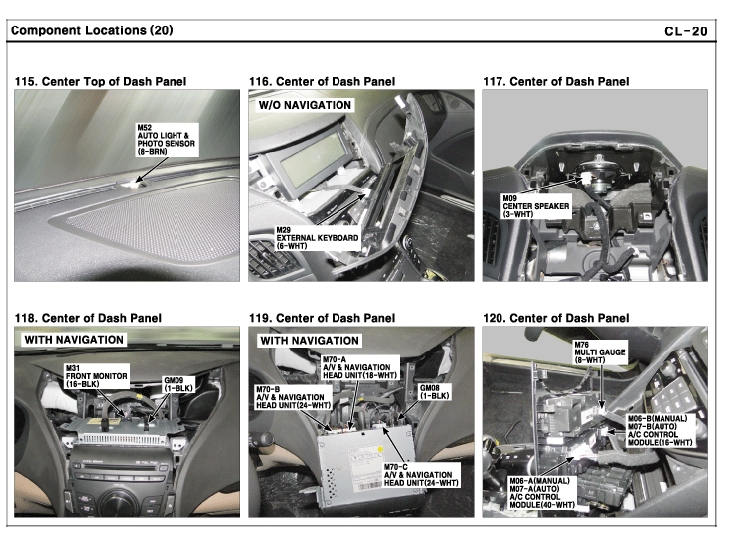

This is page CL-20, "Component Locations (20)," from a Hyundai service/wiring manual, showing six photographic callouts (items 115–120) of connector and component locations in and around the center of the dash panel. Item 115 shows the M52 auto light & photo sensor (8-pin brown connector) at the center top of the dash. Item 116 (without navigation) shows the M29 external keyboard connector (6-pin white). Item 117 shows the M09 center speaker connector (3-pin white). Item 118 (with navigation) shows the M31 front monitor connector (16-pin black) and ground GM09 (1-pin black). Item 119 (with navigation) shows the A/V & navigation head unit connectors M70-A (18-pin white), M70-B (24-pin white), M70-C (24-pin white), and ground GM08 (1-pin black). Item 120 shows the M76 multi gauge connector (8-pin white) and the A/C control module connectors — M06-B (manual) / M07-B (auto), 16-pin white, and M06-A (manual) / M07-A (auto), 40-pin white. A reader can use this page to physically locate these connectors and identify their pin counts and housing colors when diagnosing audio, navigation, HVAC, or sensor wiring behind the dash.

Is this accurate? Sign in to help verify it.

Frequently asked questions

Where is the A/V & navigation head unit connector M70-A located and what is it?: Item 119 shows M70-A at the center of the dash panel (with navigation); it is an 18-pin white connector on the A/V & navigation head unit, alongside M70-B (24-WHT), M70-C (24-WHT), and ground GM08 (1-BLK).
What connector is used for the auto light & photo sensor?: Item 115 shows connector M52, an 8-pin brown (8-BRN) connector, located at the center top of the dash panel.
What are the A/C control module connectors for manual vs. automatic climate control?: Item 120 shows M06-A (manual) / M07-A (auto) as a 40-pin white connector and M06-B (manual) / M07-B (auto) as a 16-pin white connector, both at the center of the dash panel.
Where is the center speaker connector?: Item 117 shows M09, the center speaker connector (3-pin white), at the center of the dash panel.
What connector serves the front monitor on navigation-equipped cars?: Item 118 shows M31, the front monitor connector (16-pin black), with ground GM09 (1-BLK), at the center of the dash panel (with navigation).
