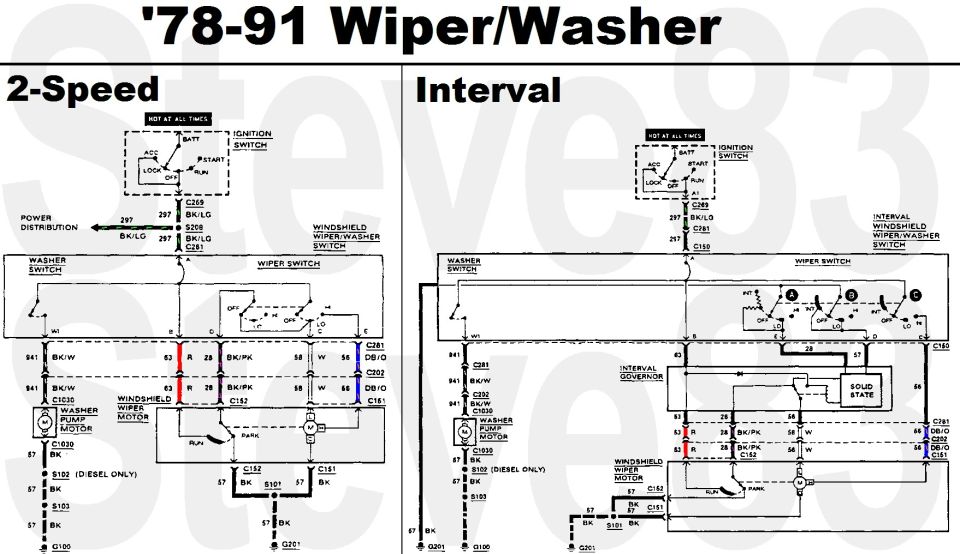

'78-91 Wiper/Washer Circuits
IF THE IMAGE IS TOO SMALL, click it.

Note that the motor is the same, and the interval governor plugs into the same connector that the non-interval switch uses. So the interval system is PnP.
