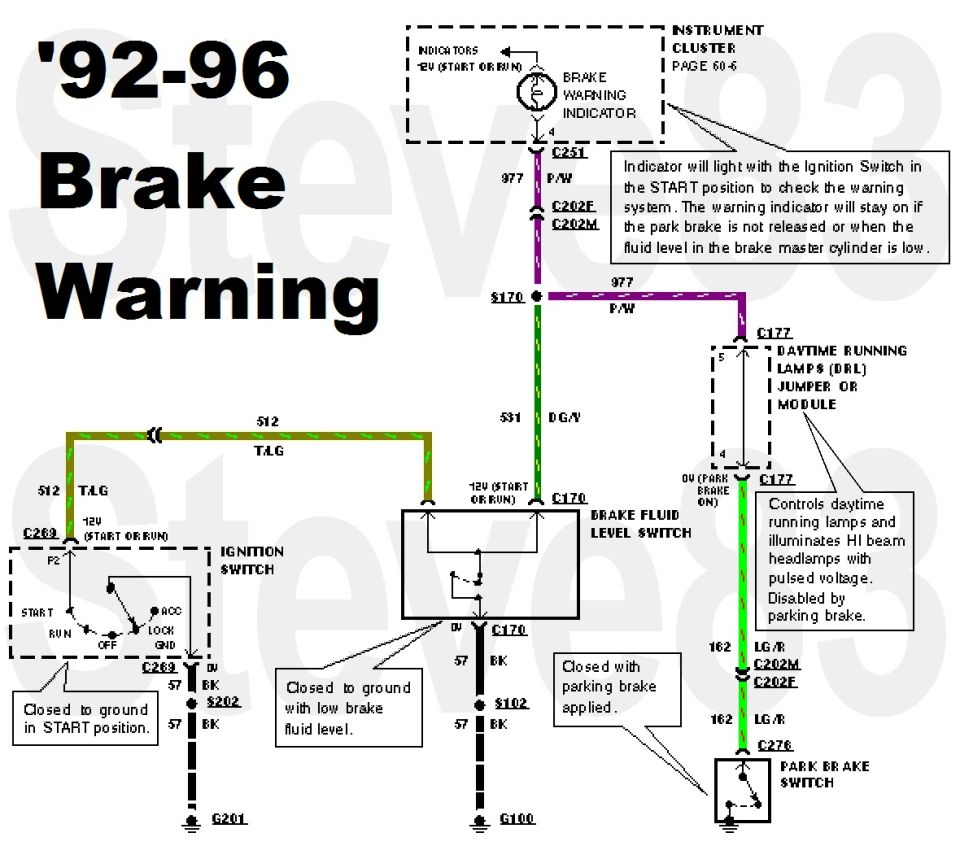

'92-96 brake warning wiring diagram with ignition switch, brake…

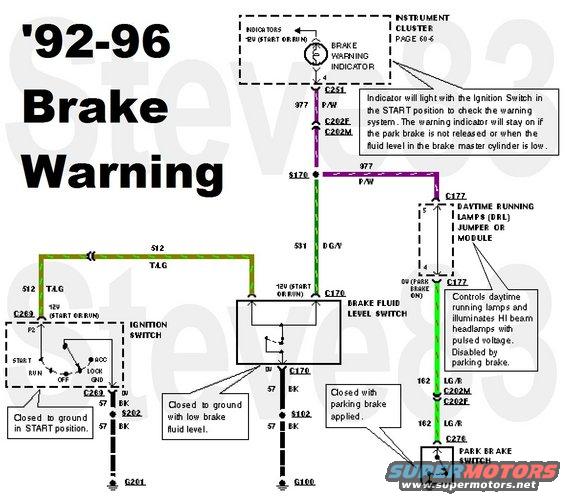

'92-96 Bronco Brake Warning
(F-series wiring slightly different)

. .

The ignition switch connection in '93-96 Broncos is just for the bulb test during cranking, but in F-series & '92 Broncos, it's also where the circuit inputs to the RABS module.

Park/e-brake switch Standard DS3398
