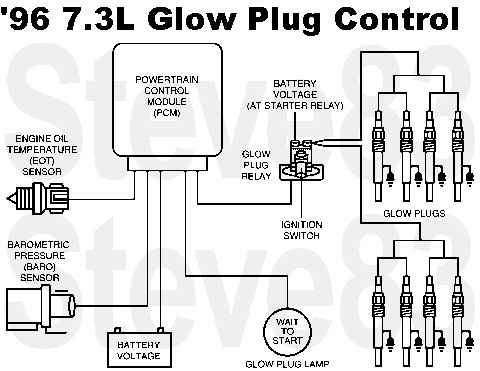

'96 7.3L glow plug control diagram with PCM, glow plug relay, EO…

‹ ›

Reference · 1980-1986 BroncoAll 92 wiring diagrams

'93-95 Lightning fog lamp wiring and installation diagram with relay and switch circuits

Ford Diesel Dual Fuel Tank Gauge & Selector Valve Wiring Diagram

'94-96 radio and amplifier wiring diagram with harness part numbers and radio delete inset

'92-94 and '95-96 wiper and washer wiring diagrams with multi-function switch and wiper control module

'78-91 wiper/washer wiring diagrams for 2-speed and interval systems with wire colors and connectors

'92-96 brake warning wiring diagram with ignition switch, brake fluid level switch, park brake switch and DRL

2-speed fan motor wiring diagram with OFF illumination, fan and speed relays, 170°F and 210°F switches

92wiring diagrams1980-1986 Ford Bronco More reference

Ford accessories catalog page with cellular mobile telephone and 40-channel CB emergency radio

Brochure

Ford door certification label dated 11/95 with GVWR 6300LB, P235/75R15XL tires and VIN 1FMEU15H4TLA76236

Spec plate

1992-96 Ford F-150/F-250/F-350 2WD Front Sway Bar Diagram & Part Numbers

Exploded parts

1992 Ford E4OD Transmission Fault Code Diagnosis Chart - DTC List & Symptoms

Service procedure

Schematic

1996 Ford Bronco/F-Series Starting System - Section 03-06 Contents

Manual page

Trim panel hole layout photos for positions A, B and C with tape measure readings from the body line

Blueprint

Ford 1996 5.8L vehicle information decal with vacuum hose routing diagram and ASF-32P plug

Vacuum routing

Torque spec

'95 F150 fuse and relay chart with fuse panel layout, ATC and Maxi fuse amp tables

Fuse chart

Glow Plug Lamp Control
The glow plug lamp (WAIT TO START) is located on the instrument panel and is controlled by the PCM. This lamp is used to indicate when to start the engine. The PCM energizes the glow plug lamp longer if the engine is very cold or if the barometric pressure is low.

The glow plug lamp is controlled by the following sequence:
PCM lights the WAIT TO START lamp after a key on reset occurs.
PCM determines the glow plug lamp activation time based on engine oil temperature, barometric pressure and battery voltage.
PCM turns off the WAIT TO START lamp when the timer counts to the number of seconds specified by the PCM. The glow plugs will normally remain on longer than the WAIT TO START lamp.
