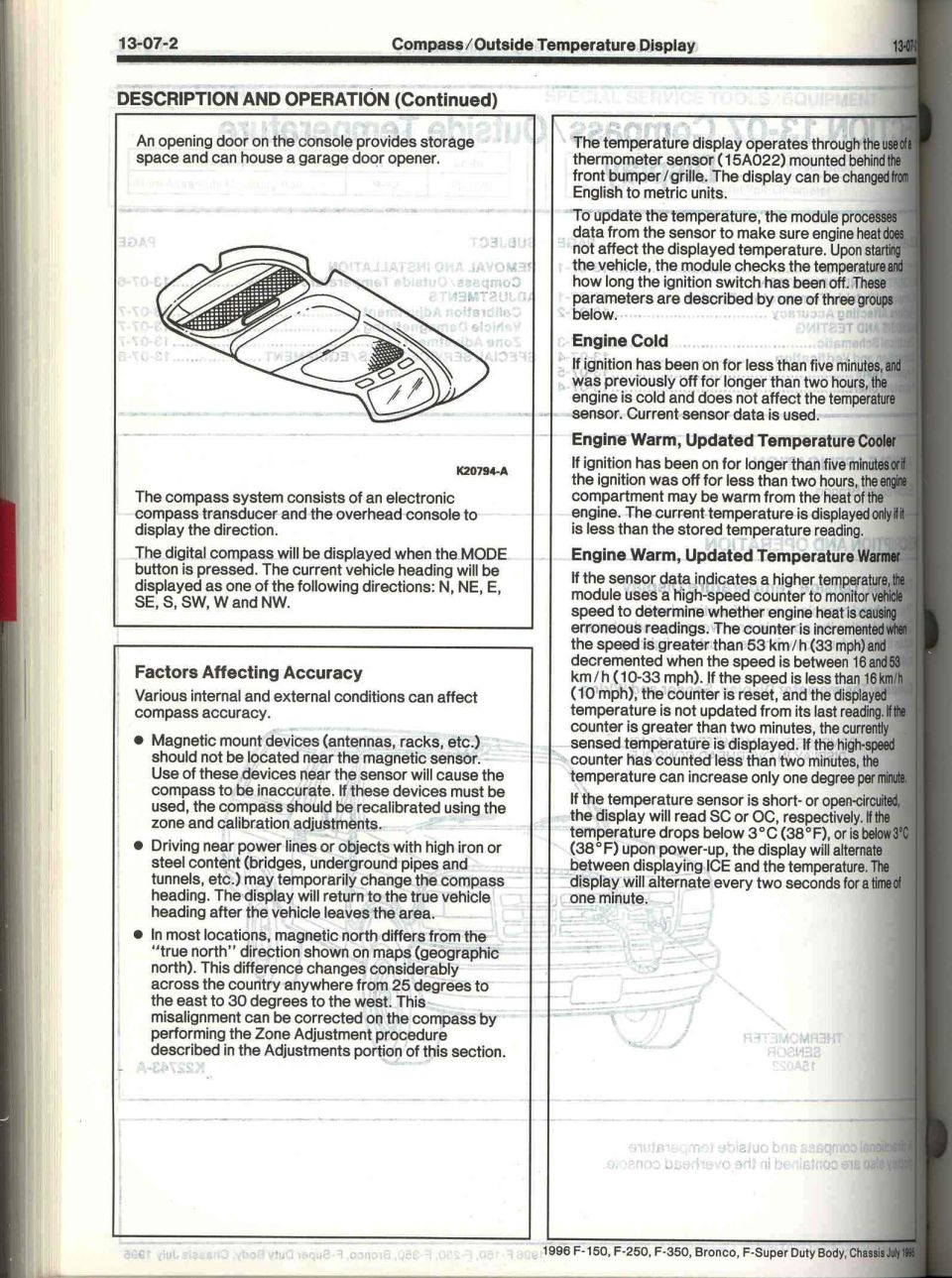

Overhead console compass and outside temperature display descrip…

Compass/ Outside Temperature Display DESCRIPTION AND OPERATION (Continued) An opening door on the console provides storage space and can house a garage door opener. KZOIMA The compass system consists of an electronic compass transducer and the overhead console to display the direction. The digital compass will be displayed when the MODE button is pressed. The current vehicle heading will be displayed as one of the following directions: N. NE, E, SE, S, SW, W and NW. Factors Affecting Accuracy Various internal and external conditions can affect compass accuracy. 0 Magnetic mount devices (antennas, racks, etc.) should not be located near the magnetic sensor. Use of these devices near the sensor will cause the compass to be inaccurate. If these devices must be used. the compass should be recalibrated using the zone and calibration adjustments. 0 Driving near power lines or objects with high iron or steel content (bridges, underground pipes and tunnels, etc.) may temporarily change the compass heading. The display will return to the true vehicle heading after the vehicle leaves the area. 0 in most locations, magnetic north differs from the true north" direction shown on maps (geographic north). This difference changes considerably across the country anywhere from 25 degrees to the east to 30 degrees to the west. This misalignment can be corrected on the compass by performing the Zone Adjustment procedure described in the Adjustments portion of this section. thermometer sensor (15A022) mounted behind front bumper/ grille. The display can be chan English to metric units. Toupdate the temperature, the module pr- u ' data from the sensor to make sure engine heat, not affect the displayed temperature. Upon a the vehicle. the module checks the temperat how long the ignition switch has been off.. parameters are described by one of three or below. . ' Engine Cold if ignition has been on for less than five min was previously off for longer than two hour engine is cold and does not affect the temps sensor. Current sensor data is used. Engine Warm, Updated Temperature 0- 0" If ignition has been on for longer than five min the ignition was off for less than two houre,the compartment may be warm from the heat 0 engine. The current temperature is displayed is less than the stored temperature readin Engine Warm, Updated Temperaturelfll If the sensor data indicates a higher temper module usesa lgh-speed counter to monitor speed to determine whether engine heat is erroneous readings. The counter is incre the speed is greater than 53 km/ h (33 mph decremented when the speed is between 1 km / h (10-33 mph). If the speed is less than 16 (10 mph), the counter is reset. and the display temperature is not updated from its last readin counter is greater than two minutes, the curr sensed temperature is displayed. If the-hi - counter has counted less than two minutes. the temperature can increase only one degree par If the temperature sensor is short- or openclr the display will read SC or 00, respectively ll temperature drops below 3C (38F), or is (33F) upon power-up, the display will altema between displaying ICE and the temperature. display will alternate every two seconds for all -.' one minute. 1996 F-150, F-250. F350, Bronco. F-Super Duty Body, ctr
