What does ABS Code 11 mean on a 1996 Ford Bronco or F-150?

Code 11 indicates an anti-lock brake electronic control module failure. The specified action is to REPLACE the anti-lock brake electronic control module.

What does ABS Code 16 mean?

Code 16 means the system is OK; no action is required.

What causes ABS Code 17 (Reference Voltage/Intermittent Valve Fault)?

Possible sources include a 30 amp fuse open, intermittent connections to battery, main relay or ground, main relay coil or contacts open, opens or shorts to ground in Circuit 532 (O/Y), 599 (PK/LG), or 601 (LG/PK), a short to ground through the anti-lock hydraulic control unit, intermittent valve failures, and high resistance valves. Go to Pinpoint Test A.

What does ABS Code 22 indicate and what circuit is involved?

Code 22 is a Front Left Inlet Solenoid Valve concern. Possible sources include intermittent open Circuit 495 (T), terminal backout at control module connector Pins 17 and 40 or hydraulic control unit connector Pins 1, 4 and 6, an open or shorted inlet front left valve coil, or a shorted driver in the control module. Go to Pinpoint Test B.

Which pinpoint test applies to ABS Code 24?

Code 24 (Front Right Inlet Solenoid Valve Concern, involving Circuit 497 (W)) directs the technician to GO to Pinpoint Test D.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ 1996 Ford Bronco/ Photo supermotors.net/registry/media/1110171

1996 Ford Bronco/F-150 4-Wheel ABS Trouble Codes 11-24 Diagnosis Chart

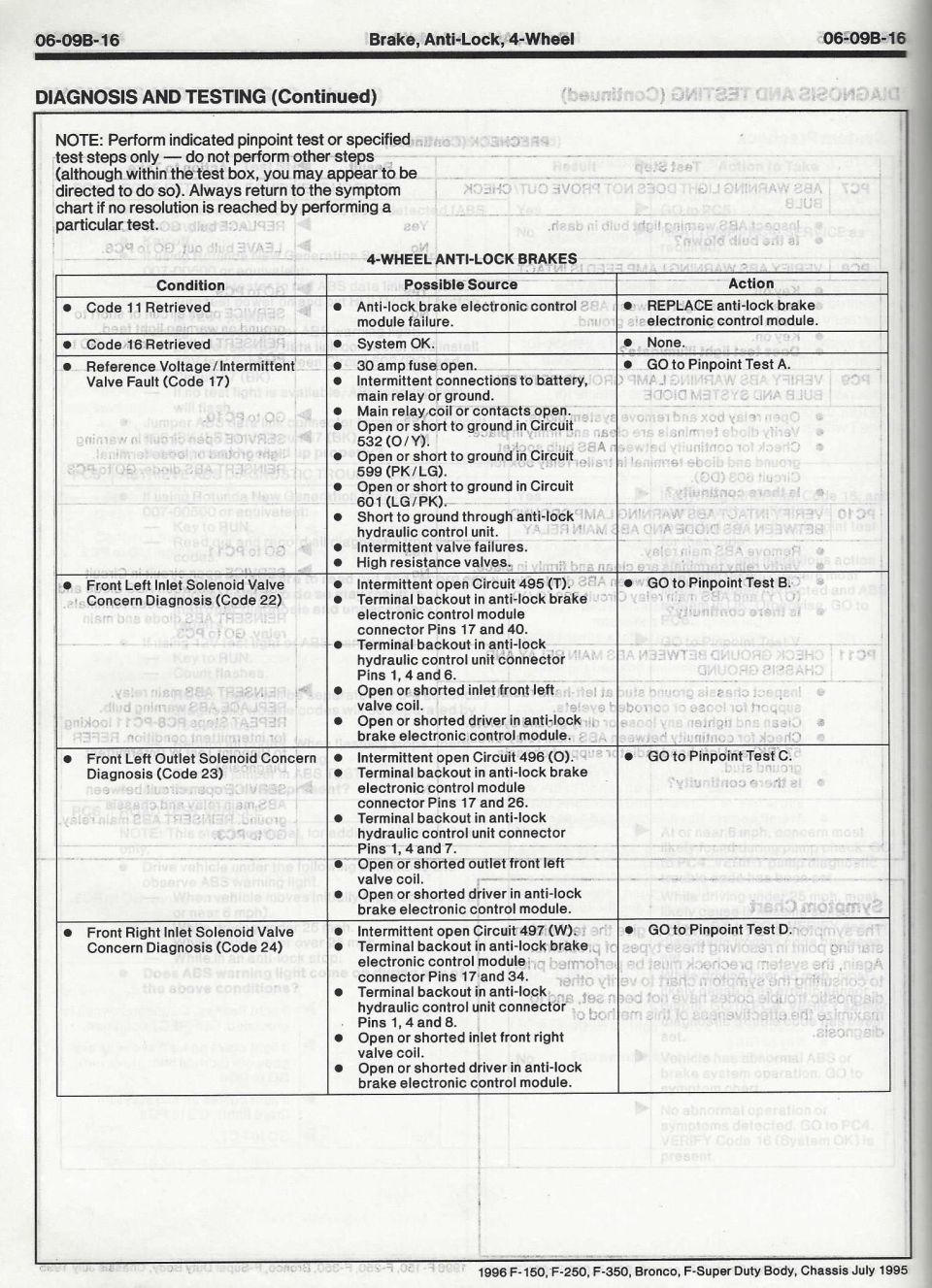

Scanned 1996 F-150 service manual page, 4-wheel ABS diagnostic code retrieval trouble-code table

‹ ›

Reference · 1992-1996 BroncoAll 98 manual pages

1996 Ford Bronco/F-150-F-350 ABS Codes 52-67 Diagnosis Chart - Pg 06-09B-19

1996 Ford Bronco/F-150 4-Wheel ABS Codes 33-77 Diagnosis Chart (06-09B-18)

1996 Ford Bronco/F-150 4-Wheel ABS Codes 25-32 Diagnosis Chart (06-09B-17)

1996 Ford Bronco/F-150 4-Wheel ABS Trouble Codes 11-24 Diagnosis Chart

Ford engine controls manual page on Throttle Bypass Air, Idle Speed Control (ISC) with valve photo

1996 Ford Bronco/F-150 Instrument Cluster Indicator Diagram - Page 13-01-2

1996 Ford Bronco & F-150/250/350 Instrument Cluster Diagram - Warning Lights

1994 Ford Fuel Delivery Assembly Diagram - In-Tank Pump & Reservoir (Page 9A-6)

BMW M3 Owner's Manual Page 3 - Engine Compartment Component Locations

Supplementary Owner's Manual M3 Contents - Vehicle Immobilization System Index

Lift kit part number table for 80-96 Bronco 4WD, 2WD and 78-79 Bronco 4WD by lift height

1996 Ford Bronco Owner's Manual - Checking & Adding Engine Coolant

98manual pages1992-1996 Ford Bronco More reference

1996 Ford Bronco C202F 76-Pin Connector Pinout - EVTM Page 150-4

Wiring diagram

Exploded parts

Ford EEC-IV Output State Check & Cylinder Balance Test - Code Reader Procedure

Service procedure

Ford E4OD Solenoid Body Pin ID, Resistance Chart & PCM Pins - ATSG Fig. 16

Spec plate

Ford 5.0L / 5.8L HO Firing Order Diagram - Spark Plug Wire Routing & Timing

Schematic

Brochure

1996 Ford Bronco/F-150 Overhead Console Compass Temp Display Connector Pinout

Fuse chart

Blueprint

1995 Ford Bronco 5.8L Emissions/VECI Label - Vacuum Hose Routing Diagram

Vacuum routing

Rod Bolt Stretch Monitoring Chart - 8-Rod V8 Connecting Rod Bolt Record Sheet

Torque spec

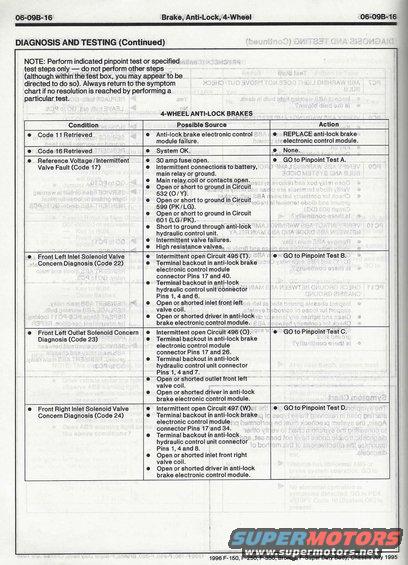

Scanned Ford service manual page with 4-wheel ABS diagnostic trouble codes, reference-voltage faults, and pinpoint-test actions.

Part of 1992-1996 Ford Bronco Manual Pages

AI caption June 2017 · Photo 307 of 409

This is page 06-09B-16 from the 1996 Ford F-150, F-250, F-350, Bronco, and F-Super Duty Body/Chassis service manual (dated July 1995), covering Diagnosis and Testing for the 4-Wheel Anti-Lock Brake (ABS) system. The page presents a symptom/diagnostic trouble code chart listing conditions, possible sources, and actions for ABS codes 11 through 24. Code 11 indicates anti-lock brake electronic control module failure (replace module); Code 16 means the system is OK. Code 17 (Reference Voltage/Intermittent Valve Fault) may be caused by an open 30 amp fuse, intermittent battery/relay/ground connections, or opens/shorts in Circuits 532 (O/Y), 599 (PK/LG), or 601 (LG/PK), directing the technician to Pinpoint Test A. Codes 22, 23, and 24 cover front left inlet, front left outlet, and front right inlet solenoid valve concerns, involving Circuits 495 (T), 496 (O), and 497 (W), terminal backout at specific module and hydraulic control unit connector pins, or shorted valve coils, directing to Pinpoint Tests B, C, and D respectively. A note instructs technicians to perform only the indicated pinpoint test steps and return to the symptom chart if no resolution is reached.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What does ABS Code 11 mean on a 1996 Ford Bronco or F-150?: Code 11 indicates an anti-lock brake electronic control module failure. The specified action is to REPLACE the anti-lock brake electronic control module.
What does ABS Code 16 mean?: Code 16 means the system is OK; no action is required.
What causes ABS Code 17 (Reference Voltage/Intermittent Valve Fault)?: Possible sources include a 30 amp fuse open, intermittent connections to battery, main relay or ground, main relay coil or contacts open, opens or shorts to ground in Circuit 532 (O/Y), 599 (PK/LG), or 601 (LG/PK), a short to ground through the anti-lock hydraulic control unit, intermittent valve failures, and high resistance valves. Go to Pinpoint Test A.
What does ABS Code 22 indicate and what circuit is involved?: Code 22 is a Front Left Inlet Solenoid Valve concern. Possible sources include intermittent open Circuit 495 (T), terminal backout at control module connector Pins 17 and 40 or hydraulic control unit connector Pins 1, 4 and 6, an open or shorted inlet front left valve coil, or a shorted driver in the control module. Go to Pinpoint Test B.
Which pinpoint test applies to ABS Code 24?: Code 24 (Front Right Inlet Solenoid Valve Concern, involving Circuit 497 (W)) directs the technician to GO to Pinpoint Test D.
