What does ABS Code 63 mean on a 1996 Ford Bronco or F-Series?

Code 63 means the pump motor was triggered but did not run. Possible sources include a damaged pump motor, terminal backout in the anti-lock brake electronic control module harness connector Pins 17, 29, 37 and 38, an open or shorted pump motor relay coil, open contacts in the pump motor relay, or terminal backout in the pump motor 4-way connector Pins 1, 2, 3 or 4. The chart directs you to Pinpoint Test S.

What causes ABS Code 65 (Acceleration Sensor)?

Possible sources are terminal backout in the ABS electronic control module wiring harness connector Pins 30, 31 and 32; a worn or damaged acceleration switch; a worn or damaged anti-lock brake electronic control module; acceleration switch terminal backout at Pins 1, 2 and 3; or a short to ground in Circuits 836 (O/W), 886 (O/BK) and 887 (Y). Go to Pinpoint Test T.

Why is the amber ABS warning lamp on with no diagnostic code?

Possible sources include a worn or damaged ignition switch, an open ignition feed circuit to the anti-lock brake electronic control module, low battery voltage (less than 8V), a blown ignition fuse, or an open system ground. The manual directs you to Pinpoint Test V.

What should I check if both the ABS and speedometer are not working properly?

The chart lists no signal to the anti-lock brake electronic control module from the vehicle speed sensor, or a defective vehicle speed sensor, and directs you to Pinpoint Test Y.

What do ABS Codes 52 and 53 indicate?

Code 52 is a hydraulically inoperative right front outlet valve or sensor disturbance detected (go to Pinpoint Test Q); Code 53 is the same condition for the rear axle outlet valve (go to Pinpoint Test R). Possible sources include a pinched or closed brake line or hose, or a worn or clogged outlet valve.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ 1996 Ford Bronco/ Photo supermotors.net/registry/media/1110174

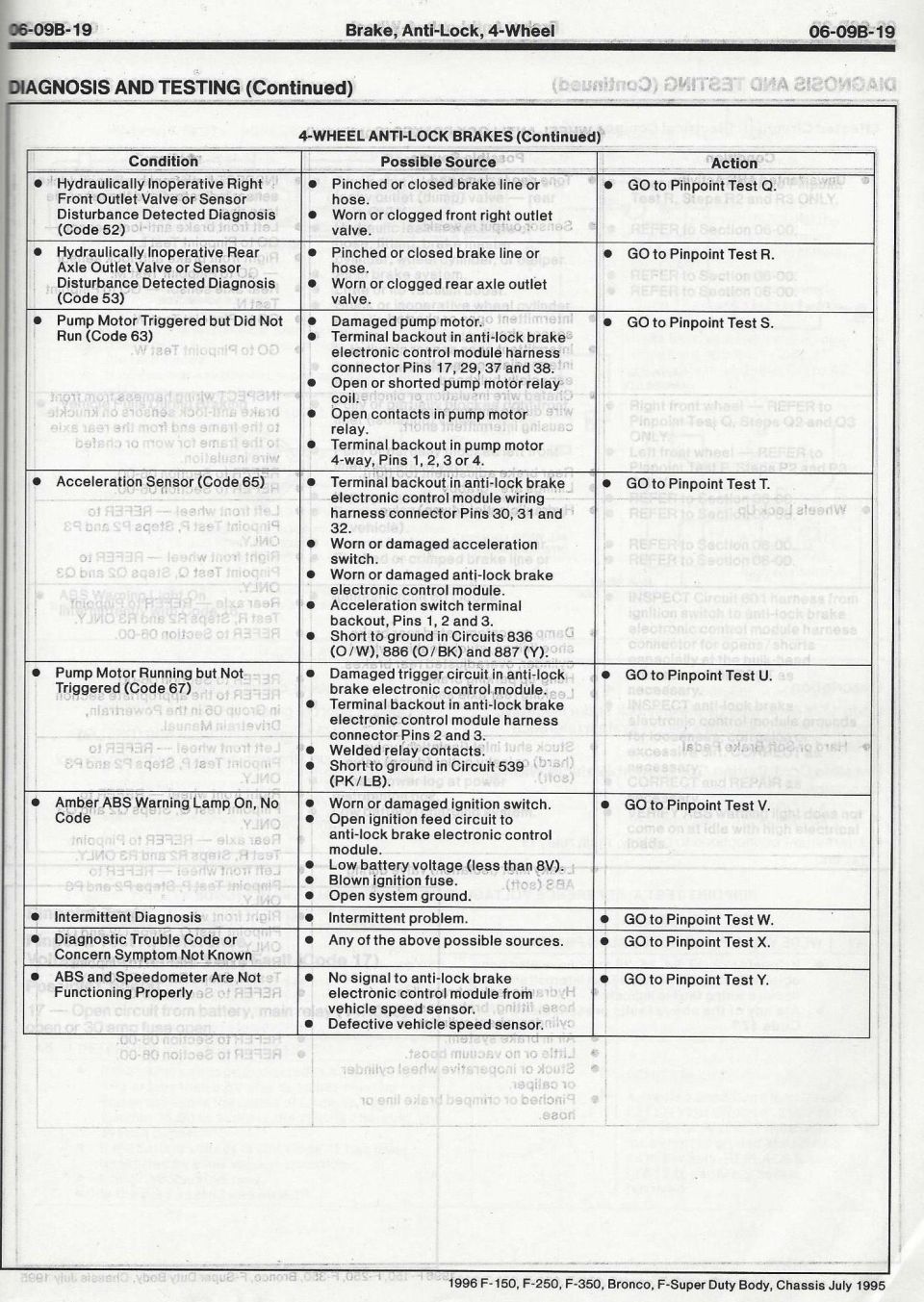

1996 Ford Bronco/F-150-F-350 ABS Codes 52-67 Diagnosis Chart - Pg 06-09B-19

Scanned 1996 F-150 service manual page, 4-wheel anti-lock brake diagnosis and testing trouble-code table

‹ ›

Reference · 1992-1996 BroncoAll 98 manual pages

1994 Ford Fuel Delivery Systems - In-Tank Fuel Pump Assembly Diagram (9A-5)

'96 Bronco owner's manual pages 338-339 lubricant specification tables with Ford part numbers

Owner's manual pages 52-53 on captain's chairs and reclining seatback with latch and lever callouts

1996 Ford Bronco/F-150-F-350 ABS Codes 52-67 Diagnosis Chart - Pg 06-09B-19

1996 Ford Bronco/F-150 4-Wheel ABS Codes 33-77 Diagnosis Chart (06-09B-18)

1996 Ford Bronco/F-150 4-Wheel ABS Codes 25-32 Diagnosis Chart (06-09B-17)

1996 Ford Bronco/F-150 4-Wheel ABS Trouble Codes 11-24 Diagnosis Chart

Ford engine controls manual page on Throttle Bypass Air, Idle Speed Control (ISC) with valve photo

BMW M3 Owner's Manual Page 3 - Engine Compartment Component Locations

Supplementary Owner's Manual M3 Contents - Vehicle Immobilization System Index

Lift kit part number table for 80-96 Bronco 4WD, 2WD and 78-79 Bronco 4WD by lift height

1996 Ford Bronco Owner's Manual - Checking & Adding Engine Coolant

98manual pages1992-1996 Ford Bronco More reference

1996 Ford Bronco C202F 76-Pin Connector Pinout - EVTM Page 150-4

Wiring diagram

Exploded parts

Ford EEC-IV Output State Check & Cylinder Balance Test - Code Reader Procedure

Service procedure

Ford E4OD Solenoid Body Pin ID, Resistance Chart & PCM Pins - ATSG Fig. 16

Spec plate

Ford 5.0L / 5.8L HO Firing Order Diagram - Spark Plug Wire Routing & Timing

Schematic

Brochure

1996 Ford Bronco/F-150 Overhead Console Compass Temp Display Connector Pinout

Fuse chart

Blueprint

1995 Ford Bronco 5.8L Emissions/VECI Label - Vacuum Hose Routing Diagram

Vacuum routing

Rod Bolt Stretch Monitoring Chart - 8-Rod V8 Connecting Rod Bolt Record Sheet

Torque spec

Scanned Ford service manual page listing 4-wheel ABS diagnostic trouble codes with condition, possible source, and pinpoint-test action columns.

Part of 1992-1996 Ford Bronco Manual Pages

AI caption June 2017 · Photo 310 of 409

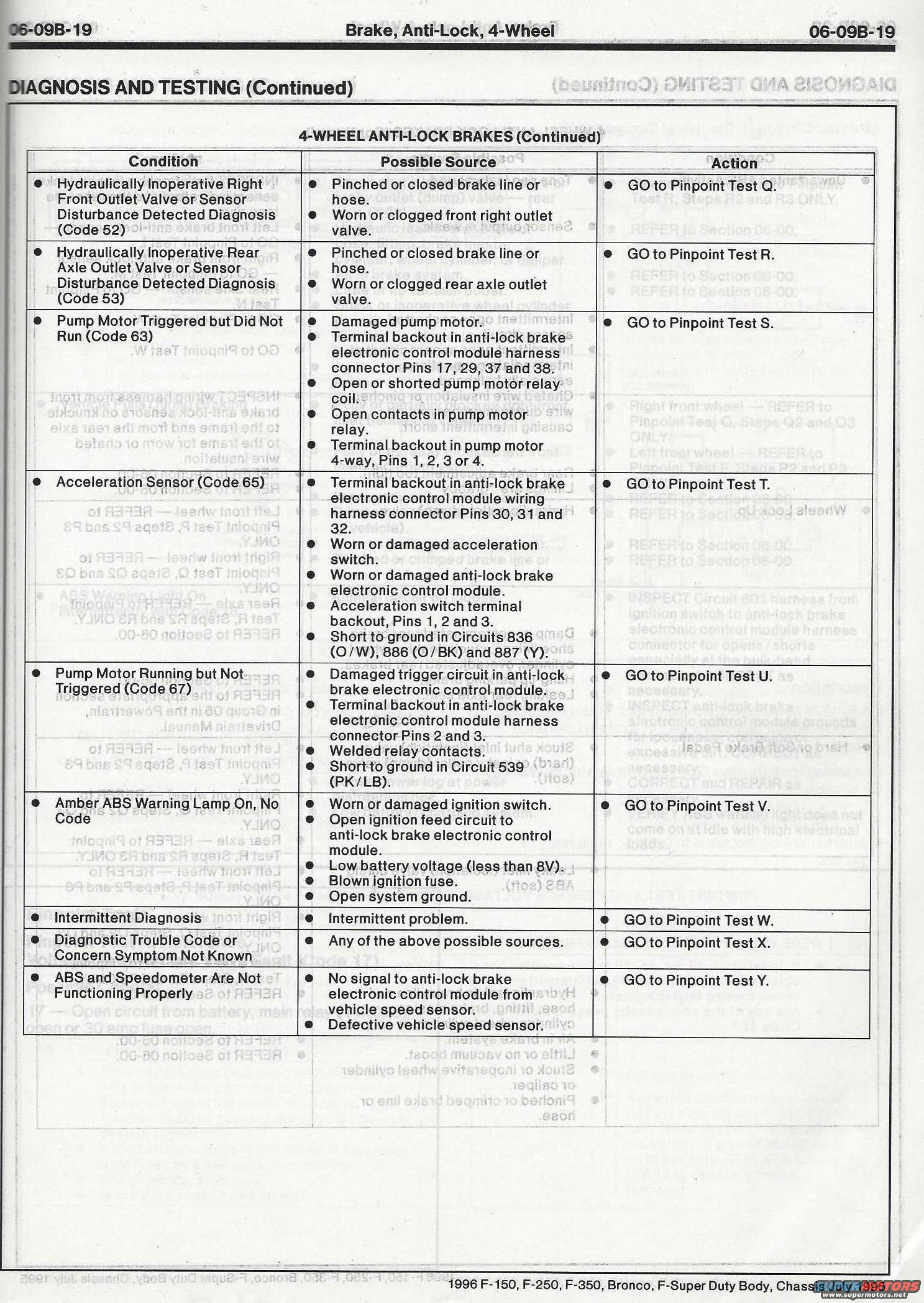

This is page 06-09B-19 from the 1996 Ford F-150, F-250, F-350, Bronco, and F-Super Duty Body/Chassis service manual (dated July 1995), covering Diagnosis and Testing of the 4-Wheel Anti-Lock Brake (ABS) system. It presents a continued symptom/diagnostic chart with three columns: Condition, Possible Source, and Action. Conditions covered include Code 52 (hydraulically inoperative right front outlet valve or sensor disturbance), Code 53 (rear axle outlet valve), Code 63 (pump motor triggered but did not run), Code 65 (acceleration sensor), Code 67 (pump motor running but not triggered), amber ABS warning lamp on with no code, intermittent diagnosis, unknown trouble code, and ABS/speedometer not functioning properly. Each condition lists possible causes such as pinched brake lines, worn outlet valves, terminal backout at specific connector pins (e.g., pins 17, 29, 37, 38 for Code 63; pins 30, 31, 32 for Code 65), relay faults, shorts to ground in circuits 836 (O/W), 886 (O/BK), 887 (Y), and 539 (PK/LB), low battery voltage, blown ignition fuse, and defective vehicle speed sensor. Each row directs the technician to a specific Pinpoint Test (Q through Y) for further diagnosis.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What does ABS Code 63 mean on a 1996 Ford Bronco or F-Series?: Code 63 means the pump motor was triggered but did not run. Possible sources include a damaged pump motor, terminal backout in the anti-lock brake electronic control module harness connector Pins 17, 29, 37 and 38, an open or shorted pump motor relay coil, open contacts in the pump motor relay, or terminal backout in the pump motor 4-way connector Pins 1, 2, 3 or 4. The chart directs you to Pinpoint Test S.
What causes ABS Code 65 (Acceleration Sensor)?: Possible sources are terminal backout in the ABS electronic control module wiring harness connector Pins 30, 31 and 32; a worn or damaged acceleration switch; a worn or damaged anti-lock brake electronic control module; acceleration switch terminal backout at Pins 1, 2 and 3; or a short to ground in Circuits 836 (O/W), 886 (O/BK) and 887 (Y). Go to Pinpoint Test T.
Why is the amber ABS warning lamp on with no diagnostic code?: Possible sources include a worn or damaged ignition switch, an open ignition feed circuit to the anti-lock brake electronic control module, low battery voltage (less than 8V), a blown ignition fuse, or an open system ground. The manual directs you to Pinpoint Test V.
What should I check if both the ABS and speedometer are not working properly?: The chart lists no signal to the anti-lock brake electronic control module from the vehicle speed sensor, or a defective vehicle speed sensor, and directs you to Pinpoint Test Y.
What do ABS Codes 52 and 53 indicate?: Code 52 is a hydraulically inoperative right front outlet valve or sensor disturbance detected (go to Pinpoint Test Q); Code 53 is the same condition for the rear axle outlet valve (go to Pinpoint Test R). Possible sources include a pinched or closed brake line or hose, or a worn or clogged outlet valve.
