What does the BOO switch do in the 1996 E4OD transmission control circuit?

The Brake On/Off (BOO) switch, closed with the brake pedal depressed, sends a signal to the PCM to disengage the torque converter clutch. The PCM may ignore this signal if the TP signal is above closed throttle.

Which fuses power the E4OD transmission controls on this diagram?

Fuse 13 (15A, hot at all times) and fuse 17 (10A, hot in start or run) in the fuse panel, referenced on pages 13-3, 13-12, and 13-16.

What does the Transmission Control Switch (TCS) do?

It is a momentary contact switch that signals the PCM to allow automatic shifts from 1st through 4th gear or from 1st through 3rd gears.

What does the TCIL indicator show?

It indicates that 4th gear has been disengaged, and may also flash if monitored sensors/actuators or circuits have failed.

What wire colors and circuit numbers are used in this E4OD circuit?

Circuit 363 R/W (red/white), 640 R/W, 511 LG (light green), 224 T/W (tan/white), and 911 W/LG (white/light green), running through connectors C279, C275F/M, C202F/M, C185 and C1027.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “Buckin Bronco”/ Photo supermotors.net/registry/media/1110737

1996 Ford E4OD Transmission Controls Wiring Diagram (Gasoline) - Page 30-1

96 Bronco 30-1 Transmission Controls (E4OD) Gasoline wiring diagram: BOO switch, transmission control switch, turn/hazard lamps

‹ ›

Reference · 1992-1996 BroncoAll 411 wiring diagrams

1996 Ford Bronco Charging System Wiring Diagram - Alternator & Voltage Regulator

1996 Ford Bronco E4OD Transmission Range (TR) Sensor Wiring Diagram 30-3

1996 Ford E4OD Transmission Controls Wiring Diagram (Gasoline) - Page 30-2

1996 Ford E4OD Transmission Controls Wiring Diagram (Gasoline) - Page 30-1

1996 Ford Bronco 5.8L Misfire Sensor Wiring Diagram - Engine Controls 25-6

1996 Ford 5.8L Engine Controls Wiring Diagram - MIL & O2 Sensor Circuits 25-5

Ford 5.8L Engine Controls Wiring Diagram - IAT & Oxygen Sensor to PCM (Pg 96)

1996 Ford 5.8L Engine Controls Wiring Diagram: EGR, ECT, TPS, DPFE to PCM

1996 Ford Bronco C202F 76-Pin Connector Pinout - EVTM Page 150-4

1994 Ford Bronco/F-Series C103 & C108 Connector Pinouts - EVTM Page 150-2

1994 Ford Bronco/F-Series EVTM 150-2: C103 & C108 In-Line Connector Pinouts

Ford Bronco VSS to PCM Wiring Diagram - Rear Axle Sensor, PSOM, ABS Circuit

411wiring diagrams1992-1996 Ford Bronco More reference

Exploded parts

Ford F150/F250/F350 4x4 & Bronco Truck Jacking Instructions Label E7TA-17A083-EA

Service procedure

Spec plate

1996 Ford Bronco Owner's Manual - Checking & Adding Engine Coolant

Manual page

1993 Ford V8 Serpentine Belt Routing Diagram - Pulley Layout (Q2601-E)

Schematic

Smittybilt XRC Gen 3 Winch Box - 9.5K/12K Recovery Winch Features & Callouts

Brochure

Blueprint

1995 Ford Bronco 5.8L Emissions/VECI Label - Vacuum Hose Routing Diagram

Vacuum routing

Ford Bronco/F-Series Fuse 18 (10A) - Speedometer, Air Bag, Shift Control

Fuse chart

Rod Bolt Stretch Monitoring Chart - 8-Rod V8 Connecting Rod Bolt Record Sheet

Torque spec

E4OD transmission controls wiring diagram for 1996 Ford Bronco gasoline showing BOO switch and transmission control switch circuits.

Part of 1992-1996 Ford Bronco Wiring Diagrams

AI caption July 2017 · Photo 249 of 378

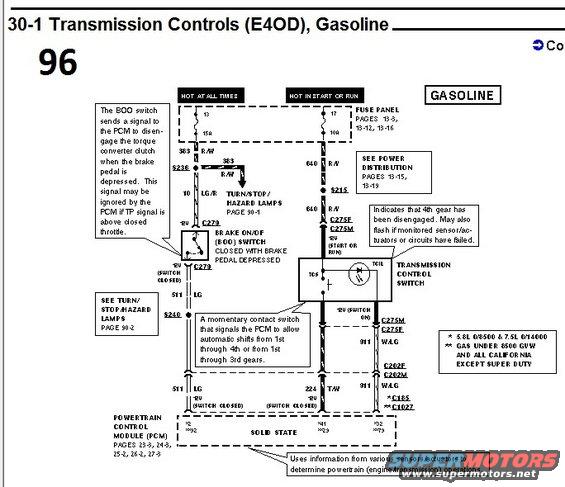

This is page 30-1 of a 1996 Ford factory wiring diagram (EVTM) covering Transmission Controls for the E4OD automatic transmission in gasoline-engine trucks. The diagram shows power feeds from the fuse panel: fuse 13 (15A, hot at all times) and fuse 17 (10A, hot in start or run), with references to Power Distribution pages 13-15 and 13-19. It traces circuit 363 (R/W wire) through splice S238 to the Brake On/Off (BOO) switch, which closes when the brake pedal is depressed and signals the PCM to disengage the torque converter clutch (circuit 511 LG). Circuit 640 (R/W) through splice S215 powers the Transmission Control Switch (TCS), a momentary switch that allows shifts 1st-4th or 1st-3rd, and the TCIL indicator, which shows 4th gear disengagement and can flash for monitored sensor/actuator faults. Wiring runs through connectors C279, C275F/C275M, C202F/C202M, C185 and C1027 to the Powertrain Control Module (solid state), with wire colors and circuit numbers (363 R/W, 640 R/W, 511 LG, 224 T/W, 911 W/LG) labeled. Footnotes indicate applicability differences for 5.8L over 8500 GVW, 7.5L over 14000, gas under 8500 GVW, and California/Super Duty variations.
