What fuse powers circuit 298 (P/O) in this diagram?

Fuse E, a 15A fuse in the engine compartment fuse box, fed by circuit 687 (GY/Y) from splice S217 (page 13-3) through connector C202.

What components does circuit 298 P/O feed?

From splice S105 it feeds the Daytime Running Lamps (DRL) module via C177, the heated oxygen sensor (HO2S) via C1025, the speed control servo/amplifier via C216, and depending on transmission: the backup lamp switch (C166, manual), park/neutral position switch (C127, C6), or manual lever position (MLP) sensor (C1012, E4OD or 4R70W). A trailer tow branch feeds the trailer battery charge relay via C202, C205, and C149 (all except Bronco).

What does the Bronco-only branch power?

Circuit 601 (LB/PK) runs from S105 to the 4WABS control module via connector C119 and to 4WABS relay #1 in the trailer relay box (page 42-3).

What wire colors are used in this power distribution circuit?

Circuit 687 is GY/Y, circuit 298 is P/O (pink/orange), and circuit 601 is LB/PK (light blue/pink).

Which engines apply to the C1003 branch differences?

One branch applies to 4.3L, 5.0L, or 5.8L under 8500 lbs & Lightning; the asterisked branch (C1003*) applies to 5.8L over 8500 lbs and 7.5L engines.

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “Buckin Bronco”/ Photo supermotors.net/registry/media/1116057

1994 Ford Bronco/F-Series Power Distribution Wiring Diagram - Fuse E Circuit 298

Ford EVTM page 13-4: power distribution wiring diagram for DRL, sensors and transmission

‹ ›

Reference · 1992-1996 BroncoAll 411 wiring diagrams

Ford Bronco/F-Series Power Distribution Wiring Diagram - Gasoline, Page 94

Ford Bronco Power Distribution Wiring Diagram - Fuel Pump Relay, PCM, 4WABS

1994 Ford F-Series/Bronco Power Distribution Wiring Diagram - Gasoline (13-5)

1994 Ford Bronco/F-Series Power Distribution Wiring Diagram - Fuse E Circuit 298

1996 Ford Bronco Power Distribution Wiring Diagram - Ignition Switch & Fuse Panel

Ford Power Distribution Wiring Diagram - Gasoline, Fuse Links, IAR, Trailer Tow

1994 Ford E4OD Transmission Wiring Diagram (Gasoline) - Solenoids, PCM Circuits

1996 Ford Bronco C202F 76-Pin Connector Pinout - EVTM Page 150-4

1994 Ford Bronco/F-Series C103 & C108 Connector Pinouts - EVTM Page 150-2

1994 Ford Bronco/F-Series EVTM 150-2: C103 & C108 In-Line Connector Pinouts

Ford Bronco VSS to PCM Wiring Diagram - Rear Axle Sensor, PSOM, ABS Circuit

411wiring diagrams1992-1996 Ford Bronco More reference

Exploded parts

Ford F150/F250/F350 4x4 & Bronco Truck Jacking Instructions Label E7TA-17A083-EA

Service procedure

Spec plate

1996 Ford Bronco Owner's Manual - Checking & Adding Engine Coolant

Manual page

1993 Ford V8 Serpentine Belt Routing Diagram - Pulley Layout (Q2601-E)

Schematic

Smittybilt XRC Gen 3 Winch Box - 9.5K/12K Recovery Winch Features & Callouts

Brochure

Blueprint

1995 Ford Bronco 5.8L Emissions/VECI Label - Vacuum Hose Routing Diagram

Vacuum routing

Ford Bronco/F-Series Fuse 18 (10A) - Speedometer, Air Bag, Shift Control

Fuse chart

Rod Bolt Stretch Monitoring Chart - 8-Rod V8 Connecting Rod Bolt Record Sheet

Torque spec

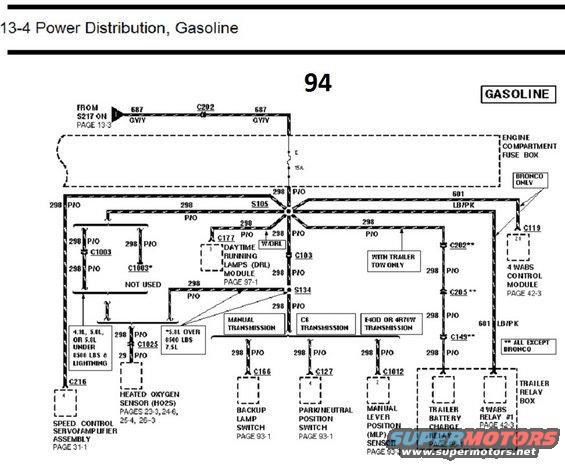

Power distribution wiring diagram routing power to daytime running lamps, oxygen sensor, neutral switches and 4WABS control module.

Part of 1992-1996 Ford Bronco Wiring Diagrams

AI caption July 2017 · Photo 292 of 378

This document is a 1994 Ford power distribution wiring diagram (page 13-4, "Power Distribution, Gasoline") showing how circuit 687 (GY/Y) from splice S217 (page 13-3) feeds fuse E (15A) in the engine compartment fuse box, which then powers circuit 298 (P/O) through splice S105. From S105, circuit 298 branches to: connectors C1003/C1003* (with a not-used branch, varying by engine, 4.3L/5.0L/5.8L under 8500 lbs & Lightning vs. 5.8L over 8500 lbs/7.5L), the Daytime Running Lamps (DRL) module via C177 (page 97-1), connector C103 and splice S134, the heated oxygen sensor (HO2S) via C1025 (pages 23-3, 24-6, 25-4, 26-3), the speed control servo/amplifier via C216 (page 31-1), and transmission-specific switches: backup lamp switch (C166, manual transmission), park/neutral position switch (C127, C6 transmission), or MLP sensor (C1012, E4OD or 4R70W). A Bronco-only branch (circuit 601 LB/PK) feeds the 4WABS control module (C119) and 4WABS relay #1 (page 42-3). A trailer tow branch (all except Bronco) runs through C202/C205/C149 to the trailer battery charge relay (page 95-1) in the trailer relay box. Useful for tracing circuit 298 power feeds and fuse E on 1994 Ford trucks.

This document covers 1994, which may differ from this 1996 Ford Bronco.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What fuse powers circuit 298 (P/O) in this diagram?: Fuse E, a 15A fuse in the engine compartment fuse box, fed by circuit 687 (GY/Y) from splice S217 (page 13-3) through connector C202.
What components does circuit 298 P/O feed?: From splice S105 it feeds the Daytime Running Lamps (DRL) module via C177, the heated oxygen sensor (HO2S) via C1025, the speed control servo/amplifier via C216, and depending on transmission: the backup lamp switch (C166, manual), park/neutral position switch (C127, C6), or manual lever position (MLP) sensor (C1012, E4OD or 4R70W). A trailer tow branch feeds the trailer battery charge relay via C202, C205, and C149 (all except Bronco).
What does the Bronco-only branch power?: Circuit 601 (LB/PK) runs from S105 to the 4WABS control module via connector C119 and to 4WABS relay #1 in the trailer relay box (page 42-3).
What wire colors are used in this power distribution circuit?: Circuit 687 is GY/Y, circuit 298 is P/O (pink/orange), and circuit 601 is LB/PK (light blue/pink).
Which engines apply to the C1003 branch differences?: One branch applies to 4.3L, 5.0L, or 5.8L under 8500 lbs & Lightning; the asterisked branch (C1003*) applies to 5.8L over 8500 lbs and 7.5L engines.
