1995 Ford Bronco 5.8L Emissions/VECI Label - Vacuum Hose Routing Diagram

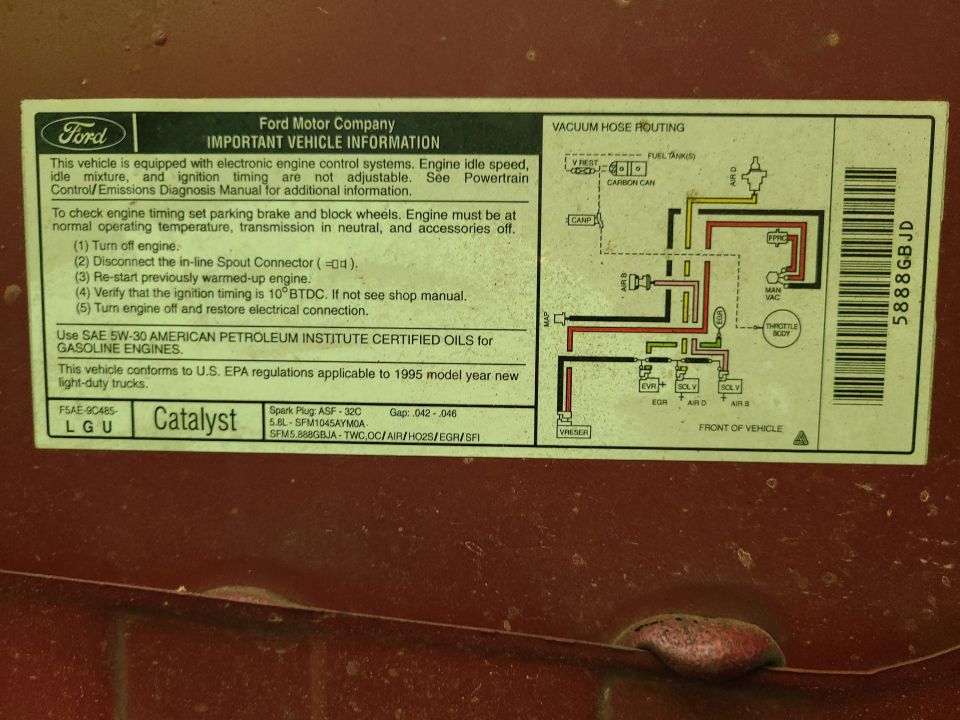

This is a Ford Motor Company Vehicle Emission Control Information (VECI) / Important Vehicle Information underhood label, photographed on the vehicle. It applies to a 1995 model year light-duty truck with the 5.8L gasoline engine. The label states that electronic engine control systems govern idle speed, idle mixture, and ignition timing (which are not adjustable), and gives a five-step procedure for checking base ignition timing: turn off the engine, disconnect the in-line SPOUT connector, restart the warmed-up engine, verify timing at 10° BTDC, then shut down and reconnect. It specifies SAE 5W-30 API-certified oil for gasoline engines, confirms conformance to U.S. EPA 1995 model-year light-duty truck regulations, and lists spark plug ASF-32C with a gap of.042-.046. Calibration/part identifiers include F5AE-9C485-LGU, 5.8L - SFM1045AYM0A, and SFM5.888GBJA with emissions equipment codes TWC, OC/AIR/HO2S/EGR/SFI (three-way catalyst, oxidation catalyst, air injection, heated oxygen sensor, EGR, sequential fuel injection). The right half shows the vacuum hose routing diagram with color-coded hoses connecting the fuel tank(s), carbon canister, CANP, MAP, EGR/EVR, AIR B and AIR D solenoids, FPRC, manifold vacuum, throttle body, and vacuum reservoir (VRESER), oriented to the front of the vehicle.
