What vehicles does this cruise control servo installation diagram cover?

It covers the Ford F-150, F-250, F-350 and Bronco with the 4.9L engine, per the legend title "Servo and Bracket Installation, F-150-250-350 and Bronco, 4.9L Engine."

What is the torque spec for the cruise control servo bracket bolts?

The two bolts (part N605902-S2) are torqued to 15-18 N·m (11-13 ft-lb), and the two nuts (620480-S2) are torqued to 5-7 N·m (4-5 ft-lb).

What is the Ford part number for the cruise control servo and bracket assembly?

Item 1, the Servo and Bracket Assembly, is part number 9C734.

What part number is the accelerator cable in this diagram?

The accelerator cable is item 7, part number 9A758, and its support bracket is item 8, part number 9278.

What parts make up the vacuum hose portion of the 4.9L cruise system shown?

Item 3 is the Hose and Valve Assembly (9E802) and item 5 is the Hose Assembly (also listed as 9E802).

Home/ Registry/ Ford/ Bronco/ 1980-1986/ “That dirty old truck”/ Photo supermotors.net/registry/media/1170689

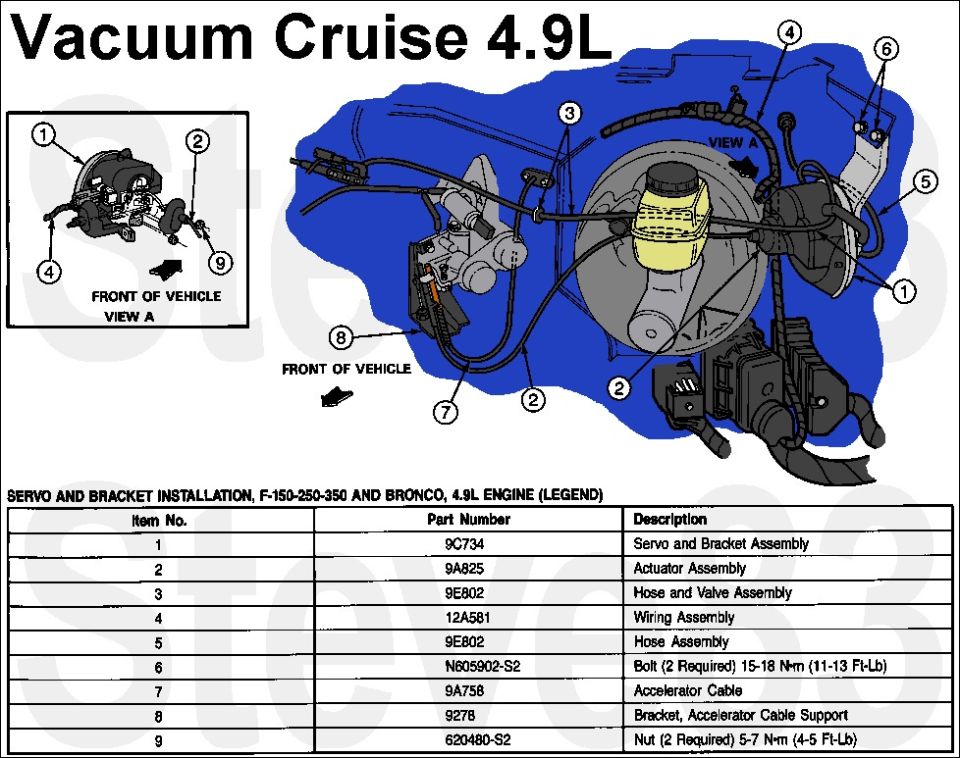

Ford F-150/250/350 & Bronco 4.9L Cruise Control Servo Vacuum Diagram

Vacuum Cruise 4.9L servo and bracket diagram with numbered hose routing and parts legend

92 Vacuum Cruise 4.9L

See also:
. . .

Owner caption September 2022 · Photo 0 of 5000

This document is a factory-style illustration titled "Vacuum Cruise 4.9L" showing the servo and bracket installation for the speed control (cruise control) system on Ford F-150, F-250, F-350 trucks and the Bronco equipped with the 4.9L (inline six) engine. The main drawing depicts the engine compartment area around the brake master cylinder and booster, with numbered callouts (1-9) identifying components, plus an inset "View A" detail of the servo and bracket assembly with a "Front of Vehicle" orientation arrow. A legend table lists each item number with its Ford base part number and description: servo and bracket assembly (9C734), actuator assembly (9A825), hose and valve assembly (9E802), wiring assembly (12A581), hose assembly (9E802), mounting bolts (N605902-S2, 2 required, torqued to 15-18 N·m / 11-13 ft-lb), accelerator cable (9A758), accelerator cable support bracket (9278), and nuts (620480-S2, 2 required, torqued to 5-7 N·m / 4-5 ft-lb). A reader can learn the routing and mounting locations of the cruise control vacuum servo, hoses, cables, and wiring, plus the correct fastener torque specifications for installation or repair.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What vehicles does this cruise control servo installation diagram cover?: It covers the Ford F-150, F-250, F-350 and Bronco with the 4.9L engine, per the legend title "Servo and Bracket Installation, F-150-250-350 and Bronco, 4.9L Engine."
What is the torque spec for the cruise control servo bracket bolts?: The two bolts (part N605902-S2) are torqued to 15-18 N·m (11-13 ft-lb), and the two nuts (620480-S2) are torqued to 5-7 N·m (4-5 ft-lb).
What is the Ford part number for the cruise control servo and bracket assembly?: Item 1, the Servo and Bracket Assembly, is part number 9C734.
What part number is the accelerator cable in this diagram?: The accelerator cable is item 7, part number 9A758, and its support bracket is item 8, part number 9278.
What parts make up the vacuum hose portion of the 4.9L cruise system shown?: Item 3 is the Hose and Valve Assembly (9E802) and item 5 is the Hose Assembly (also listed as 9E802).
