What fuses power the Ford Tripminder module on the 5.0L CFI engine?

Three fuses feed the module: fuse 8 (15A, hot at all times) supplies B+ power on circuit 54 LG/Y; fuse 6 (20A, hot in accessory or run) supplies ignition power on circuit 296 W/P; and fuse 4 (15A, hot at all times) feeds the dimmer circuit through the main light switch, then through fuse 13 (5A) on circuit 19 LB/R.

What wire color is the Tripminder speed input?

The speed input at module pin 8 uses circuit 150, dark green with white stripe (DG/W), running through connectors C1430 and C3104 to the speed sensor, with a branch to speed control (page 126).

Where does the Tripminder fuel flow input come from?

Pin 6 (fuel flow input) connects on circuit 305 LB/P H through connector C1431 to the Electronic Engine Control, referenced on page 45.

How is the Tripminder module grounded?

Pin 9 grounds through circuit 57 BK via connector C1429 and splice S501 to ground point G502 (see Grounds, page 5).

What connectors and splices appear in this Tripminder circuit?

Connectors C302, C200, C1442, C1429, C1431, C1430, C3104; splices S106, S772, S504, S501; and ground G502.

Home/ Registry/ Ford/ LTD Crown Victoria/ 1983-1991/ “babycakes”/ Photo supermotors.net/registry/media/205174

Ford Tripminder Wiring Diagram 5.0L CFI - EVTM Page 77 (LTD Crown Victoria)

Tripminder 5.0L CFI engine wiring diagram with fuse panels, modules and color-coded circuits

‹ ›

Reference · 1983-1991 LTD Crown VictoriaAll 23 wiring diagrams

1985 Ford LTD Crown Victoria Charge/Power Distribution Wiring Diagram (EVTM p19)

Ford Tripminder Wiring Diagram - C705 Connector Pinout & Wire Colors (K6248-E)

Ford Tripminder Wiring Diagram 5.0L CFI - EVTM Page 77 (LTD Crown Victoria)

1985 Ford LTD Crown Victoria Instrument Cluster Connector C400 Pinout Diagram

Ford Trip Minder Module Wiring Diagram - Power, Speed Sensor & Ground Circuits

1987 Ford Crown Victoria & Grand Marquis ATC A/C-Heater Wiring Diagram

1987 Ford LTD Crown Victoria Wiring Diagram - Underdash & Instrument Panel

1987 Ford LTD Crown Victoria Wiring Diagram - Rear Compartment & Accessories

1987 Ford LTD Crown Victoria Radio Wiring Diagram - Speaker Wire Colors & Fuses

1987 Ford LTD Crown Victoria Premium Sound Radio Wiring Diagram - 2-Ch Amp

1987 Ford LTD Crown Victoria Premium Sound Radio Wiring Diagram - 4-Ch Amp

23wiring diagrams1983-1991 Ford LTD Crown Victoria More reference

1985 Ford LTD Crown Victoria Tripminder Circuit & Component Locations - EVTM p78

Manual page

1991 Grumman LLV Data Plate - GVWR, GAWR, Tire Specs & VIN (GM Chassis)

Spec plate

Metropolitan Police 'Every Breath You Take' Anti-Drunk Driving Poster (Dukakis)

Brochure

Delfield Refrigeration Parts Diagram - Part Numbers, Evaporator Coil & Valves

Exploded parts

Ford AOD Transmission Oil Circuit Diagram - Park (Closed Throttle) P Range

Schematic

1984-87 Ford ATC Vacuum Diagram - Grand Marquis, Town Car, Crown Victoria

Vacuum routing

Ford jack usage and stowage label with caution notes and 10-step jacking instructions

Service procedure

Police Siren Control Head Wiring Label - Pinout, DIP Switch & Output Ratings

Fuse chart

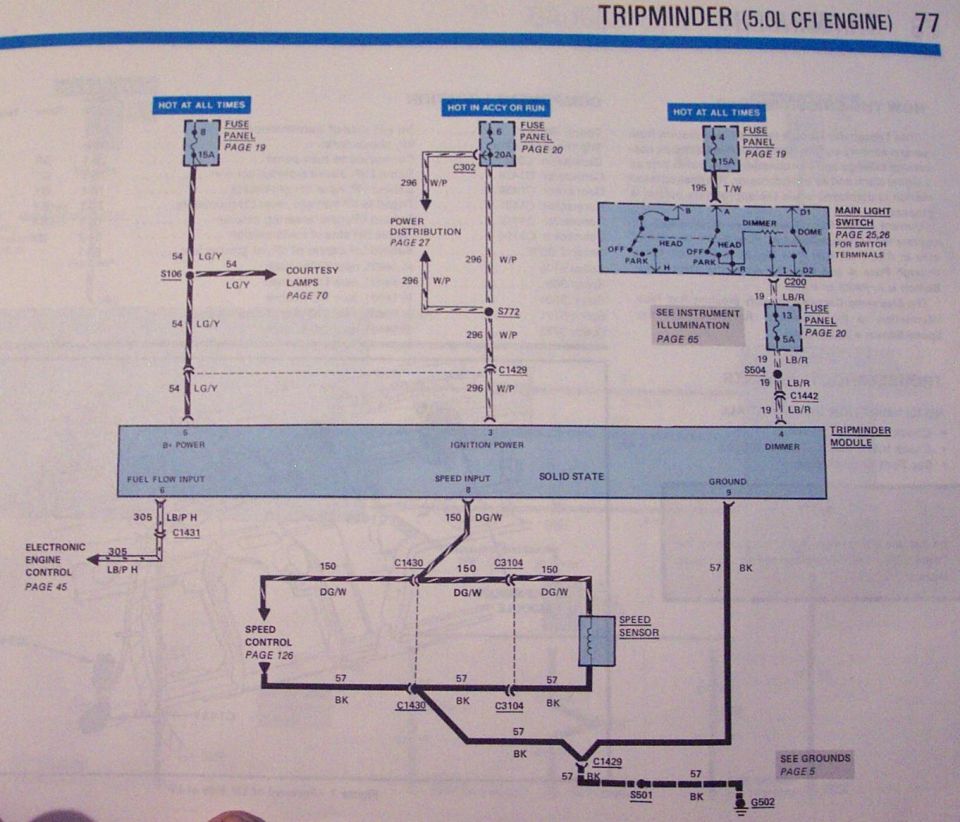

Wiring diagram for the 5.0L CFI Tripminder circuit showing fuse panels, ignition power, speed sensor and color-coded wires.

Part of 1983-1991 Ford LTD Crown Victoria Wiring Diagrams

AI caption May 2005 · Photo 112 of 472

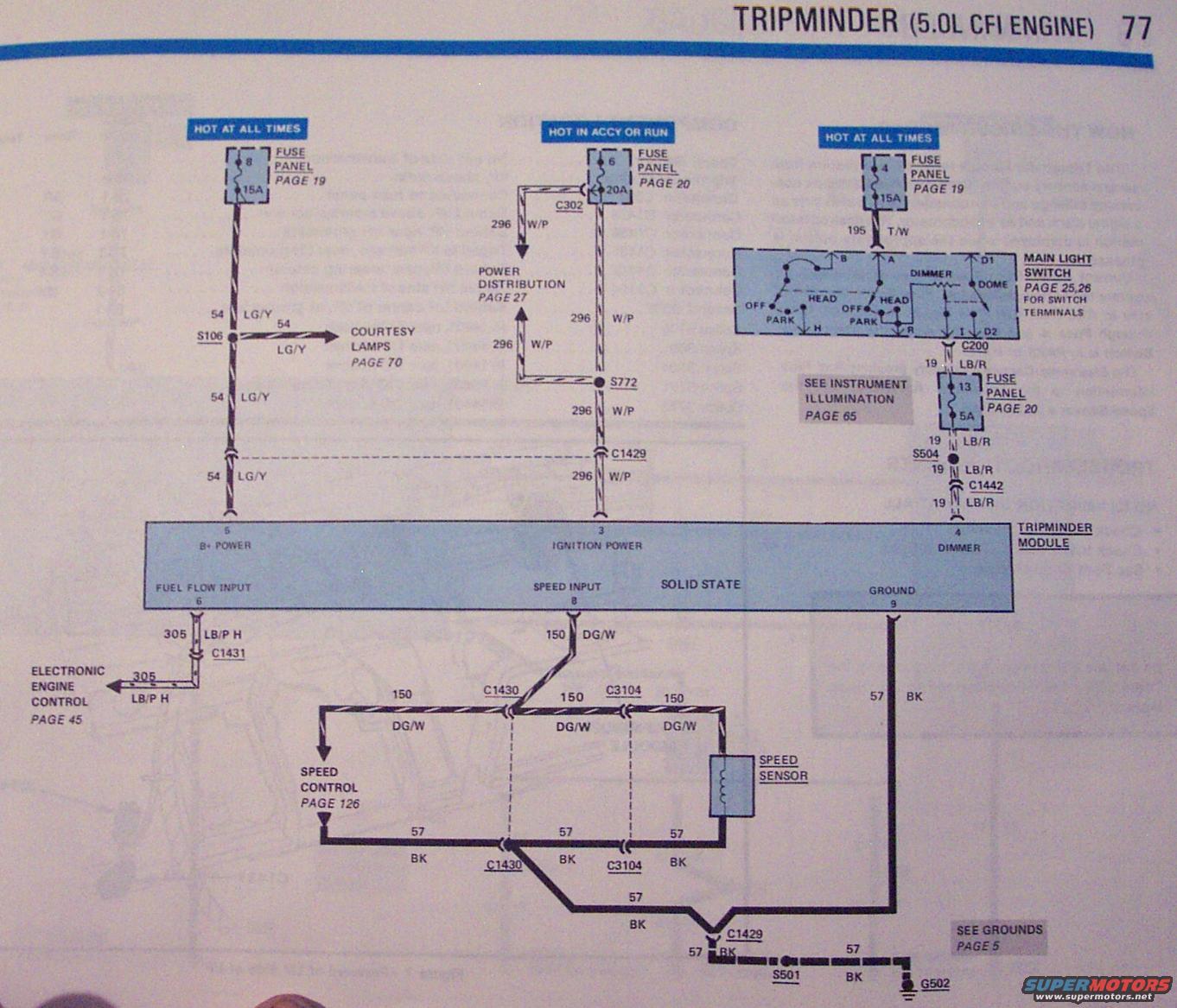

This is page 77 of a Ford Electrical and Vacuum Troubleshooting Manual (EVTM) showing the wiring diagram for the Tripminder trip computer as used with the 5.0L CFI engine. The diagram shows three power feeds to the solid-state Tripminder module: B+ power (pin 5) from fuse 8 (15A, hot at all times) via circuit 54 LG/Y through splice S106 (shared with the courtesy lamps, page 70); ignition power (pin 3) from fuse 6 (20A, hot in accessory or run) via circuit 296 W/P through connector C302, splice S772 and connector C1429; and dimmer input (pin 4) from fuse 4 (15A, hot at all times) via circuit 195 T/W through the main light switch (pages 25-26), then circuit 19 LB/R through fuse 13 (5A), splice S504 and connector C1442. Pin 6 (fuel flow input) connects via circuit 305 LB/P H through C1431 to the Electronic Engine Control (page 45). Pin 8 (speed input) uses circuit 150 DG/W through C1430 and C3104 to the speed sensor, with a branch to speed control (page 126). Pin 9 grounds via circuit 57 BK through C1429 and splice S501 to ground G502. Cross-references to instrument illumination (page 65), power distribution (page 27) and grounds (page 5) are included.
