What is the cylinder numbering on the Ford 4.6L engine?

Per the diagram, with the front of the engine at the bottom, the left bank cylinders are 1, 2, 3, 4 from front to rear and the right bank cylinders are 5, 6, 7, 8 from front to rear. This layout is the same for 1991-1993, 1994-1997, and 1998 and later.

Where is cylinder 1 on the 4.6L engine?

Cylinder 1 is the frontmost cylinder on the left bank (highlighted in the diagram).

What are the coil pack terminal locations on a 1991-1993 4.6L?

Left coil pack: terminals 1 and 3 on the top row, 6 and 5 on the bottom row. Right coil pack: terminals 7 and 8 on top, 4 and 2 on the bottom.

What are the coil pack terminal locations on a 1994-1997 4.6L?

Left coil pack: terminals 6 and 3 on the top row, 1 and 5 on the bottom row. Right coil pack: terminals 7 and 2 on top, 4 and 8 on the bottom.

Does the diagram show coil packs for 1998 and later 4.6L engines?

No. The 1998 and later diagram shows only the cylinder locations (4-3-2-1 left bank, 8-7-6-5 right bank) with no separate coil pack terminal layout pictured.

Home/ Registry/ Ford/ Crown Victoria/ 1998-2011/ “texasvic”/ Photo supermotors.net/registry/media/305445

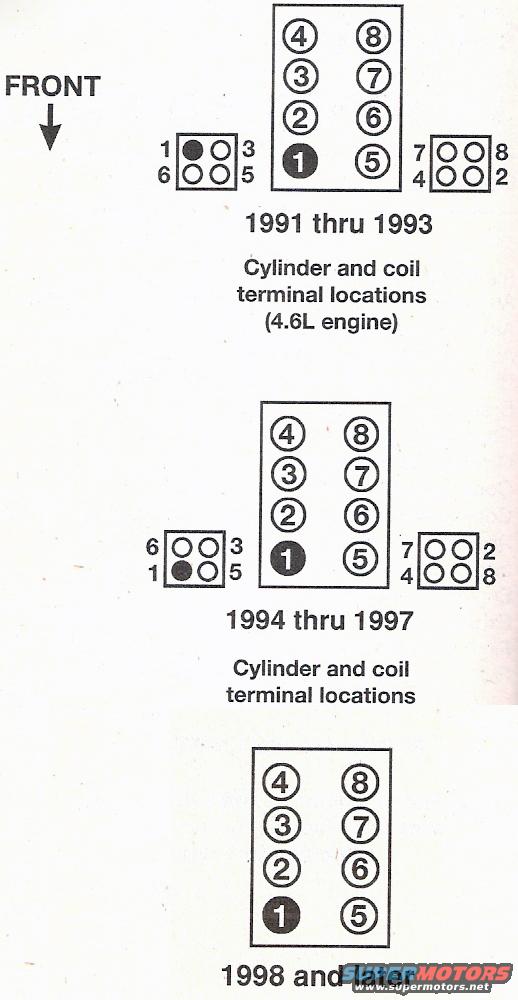

Ford 4.6L V8 Cylinder Numbering & Coil Pack Terminal Diagram 1991-1998+

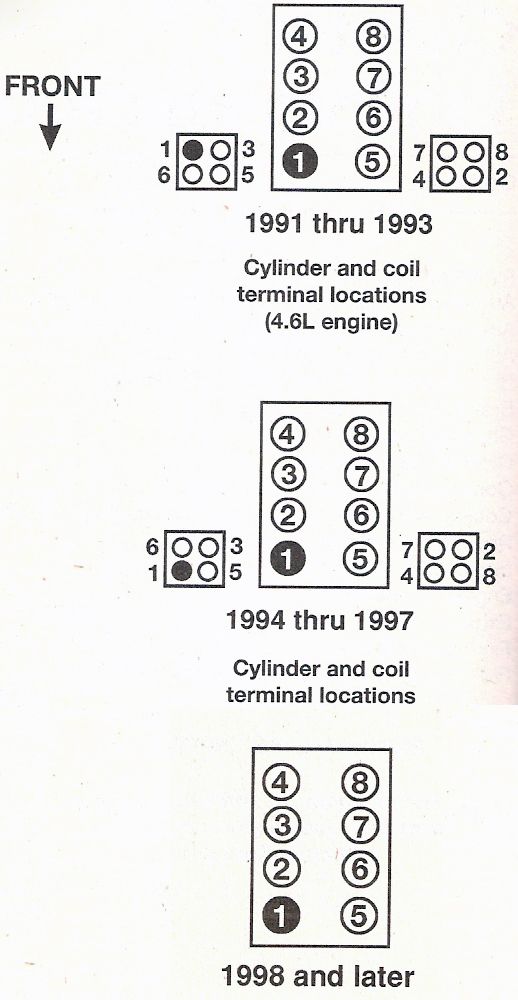

Diagram of cylinder and coil terminal locations for 4.6L engine, 1991-1997

‹ ›

Reference diagram showing cylinder and coil pack terminal locations and front orientation for a 4.6L engine across model years.

AI caption March 2006 · Photo 575 of 688

This document is a schematic diagram showing cylinder numbering and ignition coil pack terminal locations for the Ford 4.6L V8 engine across three production spans: 1991 thru 1993, 1994 thru 1997, and 1998 and later. A 'FRONT' arrow orients the diagrams, indicating the front of the vehicle. In all three diagrams, the cylinder numbering is identical: the left (driver's side) bank is numbered 1-2-3-4 from front to rear, and the right (passenger side) bank is numbered 5-6-7-8 from front to rear, with cylinder 1 highlighted. The 1991-1993 diagram shows two coil packs: the left pack terminals arranged 1 and 3 on top, 6 and 5 on the bottom; the right pack terminals arranged 7 and 8 on top, 4 and 2 on the bottom. The 1994-1997 diagram shows revised coil pack terminal arrangements: left pack 6 and 3 on top, 1 and 5 on the bottom; right pack 7 and 2 on top, 4 and 8 on the bottom. The 1998 and later diagram shows only cylinder locations with no coil packs pictured (coil-on-plug design implied by absence). This is useful for spark plug wire routing and cylinder identification during diagnosis.
