What fuse powers the data link / monitor connector circuit?

Fuse 13, a 15A fuse in the fuse box, feeds the circuit via a White (W) wire.

What wire colors connect the Engine Control Module to the data link connector?

The ECM connects with a Violet/Green (V/G) wire and a Blue/Yellow (Bl/Y) wire, passing through connector E32/F01 pins 6 and 2.

Which pins on the monitor connector (F03) are used for the RWAL control module?

Pin 3 (V/R, Violet/Red), pin 7 (W/B, White/Black), and pin 8 (O, Orange) carry the RWAL Control Module signals.

What pins does the transmission control module use on this diagram?

On 4 A/T models, the Transmission Control Module uses pin 4 (V, Violet) and pin 10 (Bl/O, Blue/Orange).

How is the data link connector grounded?

Black (B) wires from F02 pin 6 and F03 pin 5 join and run through connector F01/E32 pin 5 to two chassis ground points, numbered 10 and 9.

Home/ Registry/ Suzuki/ Samurai/ 1986-1995/ “Little Blue”/ Photo supermotors.net/registry/media/420647

Data Link & Monitor Connector Wiring Diagram - ECM, RWAL & A/T Circuits

Wiring diagram of data link and monitor connectors to ECM, RWAL and transmission modules

‹ ›

Reference · 1986-1995 SamuraiAll 73 wiring diagrams

Suzuki Samurai ECM Power & Ground Wiring Diagram - Main Relay, Fuses, Pinout

Suzuki Samurai Dome/Room Light Wiring Diagram - Door Switches & 15A Fuse

Suzuki Samurai Rear Defogger Wiring Diagram - Defroster Switch & Fuse Circuit

Data Link & Monitor Connector Wiring Diagram - ECM, RWAL & A/T Circuits

Suzuki Samurai Cruise Control Wiring Diagram - Shift & Clutch Switch Circuits

Suzuki Samurai Cruise Control Wiring Diagram - Actuator, Switches & Fuses

Suzuki Samurai Starting/Cranking Circuit Wiring Diagram - M/T & A/T Starter

Suzuki Samurai Tail Light & Clearance Lamp Wiring Diagram - Rear Lights, Grounds

Connector A1: C204 pinout with wire color, circuit and swap notes for pins 1-18

Suzuki Samurai 8v EFI Swap ECM Connector C2 Pinout - Wire Colors & Circuits

Suzuki Sidekick/Geo Tracker 8v EFI Swap into Samurai - ECM C1 Pinout & Wiring

Engine control module wiring diagram with main relay, fuel pump relay, heated oxygen sensor and IAC valve

73wiring diagrams1986-1995 Suzuki Samurai More reference

Schematic

1986 Suzuki Samurai Fuse Box Diagram - Main Fuse Block & Fuse Panel Layout

Fuse chart

6th annual Pine Barrens Cleanup flyer for Wharton State Forest, October 28, 2007

Brochure

Suzuki Samurai 8v EFI Swap Wiring - Pin Colors & 8A-20 Diagram Index (Pg 4)

Manual page

Suzuki Samurai Mitsubishi 12V Starter Data Plate - M3T41781 / 31100-83030

Spec plate

Vacuum routing

1987 Suzuki Samurai Fabrication Template - Hand-Drawn Full-Size Layout w/ Dims

Blueprint

Photo of Purple Compact Car Front Wheel & Fender (Misfiled Samurai Doc Scan)

Exploded parts

Trail Tough Samurai Twisted T/T shift shaft installation instructions beside bagged shift shafts and gasket

Service procedure

Factory wiring diagram routing the data link and monitor connectors to the engine, RWAL and transmission control modules with wire codes.

Part of 1986-1995 Suzuki Samurai Wiring Diagrams

AI caption August 2006 · Photo 16 of 86

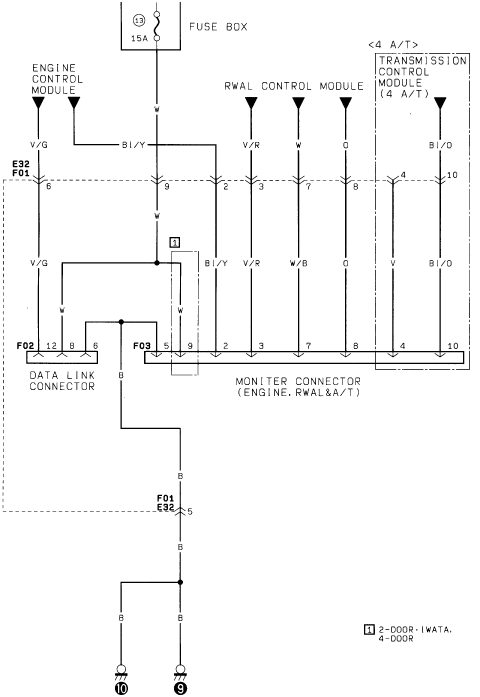

This wiring diagram shows the Data Link Connector (F02) and Monitor Connector (F03, labeled 'MONITER CONNECTOR (ENGINE, RWAL & A/T)') circuits. Power comes from fuse 13 (15A) in the fuse box via a White (W) wire. The Engine Control Module connects through connector E32/F01 with Violet/Green (V/G, pin 6) and Blue/Yellow (Bl/Y, pin 2) wires. The RWAL (rear-wheel antilock) Control Module connects via Violet/Red (V/R, pin 3), White (W, pin 7, becoming White/Black W/B), and Orange (O, pin 8) wires. On 4-speed automatic transmission (4 A/T) models, the Transmission Control Module connects with Violet (V, pin 4) and Blue/Orange (Bl/O, pin 10) wires. The Data Link Connector F02 uses pins 12 (V/G), 8 (W), and 6 (B/ground), while the Monitor Connector F03 uses pins 5, 9, 2, 3, 7, 8, 4, and 10. Ground return is via Black (B) wires through connector F01/E32 pin 5 to two chassis ground points (10 and 9). A footnote notes variation '[1] 2-DOOR: IWATA, 4-DOOR'. Readers can trace pinouts, wire colors, and connector locations for diagnostic connector troubleshooting.
