What fuses power the combination meter indicator lamps in this diagram?

Two 15A fuses in the fuse box, positions 12 and 18. Fuse 12 feeds a W/Bl wire through connector E37/G06 (pin 13); fuse 18 feeds a B/W wire through connector E38/G05 (pin 8).

Which indicator lamps are shown in the combination meter?

Five lamps: BEAM, POWER, OD OFF, CRUISE, and 4WD.

How does the 4WD indicator lamp circuit work?

The 4WD lamp connects via an O/B (orange/black) wire through connectors G09, G06/E37, E54/C10, and C08/P01 to the P03 4WD switch. When the switch is ON, the circuit completes to ground through black (B) wires at ground points 10 and 9.

What wire color goes to the cruise control unit?

A Gr (gray) wire from pin 20 runs to the cruise control unit; the CRUISE lamp side uses a V/R (violet/red) wire that also routes through the E42 ignition switch.

What do the legend symbols [1], [2], [3], and [4] mean?

[1] = A/T (automatic transmission), [2] = M/T (manual transmission), [3] = IWATA, [4] = CAMI, indicating pin/connector differences by transmission type and build plant.

Home/ Registry/ Suzuki/ Samurai/ 1986-1995/ “Little Blue”/ Photo supermotors.net/registry/media/420677

Suzuki Indicator Lamp Wiring Diagram - Combination Meter BEAM, OD OFF, 4WD

Wiring diagram: combination meter indicator lamps, transmission control module, cruise control unit and 4WD switch

‹ ›

Reference · 1986-1995 SamuraiAll 73 wiring diagrams

Suzuki Clearance & Side Marker Lamp Wiring Diagram - Fuse 13 15A, E40 Switch

Suzuki Samurai IAT Sensor Wiring Diagram - ECM B15/B21 Terminals, Gr/Y Wire

Suzuki Samurai Turn Signal & DRL Indicator Lamp Wiring Diagram - Combination Meter

Suzuki Indicator Lamp Wiring Diagram - Combination Meter BEAM, OD OFF, 4WD

Suzuki Samurai Ignition System Wiring Diagram - Coil, Ignitor, ECM, Cam Sensor

Suzuki Samurai A/C Amplifier & Heater Illumination Wiring Diagram (HVAC)

Suzuki HVAC Wiring Diagram - Blower Motor, Blower Switch & A/C Circuit

Suzuki Samurai A/C Wiring Diagram - Compressor, Condenser Fan Relay & Amplifier

Connector A1: C204 pinout with wire color, circuit and swap notes for pins 1-18

Suzuki Samurai 8v EFI Swap ECM Connector C2 Pinout - Wire Colors & Circuits

Suzuki Sidekick/Geo Tracker 8v EFI Swap into Samurai - ECM C1 Pinout & Wiring

Engine control module wiring diagram with main relay, fuel pump relay, heated oxygen sensor and IAC valve

73wiring diagrams1986-1995 Suzuki Samurai More reference

Schematic

1986 Suzuki Samurai Fuse Box Diagram - Main Fuse Block & Fuse Panel Layout

Fuse chart

6th annual Pine Barrens Cleanup flyer for Wharton State Forest, October 28, 2007

Brochure

Suzuki Samurai 8v EFI Swap Wiring - Pin Colors & 8A-20 Diagram Index (Pg 4)

Manual page

Suzuki Samurai Mitsubishi 12V Starter Data Plate - M3T41781 / 31100-83030

Spec plate

Vacuum routing

1987 Suzuki Samurai Fabrication Template - Hand-Drawn Full-Size Layout w/ Dims

Blueprint

Photo of Purple Compact Car Front Wheel & Fender (Misfiled Samurai Doc Scan)

Exploded parts

Trail Tough Samurai Twisted T/T shift shaft installation instructions beside bagged shift shafts and gasket

Service procedure

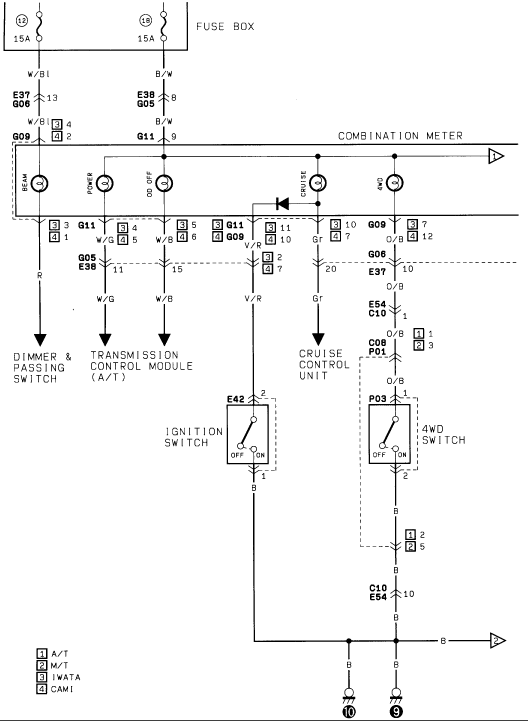

Wiring diagram showing combination meter indicator lamps wired to the transmission control module, cruise control unit and 4WD switch.

Part of 1986-1995 Suzuki Samurai Wiring Diagrams

AI caption August 2006 · Photo 46 of 86

This scanned wiring diagram shows the indicator lamp circuits within the combination meter (instrument cluster) of a Suzuki vehicle. Power comes from two 15A fuses in the fuse box (positions 12 and 18) through W/Bl and B/W wires and connectors E37/G06, E38/G05, G09, and G11 to five indicator lamps: BEAM (high beam), POWER, OD OFF (overdrive off), CRUISE, and 4WD. The BEAM lamp grounds through the dimmer & passing switch via a red (R) wire; the POWER and OD OFF lamps connect via W/G and W/B wires to the Transmission Control Module (automatic transmission); the CRUISE lamp routes through a V/R wire, the E42 ignition switch, and a Gr wire to the cruise control unit; the 4WD lamp connects through O/B wiring, connectors E54/C10 and C08/P01, to the P03 4WD switch, then to ground via black (B) wires at ground points 10 and 9. A legend distinguishes circuit variations: [1] A/T, [2] M/T, [3] IWATA, [4] CAMI (build plant/transmission variants). Readers can learn fuse ratings, wire colors, connector identities and pin numbers, and the switching/ground path for each dash indicator lamp.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What fuses power the combination meter indicator lamps in this diagram?: Two 15A fuses in the fuse box, positions 12 and 18. Fuse 12 feeds a W/Bl wire through connector E37/G06 (pin 13); fuse 18 feeds a B/W wire through connector E38/G05 (pin 8).
Which indicator lamps are shown in the combination meter?: Five lamps: BEAM, POWER, OD OFF, CRUISE, and 4WD.
How does the 4WD indicator lamp circuit work?: The 4WD lamp connects via an O/B (orange/black) wire through connectors G09, G06/E37, E54/C10, and C08/P01 to the P03 4WD switch. When the switch is ON, the circuit completes to ground through black (B) wires at ground points 10 and 9.
What wire color goes to the cruise control unit?: A Gr (gray) wire from pin 20 runs to the cruise control unit; the CRUISE lamp side uses a V/R (violet/red) wire that also routes through the E42 ignition switch.
What do the legend symbols [1], [2], [3], and [4] mean?: [1] = A/T (automatic transmission), [2] = M/T (manual transmission), [3] = IWATA, [4] = CAMI, indicating pin/connector differences by transmission type and build plant.
