Which fuses power the combination meter circuit?

Fuse position 13 (15A), which feeds the lighting switch for illumination, and fuse position 18 (15A), which feeds the combination meter directly on a B/W wire to connector G11 pin 9.

What gauges and components are inside the combination meter?

The illumination lamp (ILL), tachometer, temperature gauge, vehicle speed sensor, and fuel gauge.

What wire color carries the fuel gauge sender signal?

Y/R (yellow/red), running through connectors G02/L02, L18/M07 and M10 pin 2 to the fuel level gauge sender, with the sender grounded via a B (black) wire at ground point 11.

Where does the vehicle speed sensor signal go?

The speed sensor output leaves the combination meter on a Y (yellow) wire and goes to pin 22 of the engine control module.

What do the numbered legend boxes 1-4 mean on this diagram?

They indicate build variants: [1] 2-Door CAMI, [2] 2-Door IWATA and 4-Door, [3] IWATA, [4] CAMI. Connector pin numbers differ depending on the variant.

Home/ Registry/ Suzuki/ Samurai/ 1986-1995/ “Little Blue”/ Photo supermotors.net/registry/media/420685

Suzuki Combination Meter Wiring Diagram - Gauges, Speed Sensor & Fuel Gauge

Combination meter wiring diagram with tacho, temp, fuel gauges and ECM connections

‹ ›

Reference · 1986-1995 SamuraiAll 73 wiring diagrams

Suzuki Samurai Power Distribution Wiring Diagram - Main Fuse, Battery, Fuses

Suzuki Power Mirror Wiring Diagram - Mirror Switch, Motors & 20A Fuse Circuit

Suzuki Samurai/Sidekick Combination Meter Wiring Diagram - Gauges & Fuel Level

Suzuki Combination Meter Wiring Diagram - Gauges, Speed Sensor & Fuel Gauge

Suzuki Samurai MAF Sensor Wiring Diagram - ECM Pin B8, Wire Colors & Coupler

Suzuki Clearance & Side Marker Light Wiring Diagram - 15A Fuse 13 Circuit

Suzuki Samurai Tail & License Plate Light Wiring Diagram - Rear Lamp Circuit

Suzuki Samurai Tail, Side Marker & License Plate Light Wiring Diagram

Connector A1: C204 pinout with wire color, circuit and swap notes for pins 1-18

Suzuki Samurai 8v EFI Swap ECM Connector C2 Pinout - Wire Colors & Circuits

Suzuki Sidekick/Geo Tracker 8v EFI Swap into Samurai - ECM C1 Pinout & Wiring

Engine control module wiring diagram with main relay, fuel pump relay, heated oxygen sensor and IAC valve

73wiring diagrams1986-1995 Suzuki Samurai More reference

Schematic

1986 Suzuki Samurai Fuse Box Diagram - Main Fuse Block & Fuse Panel Layout

Fuse chart

6th annual Pine Barrens Cleanup flyer for Wharton State Forest, October 28, 2007

Brochure

Suzuki Samurai 8v EFI Swap Wiring - Pin Colors & 8A-20 Diagram Index (Pg 4)

Manual page

Suzuki Samurai Mitsubishi 12V Starter Data Plate - M3T41781 / 31100-83030

Spec plate

Vacuum routing

1987 Suzuki Samurai Fabrication Template - Hand-Drawn Full-Size Layout w/ Dims

Blueprint

Photo of Purple Compact Car Front Wheel & Fender (Misfiled Samurai Doc Scan)

Exploded parts

Trail Tough Samurai Twisted T/T shift shaft installation instructions beside bagged shift shafts and gasket

Service procedure

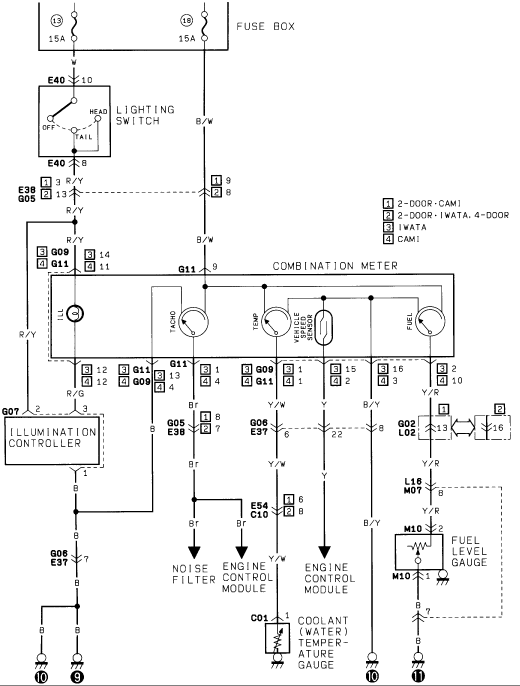

Wiring diagram of the combination meter showing tachometer, temperature, speedometer and fuel circuits tied to the engine control module.

Part of 1986-1995 Suzuki Samurai Wiring Diagrams

AI caption August 2006 · Photo 54 of 86

This document is a scanned wiring diagram for the combination meter (instrument cluster) circuit of a Suzuki vehicle. It shows power feeding from fuse box positions 13 and 15A and 18 (15A) through the lighting switch (OFF/TAIL/HEAD positions, connector E40) and directly to the combination meter connector G11. The combination meter contains the illumination lamp, tachometer, temperature gauge, vehicle speed sensor, and fuel gauge. A legend distinguishes four build variants: [1] 2-Door CAMI, [2] 2-Door IWATA and 4-Door, [3] IWATA, and [4] CAMI, with different connector pin assignments for each. Downstream circuits run through connectors G07 to the illumination controller, G05/E38 to a noise filter and the engine control module (tachometer signal, Br wire), G06/E37 and E54/C10 to the coolant (water) temperature gauge sender (Y/W wire), the vehicle speed sensor output to the ECM (Y wire, pin 22), and G02/L02, L18/M07, and M10 to the fuel level gauge sender (Y/R wire). Wire colors shown include W, B/W, R/Y, R/G, B, Br, Y/W, Y, B/Y, and Y/R, and ground points are numbered 9, 10, and 11. Useful for diagnosing gauge, speed sensor, and cluster illumination faults.

Is this accurate? Sign in to help verify it.

Frequently asked questions

Which fuses power the combination meter circuit?: Fuse position 13 (15A), which feeds the lighting switch for illumination, and fuse position 18 (15A), which feeds the combination meter directly on a B/W wire to connector G11 pin 9.
What gauges and components are inside the combination meter?: The illumination lamp (ILL), tachometer, temperature gauge, vehicle speed sensor, and fuel gauge.
What wire color carries the fuel gauge sender signal?: Y/R (yellow/red), running through connectors G02/L02, L18/M07 and M10 pin 2 to the fuel level gauge sender, with the sender grounded via a B (black) wire at ground point 11.
Where does the vehicle speed sensor signal go?: The speed sensor output leaves the combination meter on a Y (yellow) wire and goes to pin 22 of the engine control module.
What do the numbered legend boxes 1-4 mean on this diagram?: They indicate build variants: [1] 2-Door CAMI, [2] 2-Door IWATA and 4-Door, [3] IWATA, [4] CAMI. Connector pin numbers differ depending on the variant.
