What PCM pins do the DIS signals connect to?

Per the diagram: CID goes to PCM pin 24, PIP to pin 56, SPOUT to pin 36, IGN GND to pin 16, and IDM to pin 4.

What are the DIS module pin assignments?

Pins 1-6: pin 1 = VBAT 1 (5), pin 2 = CMP 1 (51), pin 4 = PIP 1 (32), pin 5 = SPOUT 1 (35), pin 6 = RESET 1 (54). Pins 7-12: pin 12 = IDM 1 (4), pin 11 = C21 (18), pin 9 = C31 (6), pin 8 = C11 (3), pin 7 = IGN GND 1 (2).

How is the ignition coil pack wired?

The coil connector shows terminals 1-4 with wires labeled C1C (12), C3C (13), C2C (14), and VBAT C (7).

From which perspective are the connectors drawn?

A note at the bottom states connectors are shown looking into the wiring harness.

Where does the SPOUT in-line connector fit in the circuit?

The SPOUT in-line connector (2) is shown in the SPOUT signal line between the DIS module and PCM pin 36.

Home/ Registry/ Ford/ Taurus/ 1992-1995/ “Taurus SHO”/ Photo supermotors.net/registry/media/545141

Ford DIS Ignition Connector Pin-Outs - Crank/Cam Sensor, Coil & Module Wiring

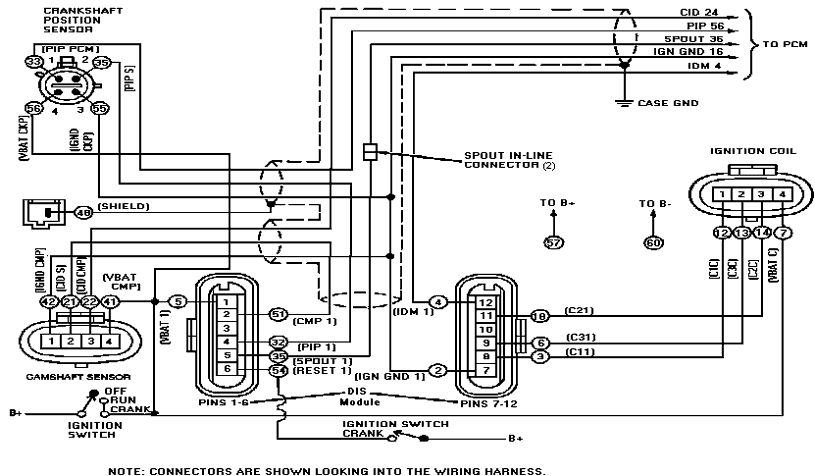

DIS ignition wiring diagram with connector pinouts, ignition coil and PCM connections

‹ ›

Wiring diagram of a distributorless ignition system showing harness connectors, ignition coil and PCM wiring.

AI caption July 2007 · Photo 740 of 1028

This document is a wiring/connector pin-out diagram for a Ford DIS (Distributorless Ignition System). It shows the crankshaft position sensor (pins 33, 1, 2, 39, 56, 4, 3, 55 with PIP PCM, PIP S, VBAT CKP, and IGND CKP labels), the camshaft sensor (pins 42, 43, 44, 41 with IGND CMP, CID S, and VBAT CMP labels), the ignition coil pack (a 4-terminal connector with C1C, C3C, C2C, and VBAT C wires on pins 12, 13, 14, 7), and the 12-pin DIS module connector split into pins 1-6 (VBAT 1, CMP 1, PIP 1, SPOUT 1, RESET 1) and pins 7-12 (IDM 1, C21, C31, C11, IGN GND 1). Signals routed to the PCM are labeled CID 24, PIP 56, SPOUT 36, IGN GND 16, and IDM 4, along with a case ground and a SPOUT in-line connector (2). Power feeds come from B+ through the ignition switch (OFF/RUN/CRANK positions), plus TO B+ (57) and TO B- (60) points. A footnote states connectors are shown looking into the wiring harness. Useful for diagnosing no-spark or sensor circuit faults on DIS-equipped Fords.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What PCM pins do the DIS signals connect to?: Per the diagram: CID goes to PCM pin 24, PIP to pin 56, SPOUT to pin 36, IGN GND to pin 16, and IDM to pin 4.
What are the DIS module pin assignments?: Pins 1-6: pin 1 = VBAT 1 (5), pin 2 = CMP 1 (51), pin 4 = PIP 1 (32), pin 5 = SPOUT 1 (35), pin 6 = RESET 1 (54). Pins 7-12: pin 12 = IDM 1 (4), pin 11 = C21 (18), pin 9 = C31 (6), pin 8 = C11 (3), pin 7 = IGN GND 1 (2).
How is the ignition coil pack wired?: The coil connector shows terminals 1-4 with wires labeled C1C (12), C3C (13), C2C (14), and VBAT C (7).
From which perspective are the connectors drawn?: A note at the bottom states connectors are shown looking into the wiring harness.
Where does the SPOUT in-line connector fit in the circuit?: The SPOUT in-line connector (2) is shown in the SPOUT signal line between the DIS module and PCM pin 36.
