What connector is shown in this diagram?

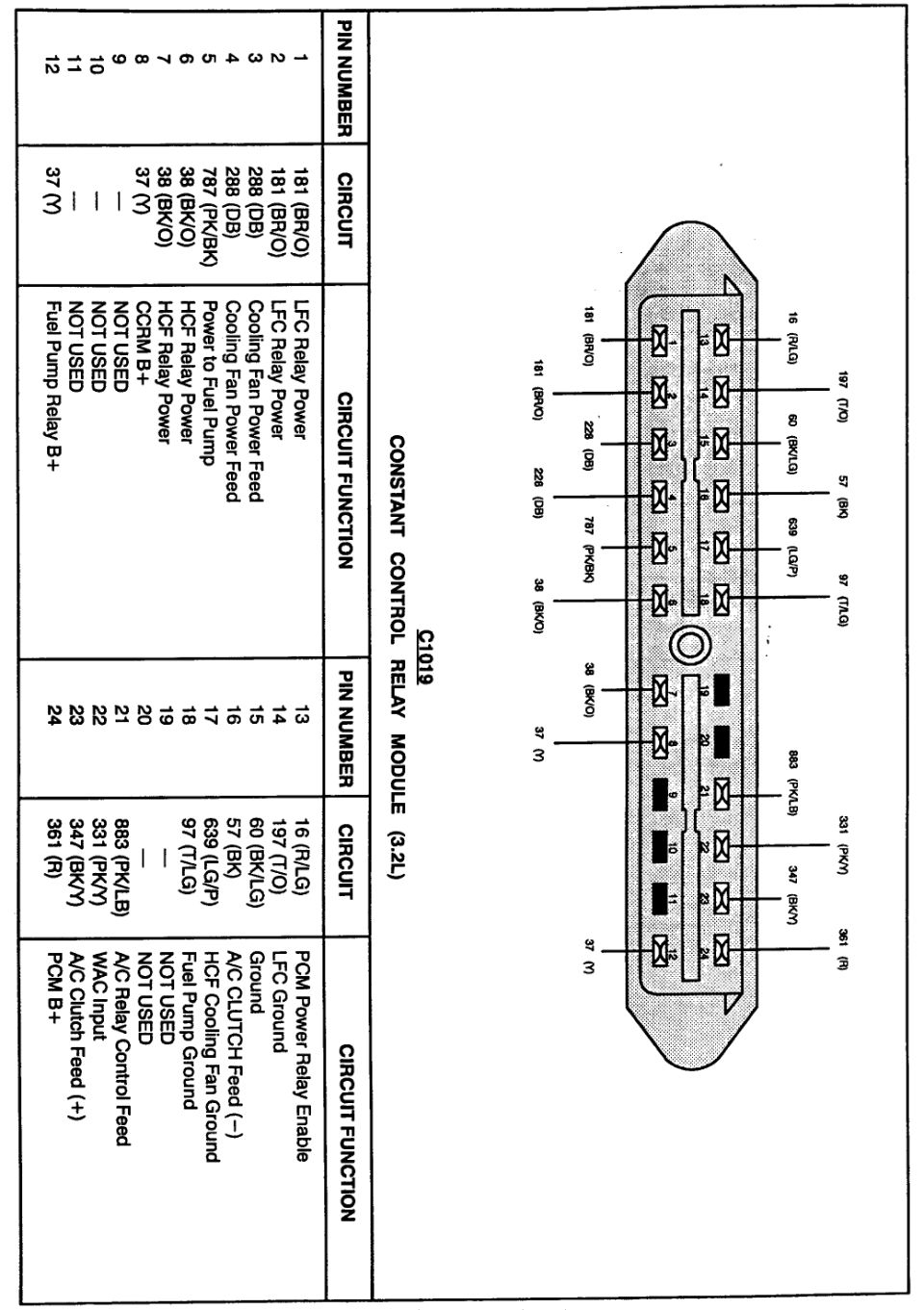

Connector C1019, the Constant Control Relay Module (CCRM) for the 3.2L engine, a 24-pin connector with pin numbers, circuit numbers, wire colors, and circuit functions.

Which CCRM pin powers the fuel pump?

Pin 5, circuit 787 (PK/BK), is 'Power to Fuel Pump.' Pin 12, circuit 37 (Y), is Fuel Pump Relay B+, and pin 18, circuit 97 (T/LG), is Fuel Pump Ground.

Which pins on the CCRM connector are not used?

Pins 9, 10, 11, 19, and 20 are listed as NOT USED.

What are the A/C-related pins on the CCRM?

Pin 16, circuit 57 (BK), is A/C Clutch Feed (−); pin 21, circuit 883 (PK/LB), is A/C Relay Control Feed; pin 22, circuit 331 (PK/Y), is WAC Input; pin 23, circuit 347 (BK/Y), is A/C Clutch Feed (+).

Which pin enables the PCM power relay?

Pin 13, circuit 16 (R/LG), is the PCM Power Relay Enable; pin 24, circuit 361 (R), is PCM B+.
