What vehicle and engine does this parts diagram cover?

It covers the air cleaner (8 cylinder, Ram Air) for the 1972 Torino with the 351-4V Cobra Jet engine, excluding California.

What is the Ford part number for the air filter element in this diagram?

The filter element is labeled with basic part number 9601.

What part number is shown for the heat shrouds on the exhaust manifolds?

Both heat shrouds are labeled 9A603.

What is the illustration reference number and source of this page?

Which hardware numbers are called out in the diagram?

Hardware callouts include 358871-S (MM-297-A), 33795-S (M-49), 384411-S(11-187-CF), ★55359-S, ★383595-S, and 34394-S (M-93-A).

Home/ Registry/ Ford/ Ranchero/ 1972-1976/ “GT”/ Photo supermotors.net/registry/media/560834

1972 Ford Torino 351-4V Cobra Jet Ram Air Cleaner Exploded Parts Diagram

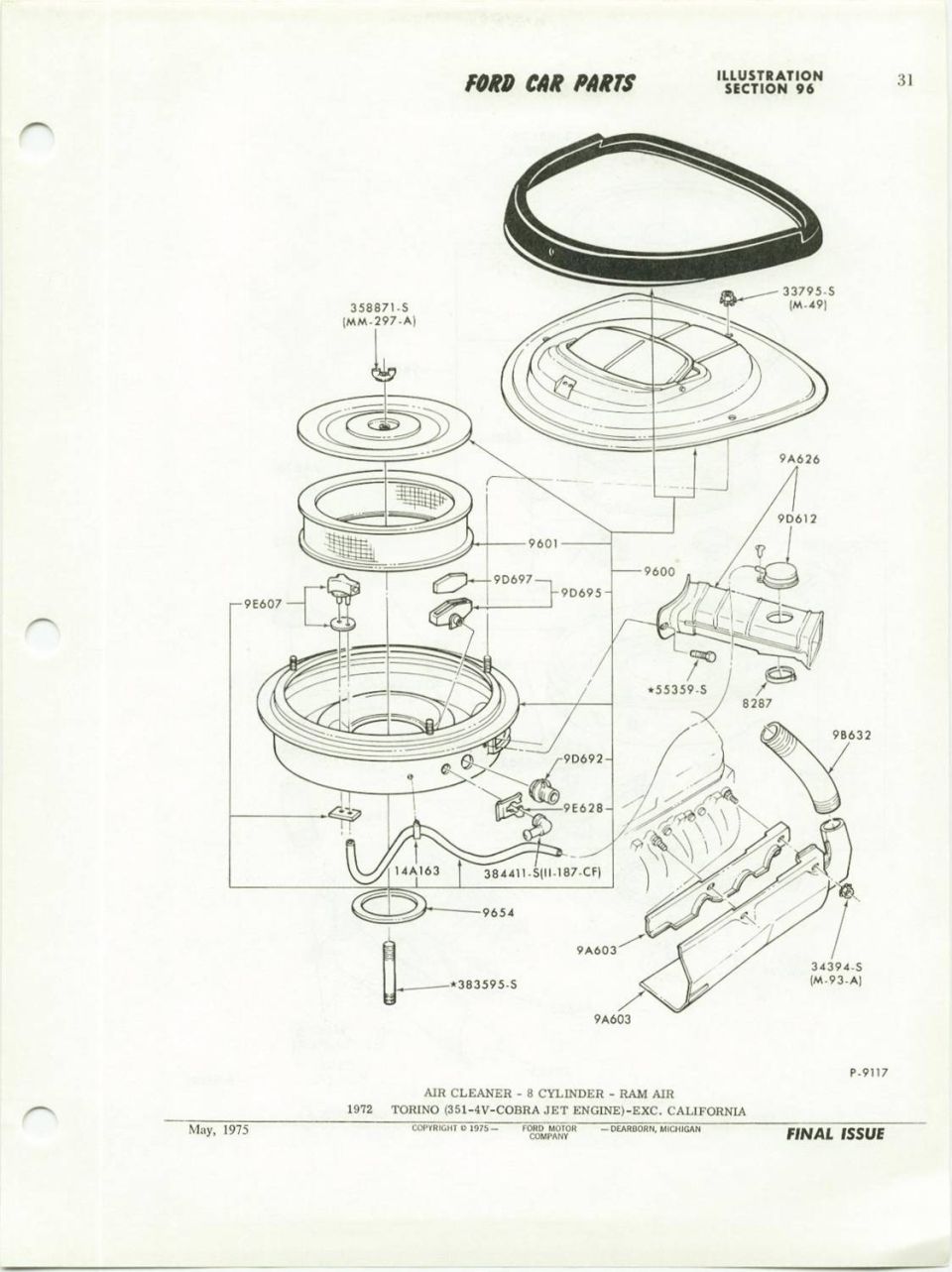

Ford exploded parts diagram of 8-cylinder Ram Air air cleaner assembly with part numbers

‹ ›

Exploded parts breakdown of a 1972 Ford Torino 8-cylinder Ram Air air cleaner assembly with labeled component part numbers.

AI caption September 2007 · Photo 64 of 194

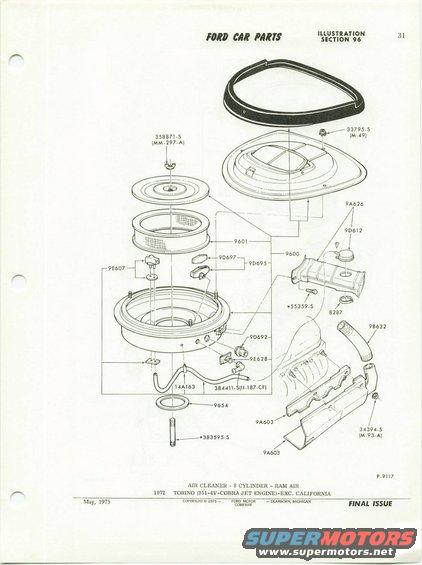

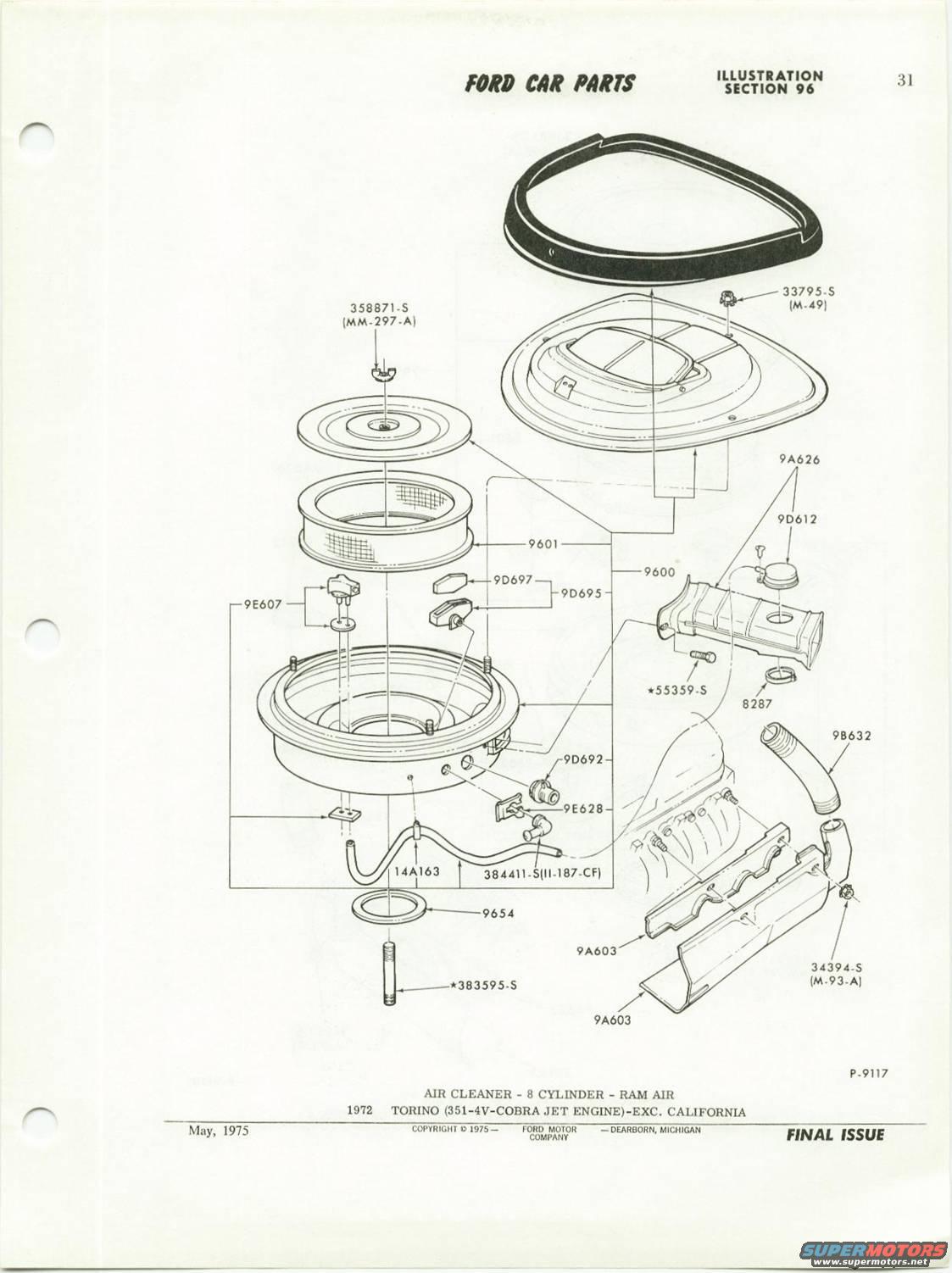

This is a scanned page (page 31, Illustration Section 96) from the Ford Car Parts catalog, dated May 1975 and marked "FINAL ISSUE," copyright 1975 Ford Motor Company, Dearborn, Michigan. It presents an exploded parts diagram (illustration P-9117) of the Air Cleaner assembly for 8-cylinder Ram Air applications on the 1972 Torino with the 351-4V Cobra Jet engine, excluding California. The drawing shows the hood-mounted ram air seal/scoop plenum, air cleaner lid, filter element, air cleaner body/tray, hoses, and heat shrouds, each keyed with Ford basic part numbers and hardware numbers. Callouts include the air cleaner assembly components 9600, 9601 (element), 9654 (gasket), 9E607, 9D697, 9D695, 9D692, 9E628, 9A626, 9D612, 9B632 (hot air hose), 9A603 (heat shrouds), 14A163, plus hardware/service numbers 358871-S (MM-297-A), 33795-S (M-49), 384411-S(11-187-CF), ★55359-S, ★383595-S, 34394-S (M-93-A), and 8287. A reader can use this page to identify part numbers and the assembly order/relationship of ram air induction components when restoring or servicing a 1972 Cobra Jet air cleaner system.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What vehicle and engine does this parts diagram cover?: It covers the air cleaner (8 cylinder, Ram Air) for the 1972 Torino with the 351-4V Cobra Jet engine, excluding California.
What is the Ford part number for the air filter element in this diagram?: The filter element is labeled with basic part number 9601.
What part number is shown for the heat shrouds on the exhaust manifolds?: Both heat shrouds are labeled 9A603.
What is the illustration reference number and source of this page?: The illustration is P-9117, from Ford Car Parts, Illustration Section 96, page 31, dated May 1975, marked FINAL ISSUE, copyright 1975 Ford Motor Company, Dearborn, Michigan.
Which hardware numbers are called out in the diagram?: Hardware callouts include 358871-S (MM-297-A), 33795-S (M-49), 384411-S(11-187-CF), ★55359-S, ★383595-S, and 34394-S (M-93-A).
