1972 Ford Torino 429 Ram Air Air Cleaner Exploded Parts Diagram - Section 96

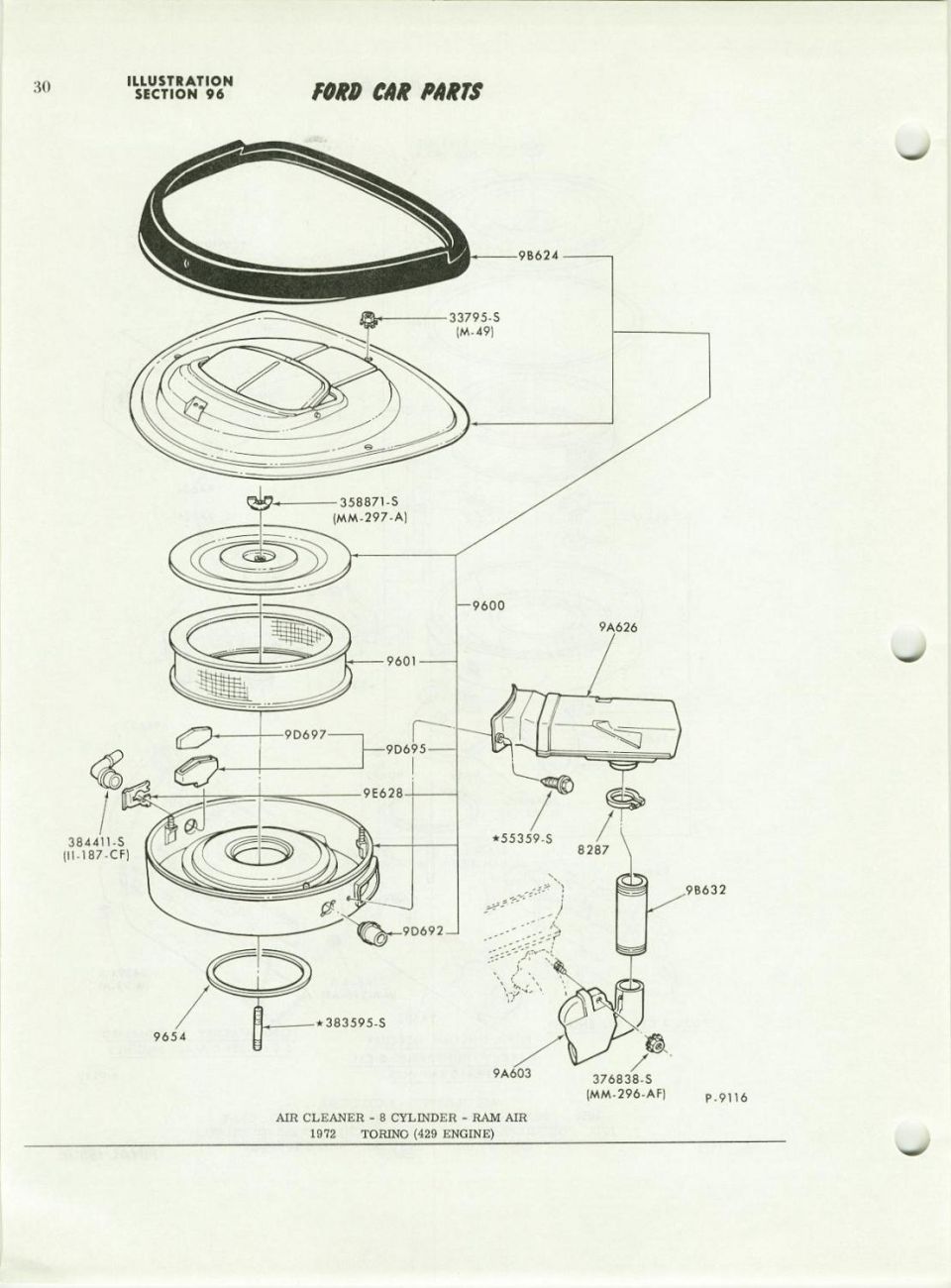

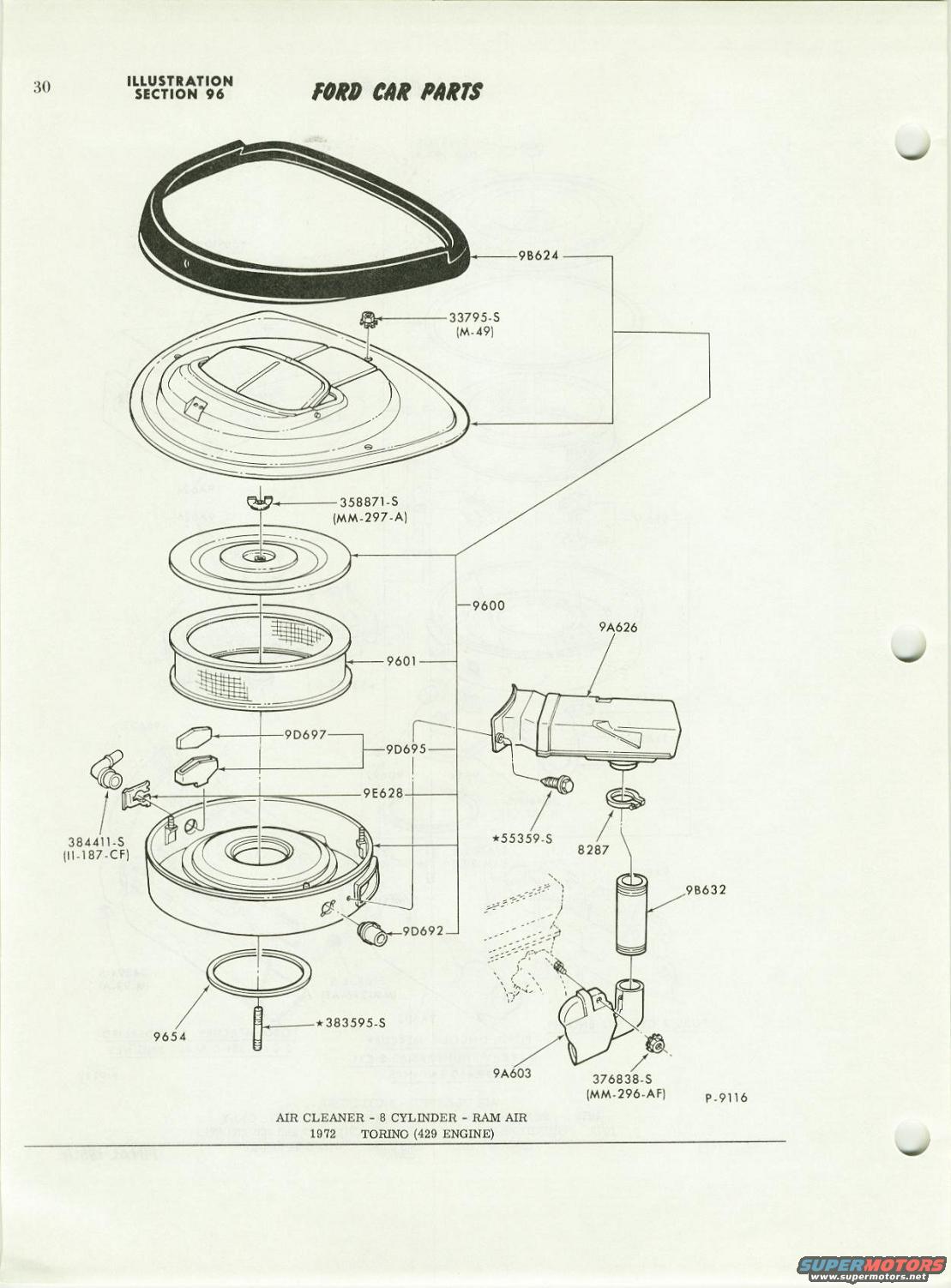

This is page 30 from the Ford Car Parts illustration catalog, Illustration Section 96. It shows an exploded parts diagram of the Ram Air air cleaner assembly for the 1972 Ford Torino equipped with the 429 cubic-inch 8-cylinder engine (plate P-9116). The drawing depicts the complete air cleaner stack in exploded view, including the ram air seal/gasket ring (9B624), the air cleaner lid/scoop tray, the air cleaner assembly (9600), the air filter element (9601), the air cleaner base with duct and valve components (9D697, 9D695, 9E628, 9D692), a snorkel/duct assembly (9A626), clamp (8287), crankcase ventilation filter (9B632), and PCV-related elbow/valve components (9A603). Hardware callouts include fasteners 33795-S (M-49), 358871-S (MM-297-A), 384411-S (11-187-CF), ★55359-S, ★383595-S, 376838-S (MM-296-AF), and gasket 9654. A reader can use this page to identify Ford basic part numbers and hardware standard part numbers for every component of the 429 Ram Air air cleaner system and see how the parts assemble relative to one another. The document itself states applicability: 1972 Torino, 429 engine, 8-cylinder Ram Air.
