What fuses power the turn signal and hazard circuits in this diagram?

Fuse 29 (15A, hot at all times) and Fuse 15 (10A, hot in run) in the I/P fuse panel; the park lamps are fed by a 15A Park Lamps fuse in the engine compartment fuse/relay panel.

What wire colors are used for the turn signal circuits?

LT GRN/WHT for the left front turn lamps, WHT/LT BLU for the right front turn lamps, LT GRN/ORG for the left rear turn lamp, and ORG/LT BLU for the right rear turn lamp, with BLK grounds.

Does this diagram cover both Taurus and Sable?

Yes. Several branches are labeled separately for TAURUS and SABLE, and one BRN wire is noted as '1996 SABLE ONLY'.

What lamps are shown in this exterior lighting diagram?

Left and right front park/turn lamps, front turn lamps, front marker lamps, a logo lamp, and left and right rear turn lamps, plus the instrument cluster left/right turn indicators.

Home/ Registry/ Ford/ Taurus/ 1996-1999/ “My Baby”/ Photo supermotors.net/registry/media/65273

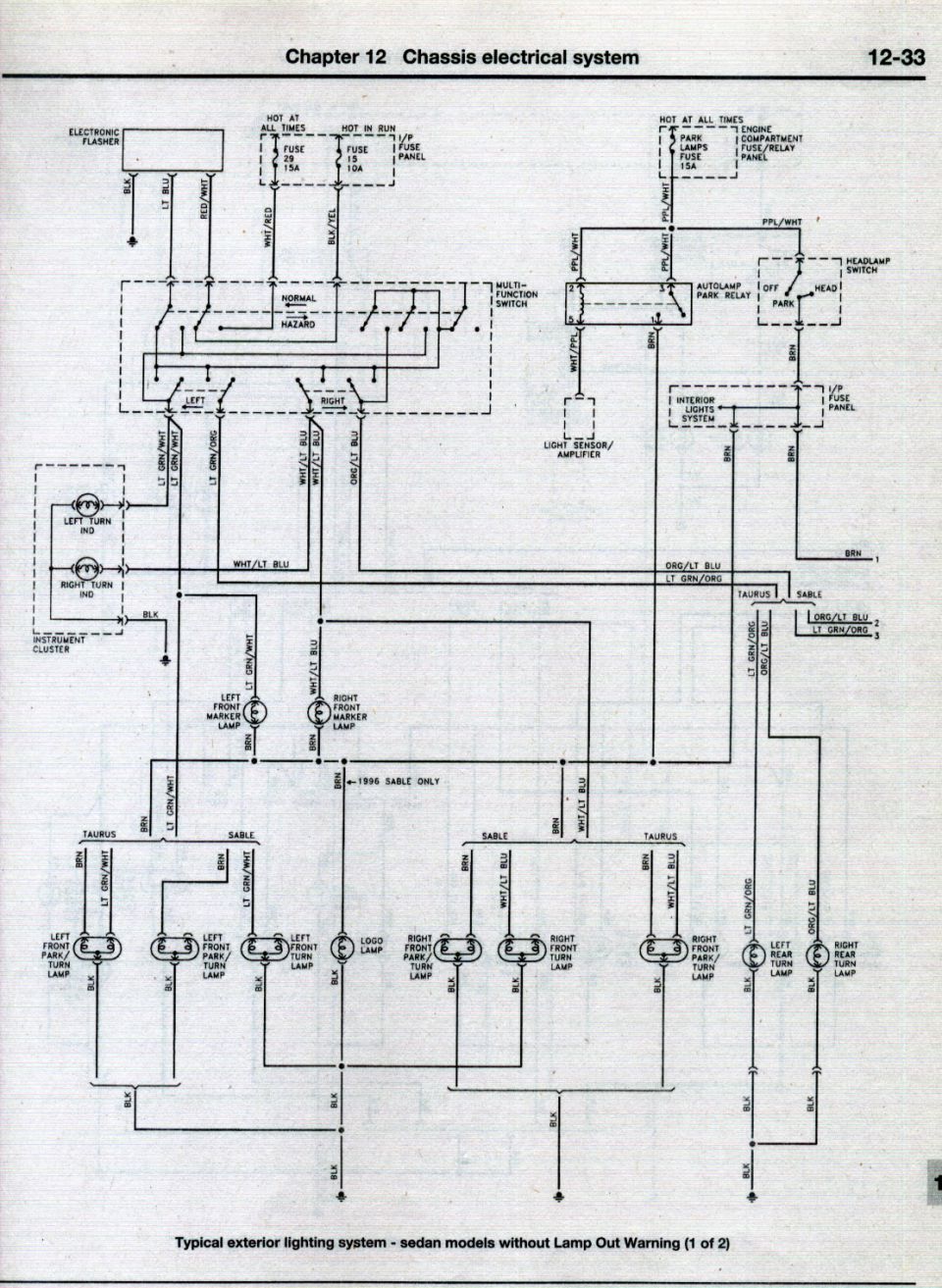

Ford Taurus & Mercury Sable Exterior Lighting Wiring Diagram - Turn/Park Lamps

Exterior lighting wiring diagram for Taurus/Sable turn and park lamps

‹ ›

Reference · 1996-1999 TaurusAll 33 wiring diagrams

Starter Wire Bypass Switch Diagram - 12V Push-Button Starter Circuit (Ford Taurus)

Ford Taurus / Mercury Sable Sedan Exterior Lighting Wiring Diagram (2 of 2)

Ford Taurus & Mercury Sable Exterior Lighting Wiring Diagram - Turn/Park Lamps

Ford Taurus 3.0L 2V Starting System Wiring Diagram - Starter Relay & DTR Sensor

Dual Amp & Subwoofer Wiring Diagram - Bridged 2-Amp Car Audio Install Layout

Fog Light Relay Wiring Diagram - Battery, Relay 85/86/87 & Switch Hookup

'02 Taurus/Sable connector views for C176, C177, C180, C181 and C182 with pin tables

Ford Taurus 3.0L Duratec Camshaft/ECT/OSS Sensor Wiring Diagram - PCM VREF

Ford Taurus ICP Radio Wiring Diagram - Fuses, Wire Colors, GEM, EATC, RCU

Multi-page wiring diagram strip with connector blocks, circuit numbers and speaker wiring

Ford PCM 104-Pin Connector C181 Pinout Diagram - Wire Colors & Pin Functions

Ford AX4S/AX4N Transaxle C168 Connector Pinout Diagram - Wire Colors & Circuits

33wiring diagrams1996-1999 Ford Taurus More reference

Ford Taurus Halfshaft ABS Sensor Ring Press Diagram: Tool 206-072

Service procedure

1998 Ford Taurus Halfshaft CV Joint & Boot Diagram - E6715-F Callout Figure

Exploded parts

2004 Ford SVT Mustang Cobra Mystichrome Edition display placard listing specs and features

Brochure

Engine coolant/intake air temperature sensor values table of temperature, voltage and resistance

Manual page

1999 Ford Taurus SHO window sticker with equipment list, 16 city / 25 highway MPG and $29,550 MSRP

Spec plate

Ford Taurus SHO 3.4L V8 Serpentine Drive Belt Routing Diagram & Pulley Guide

Schematic

1997 Ford Taurus Gen 3 Engine Compartment Fuse Box Diagram - Fuse & Relay Chart

Fuse chart

V8 Prototype Intake Manifold Runner Horns Patent Drawing: Figure 8 Plenum Layout

Blueprint

1997 Ford Taurus EATC Vacuum Schematic - Hose Routing & Part Numbers

Vacuum routing

Chassis electrical wiring diagram of the exterior lighting system showing turn, park and marker lamps with color codes.

Part of 1996-1999 Ford Taurus Wiring Diagrams

AI caption June 2003 · Photo 46 of 386

This is page 12-33 from Chapter 12 (Chassis electrical system) of a repair manual, showing a wiring diagram titled 'Typical exterior lighting system - sedan models without Lamp Out Warning (1 of 2)' for Ford Taurus and Mercury Sable sedans. The diagram covers turn signal, hazard, park, and marker lamp circuits. Power sources include Fuse 29 (15A, hot at all times) and Fuse 15 (10A, hot in run) in the I/P fuse panel, and the 15A Park Lamps fuse in the engine compartment fuse/relay panel. Components shown include the electronic flasher, multi-function switch (normal/hazard, left/right), autolamp park relay, headlamp switch (off/park/head), light sensor/amplifier, interior lights system, and instrument cluster turn indicators. It shows wiring to left/right front park/turn lamps, front turn lamps, front marker lamps, a logo lamp, and left/right rear turn lamps, with separate branch routings labeled for Taurus versus Sable (including a '1996 Sable only' note). Wire colors are labeled throughout, e.g., LT GRN/WHT (left turn), WHT/LT BLU (right turn front), LT GRN/ORG (left rear turn), ORG/LT BLU (right rear turn), BRN (park lamps), PPL/WHT (park lamp feed), and BLK grounds.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What fuses power the turn signal and hazard circuits in this diagram?: Fuse 29 (15A, hot at all times) and Fuse 15 (10A, hot in run) in the I/P fuse panel; the park lamps are fed by a 15A Park Lamps fuse in the engine compartment fuse/relay panel.
What wire colors are used for the turn signal circuits?: LT GRN/WHT for the left front turn lamps, WHT/LT BLU for the right front turn lamps, LT GRN/ORG for the left rear turn lamp, and ORG/LT BLU for the right rear turn lamp, with BLK grounds.
Does this diagram cover both Taurus and Sable?: Yes. Several branches are labeled separately for TAURUS and SABLE, and one BRN wire is noted as '1996 SABLE ONLY'.
What lamps are shown in this exterior lighting diagram?: Left and right front park/turn lamps, front turn lamps, front marker lamps, a logo lamp, and left and right rear turn lamps, plus the instrument cluster left/right turn indicators.
Which vehicles does the diagram caption say it applies to?: It is a 'Typical exterior lighting system - sedan models without Lamp Out Warning (1 of 2)'.
