Which fuse powers the backup lamps on the Taurus/Sable sedan?

Fuse 6, a 15A fuse that is hot in run, feeds an ORG wire through the Transmission Range (TR) sensor to the left and right backup lamps via BLK/PNK wires.

Which fuse and switch feed the brake/stop lamps?

Fuse 28 (15A, hot at all times) in the I/P fuse panel feeds the Brake On/Off (BOO) switch via a LT GRN/RED wire; the switch output is RED/LT GRN to the hi-mount and rear park/stop lamps.

What wire color goes to the hi-mount stop lamps?

Both the left and right hi-mount stop lamps are fed by RED/LT GRN wires, with BLK ground wires.

What wire colors feed the rear turn lamps?

The left rear turn lamp circuit uses LT GRN/ORG and the right rear turn lamp uses ORG/LT BLU, with BRN feeds for the park/marker filaments and BLK grounds.

Home/ Registry/ Ford/ Taurus/ 1996-1999/ “My Baby”/ Photo supermotors.net/registry/media/65274

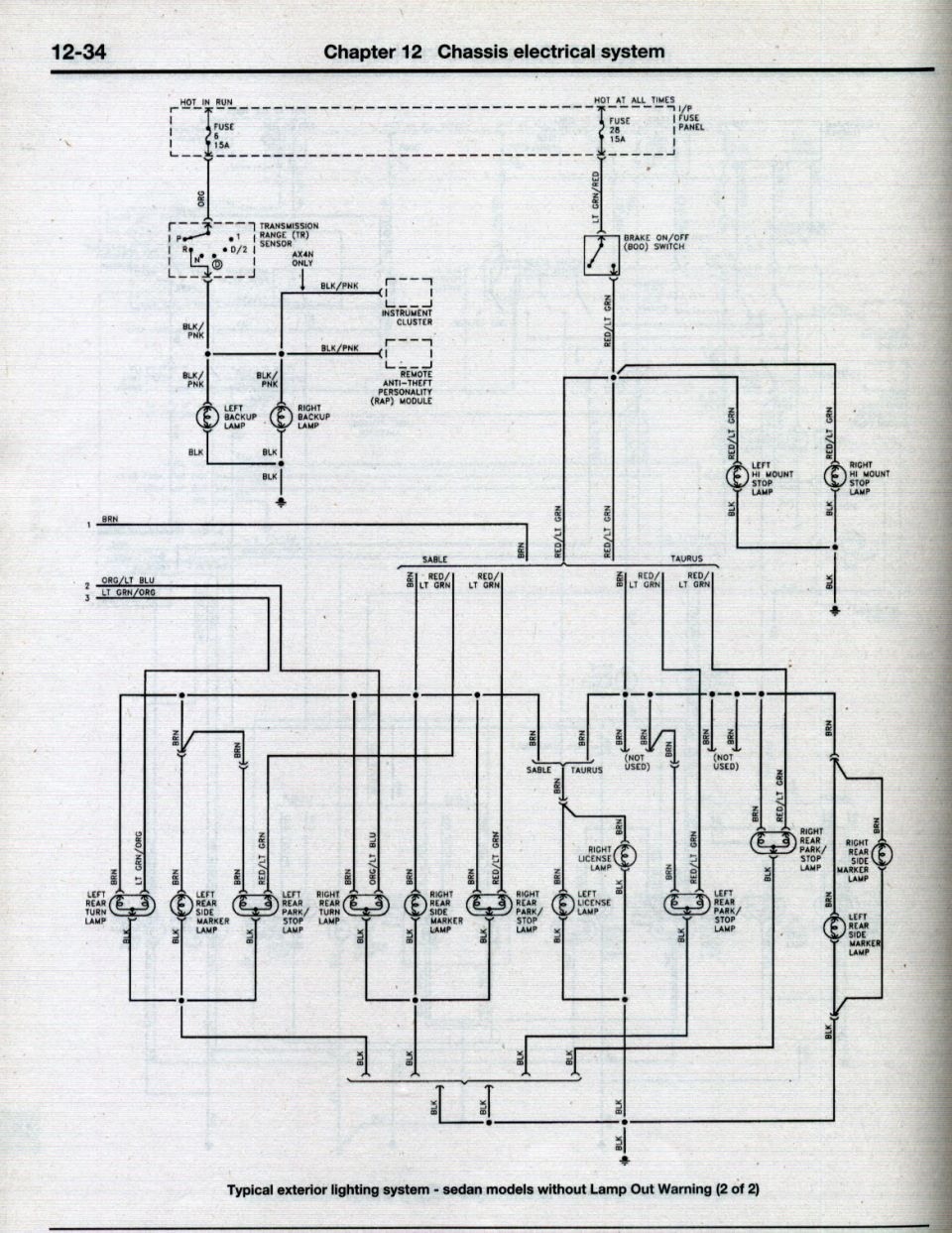

Ford Taurus / Mercury Sable Sedan Exterior Lighting Wiring Diagram (2 of 2)

Exterior lighting wiring diagram page 2 with backup, stop and license lamps

‹ ›
