Starter Wire Bypass Switch Diagram - 12V Push-Button Starter Circuit (Ford Taurus)

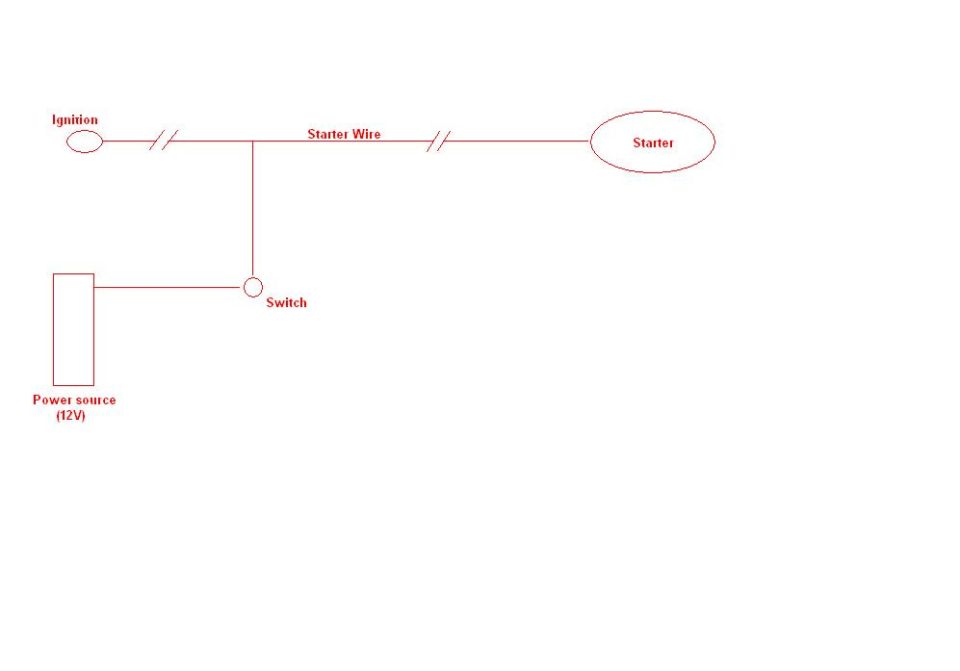

This document is a simple, hand-drawn schematic (not a factory wiring diagram) illustrating how to wire a starter bypass or auxiliary starter trigger circuit. It shows the vehicle's ignition connected to the starter through a "Starter Wire." Two double-slash marks on the wire appear to indicate points where the wire is cut or interrupted. From a junction on the starter wire, a vertical branch leads down to a "Switch," which in turn connects to a rectangular block labeled "Power source (12V)." The concept depicted is that a 12-volt power source can be routed through a switch and spliced into the starter wire, allowing the starter to be energized independently of (or in addition to) the ignition circuit — commonly done for a push-button start, remote start test, or bypassing a faulty ignition switch. The diagram contains no fuse ratings, wire colors, gauge specifications, connector pin identifications, part numbers, or vehicle-specific applicability information. It was uploaded to a 1998 Ford Taurus gallery, but nothing on the drawing itself identifies a year, make, or model, so it should be treated as a generic conceptual illustration of a switched 12V starter trigger circuit.
