Ford Front Hub & Knuckle Torque Specs Diagram - 255-345 Nm Axle Nut (F8867-B)

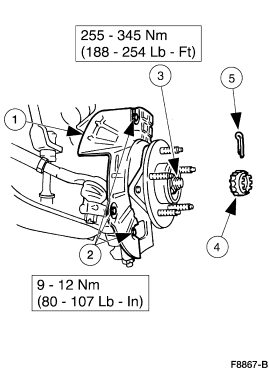

This document is an exploded-view illustration showing a front wheel hub and knuckle assembly with associated hardware, identified by figure number F8867-B. The diagram uses numbered callouts (1 through 5) pointing to components including the steering knuckle/spindle area, the hub and wheel-stud assembly, a small retaining clip (callout 5), and a nut or bearing retainer component (callout 4). Two torque specifications are provided in boxed callouts: 255-345 Nm (188-254 Lb-Ft), which points to a large fastener at the center of the hub (likely the hub/axle nut), and 9-12 Nm (80-107 Lb-In), which points to smaller fasteners at the lower portion of the knuckle assembly. No legend or parts list accompanies the numbered callouts, so component names must be inferred from the artwork. The document contains no year, make, model, or engine applicability text. A reader can learn the two critical torque values for servicing this hub assembly and the general order/arrangement of the retaining hardware (clip and retainer) that secures the hub. It was uploaded as a torque-spec reference to a vehicle gallery, though the document itself does not state which vehicle it covers.
