Ford V6/V8 Intake Manifold Gasket Location Diagram - Illustration AA5817-A

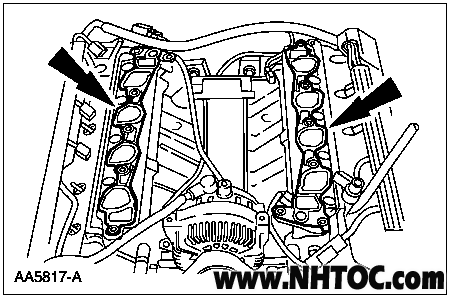

This document is a single black-and-white line-art service illustration showing the top of an engine with the intake manifold removed. Two large arrows call out the intake manifold gaskets seated on the left and right cylinder head intake ports, indicating gasket placement/orientation during removal or installation. The lower engine valley, front cover area, and an accessory (alternator/pulley area) are visible at the bottom of the drawing. The only text in the image is the Ford-style illustration reference number 'AA5817-A' in the lower-left corner and a 'www.NHTOC.com' watermark along the bottom edge. The document contains no written procedure steps, torque specifications, part numbers, model years, or engine identification text. A reader can learn from it where the intake manifold gaskets sit on each cylinder head bank of this V-type engine, which is useful when performing an intake manifold gasket replacement. The scan was uploaded to a 2007 Ford Mustang gallery, but the illustration itself does not state which vehicle, year, or engine it applies to; based on companion files in the same album it appears to belong to a Ford truck engine service illustration set.
