What circuits run the right front power window motor?

Circuit 333 YE/RD and circuit 334 RD/YE from the right front power window switch, passing through connectors C609 and C606 to the motor.

Where does the right front window switch get power with and without keyless entry?

Circuit 193 YE/LG comes from splice S272 with keyless entry, or splice S263 without keyless entry (both on page 100-4).

What is the ground circuit for the power window switches?

Circuit 57 BK. The left front switch grounds through splice S271 to G200 (see grounds page 10-14); the right front switch grounds through splice S600 to G200 (see grounds page 10-10).

What circuit provides switch illumination?

Circuit 19 LB/RD (instrument illumination, referenced to page 71-3) feeds the illumination bulbs in both the left and right front window switches.

Home/ Registry/ Ford/ Mustang/ 2005-2014/ “SHELBY GT500”/ Photo supermotors.net/registry/media/724088

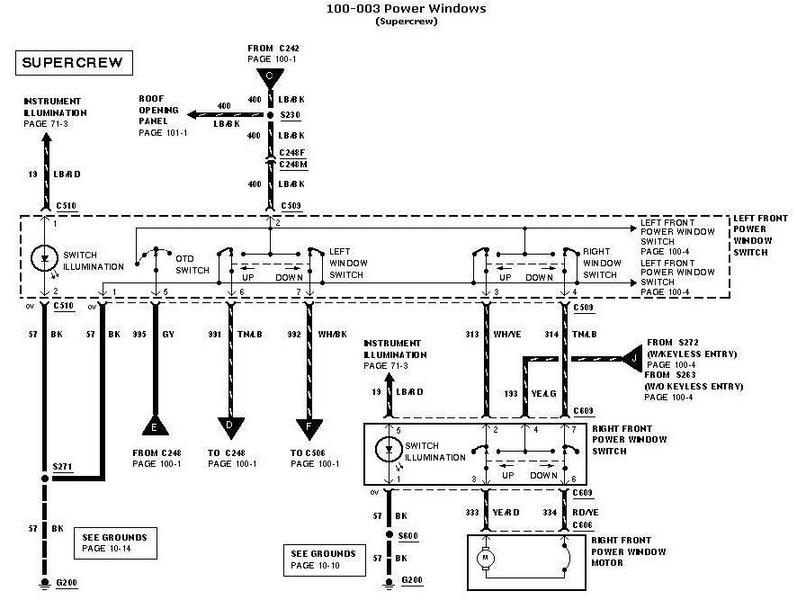

Ford F-150 SuperCrew Power Window Wiring Diagram 100-003 - Switches & Motor

SuperCrew power windows wiring diagram 100-003 with left and right window switches and motors

‹ ›

Automotive wiring diagram for SuperCrew power windows showing front window switches, motors and color-coded circuits.

AI caption April 2009 · Photo 837 of 4867

This is page 100-003 of a Ford wiring diagram set covering the power window circuit for the SuperCrew body style. It shows the left front power window (master) switch with its internal switch illumination, OTD switch, and left/right window UP/DOWN switch contacts, plus the right front power window switch and right front power window motor. Circuit references include power feed circuit 400 (LB/BK) arriving from connector C242 (page 100-1) through splice S230 and connectors C248F/C248M to C509, with a branch to the roof opening panel (page 101-1). Instrument illumination is fed by circuit 19 (LB/RD, page 71-3). Left switch outputs include 995 GY, 991 TN/LB (to C248), 992 WH/BK (to C506), 313 WH/YE, and 314 TN/LB. The right front switch receives 193 YE/LG from splice S272 (with keyless entry) or S263 (without keyless entry, page 100-4) and drives the right front window motor via circuits 333 YE/RD and 334 RD/YE through connectors C609 and C606. Grounds are 57 BK to G200 via splices S271 and S600 (grounds pages 10-14 and 10-10). Useful for tracing wire colors, circuit numbers, connector and splice locations in the SuperCrew power window system.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What wire color is the main power feed for the SuperCrew power window circuit?: Circuit 400, LB/BK (light blue/black), coming from connector C242 (page 100-1) through splice S230 and connectors C248F/C248M to C509.
What circuits run the right front power window motor?: Circuit 333 YE/RD and circuit 334 RD/YE from the right front power window switch, passing through connectors C609 and C606 to the motor.
Where does the right front window switch get power with and without keyless entry?: Circuit 193 YE/LG comes from splice S272 with keyless entry, or splice S263 without keyless entry (both on page 100-4).
What is the ground circuit for the power window switches?: Circuit 57 BK. The left front switch grounds through splice S271 to G200 (see grounds page 10-14); the right front switch grounds through splice S600 to G200 (see grounds page 10-10).
What circuit provides switch illumination?: Circuit 19 LB/RD (instrument illumination, referenced to page 71-3) feeds the illumination bulbs in both the left and right front window switches.
