What fuse powers the headlamp circuit at the Battery Junction Box?

Fuse 3, a 30A fuse in the Battery Junction Box (hot at all times), feeding circuit 196 DB/OG. See Power Distribution page 13-2.

What wire color is the main headlamp feed from the light switch?

Circuit 15 RD/YE (red/yellow) runs from the Main Light Switch through splice S244 and connectors C253F/C253M to the Multifunction Switch.

Which Central Junction Box fuses are in the headlamp/DRL circuit?

Fuse 30 (20A), plus fuses 27 (5A), 28 (10A), and 26 (10A), which feed circuits 188 WH/BK (fog lamps), 160 DB/WH, and 161 DG/OG.

How does the circuit differ with and without Daytime Running Lamps (DRL)?

Without DRL, circuit 1033 RD/YE goes through C214M/C214F to circuit 132 OG/BK and then 13 RD/BK. With DRL, 1033 RD/YE feeds Daytime Running Lamps (DRL) Relay #2 in the relay block (page 97-2), whose output is 13 RD/BK.

What does the Multifunction Switch do in this circuit?

It contains the Flash-to-Pass and Dimmer switches, allowing the operator to select High beam, Low beam, or Flash to Pass. Switch testing is on page 149-6.

Home/ Registry/ Ford/ Mustang/ 2005-2014/ “SHELBY GT500”/ Photo supermotors.net/registry/media/724083

Ford Headlamp Wiring Diagram 085-001 - DRL Relay, Fuses & Multifunction Switch

Ford headlamp wiring diagram 085-001 with switches, relays and color-coded circuits

‹ ›

Reference · 2005-2014 MustangAll 41 wiring diagrams

Ford F-150 SuperCrew Power Window Wiring Diagram 100-003 - Switches & Motor

Ford F-150 Lariat Sliding Rear Window Wiring Diagram 100-005 Power Windows

2001 Ford Manual HVAC Heater Wiring Diagram 053-001 - Blower Motor & Blend Door

Ford Headlamp Wiring Diagram 085-001 - DRL Relay, Fuses & Multifunction Switch

Ford Headlamp Wiring Diagram 085-002 - Circuits 12, 160, 161, Grounds G102/G103

Ford Fog Lamps Wiring Diagram 086-002 - Fog Lamp Relay, Switch & Circuits

Ford Heater Wiring Diagram 053-001 - Blower Motor, Resistor & Blend Door Circuit

Ford Turn Signal/Stop/Hazard Lamps Wiring Diagram 090-001 - Flasher Relay Circuit

41wiring diagrams2005-2014 Ford Mustang More reference

Ford Mustang Car Show Judged Classes List (1964½-2014) & Specialty Awards

Brochure

Ford Supercharger Bolt Tightening Sequence Diagram (Fig. N0049439)

Service procedure

Amsoil Ea Oil Filter Exploded Diagram - Components & Construction Explained

Exploded parts

Shop Air Piping Layout Diagram - Compressor Line Sizes, Drops & Drain Points

Schematic

2013 Ford Mustang GT Roush Stage III Window Sticker - MSRP, Options & EPA Data

Spec plate

Torque spec

1997 Ford F-150 RAP Module Location Diagram - Driver's Side Instrument Panel

Manual page

Fuse chart

Blueprint

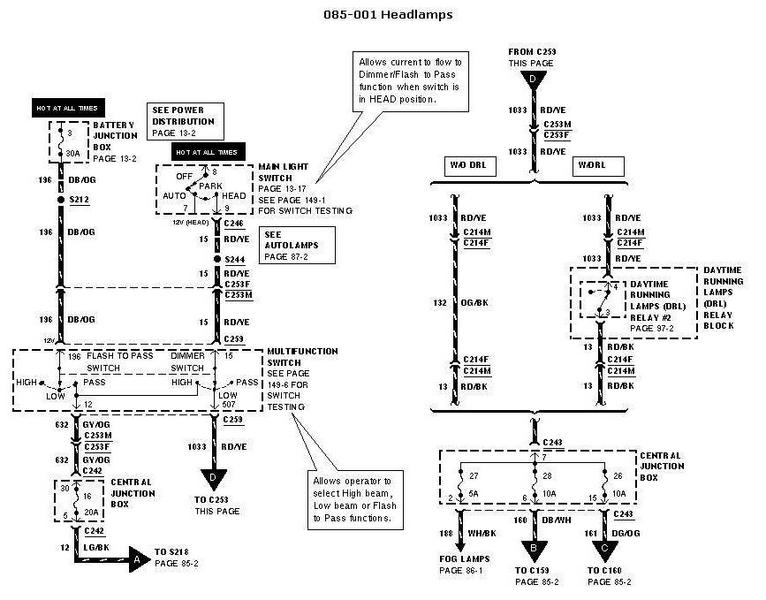

Automotive wiring diagram for the headlamp circuit showing the main light switch, multifunction switch, DRL relay and color-coded wires.

Part of 2005-2014 Ford Mustang Wiring Diagrams

AI caption April 2009 · Photo 832 of 4866

This document is page 085-001, "Headlamps," from a Ford wiring diagram set. It traces the headlamp power circuit from the Battery Junction Box (fuse 3, 30A, hot at all times) through wire 196 DB/OG and splice S212 to the Main Light Switch (positions OFF, PARK, AUTO, HEAD; testing on page 149-1). From the switch, circuit 15 RD/YE feeds the Multifunction Switch, which contains the Flash-to-Pass and Dimmer switches (testing on page 149-6) allowing selection of high beam, low beam, or flash-to-pass. Output circuits include 632 GY/OG through the Central Junction Box (fuse 30, 20A) to circuit 12 LG/BK, and 1033 RD/YE via connector C253. The right side of the diagram shows the split between vehicles without DRL (132 OG/BK circuit) and with DRL (through Daytime Running Lamps Relay #2, page 97-2), both converging on circuit 13 RD/BK. The circuit then passes through the Central Junction Box fuses 27 (5A), 28 (10A), and 26 (10A), feeding the fog lamps (188 WH/BK, page 86-1), circuit 160 DB/WH to C159, and circuit 161 DG/OG to C160 on page 85-2. Cross-references to power distribution (13-2) and autolamps (87-2) pages are included.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What fuse powers the headlamp circuit at the Battery Junction Box?: Fuse 3, a 30A fuse in the Battery Junction Box (hot at all times), feeding circuit 196 DB/OG. See Power Distribution page 13-2.
What wire color is the main headlamp feed from the light switch?: Circuit 15 RD/YE (red/yellow) runs from the Main Light Switch through splice S244 and connectors C253F/C253M to the Multifunction Switch.
Which Central Junction Box fuses are in the headlamp/DRL circuit?: Fuse 30 (20A), plus fuses 27 (5A), 28 (10A), and 26 (10A), which feed circuits 188 WH/BK (fog lamps), 160 DB/WH, and 161 DG/OG.
How does the circuit differ with and without Daytime Running Lamps (DRL)?: Without DRL, circuit 1033 RD/YE goes through C214M/C214F to circuit 132 OG/BK and then 13 RD/BK. With DRL, 1033 RD/YE feeds Daytime Running Lamps (DRL) Relay #2 in the relay block (page 97-2), whose output is 13 RD/BK.
What does the Multifunction Switch do in this circuit?: It contains the Flash-to-Pass and Dimmer switches, allowing the operator to select High beam, Low beam, or Flash to Pass. Switch testing is on page 149-6.
