C268 multi-function switch connector pinout with circuits 684, 1…

C268 multi-function switch connector pinout with circuits 684, 15, 13, 682, 12, 680 and 196
C268 multi-function switch connector pinout with circuits 684, 15, 13, 682, 12, 680 and 196Original file
C268 multi-function switch connector pinout with circuits 684, 15, 13, 682, 12, 680 and 196

Reference · 1996-1999 TaurusAll 33 wiring diagrams

Ford PCM 104-Pin Connector C181 Pinout Diagram - Wire Colors & Pin Functions Ford AX4S/AX4N Transaxle C168 Connector Pinout Diagram - Wire Colors & Circuits Ford Taurus AX4N Transmission Range (TR) Sensor C107 Connector Pinout Diagram C268 multi-function switch connector pinout with circuits 684, 15, 13, 682, 12, 680 and 196 Ford Taurus/SHO Instrument Cluster Connector C250 Pinout - 3.0L & 3.4L SHO 1997 Ford Taurus ABS Control Module C1057 Connector Pinout & Wire Colors 1996 Ford Taurus SHO PCM 104-Pin Connector C191 Complete Pinout Diagram Automotive 5-Pin Relay Diagram - Terminals 30, 85, 86, 87 & 87A (NO/NC) 33wiring diagrams1996-1999 Ford Taurus More reference Engine coolant/intake air temperature sensor values table of temperature, voltage and resistanceManual page Multi-function switch component testing tables with circuit numbers, wire colors and switch positionsService procedure Ford Taurus SHO 3.4L V8 Engine Exploded Parts Diagram - Gaskets & Part NumbersExploded parts Ford Taurus / Sable Power Steering Pump & Gear Specifications - VAPS, SHOSpec plate Ford Taurus SHO 3.4L V8 Serpentine Drive Belt Routing Diagram & Pulley GuideSchematic 1997 Ford Taurus Gen 3 Engine Compartment Fuse Box Diagram - Fuse & Relay ChartFuse chart V8 Prototype Intake Manifold Runner Horns Patent Drawing: Figure 8 Plenum LayoutBlueprint 1997 Ford Taurus EATC Vacuum Schematic - Hose Routing & Part NumbersVacuum routing Ford 2009 Chicago Auto Show brochure cover with a red sedanBrochure

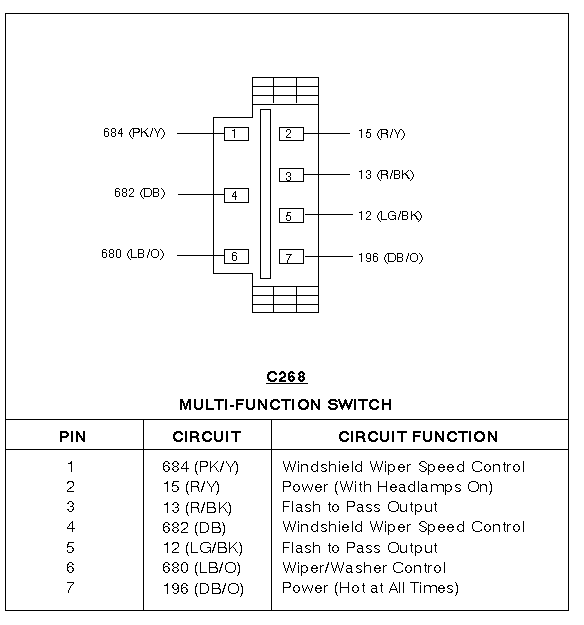

Connector C268 multi-function switch pinout with a table of circuits and functions for wiper speed, flash to pass, wiper/washer control and power.

Part of 1996-1999 Ford Taurus Wiring Diagrams

AI caption · Photo 433 of 575

584 (Mm I5 (HIV) Ia (RISK) 582 (DE) mom/m san La/o) we (DE/O) C268 MULTI-FUNCTIoN SWITCH PIN CIRCUIT CIRCUIT FUNCTION I 684 (PK/V) WIndshIeId WIper Speed ComroI 2 15 (RN) Power (Wm HeadIamps On) 3 3 (PK/BK) Hash Io Pass [mm 4 682 (DE) WIndshIeId WIper Speed ComroI 5 2 (LG/BK) Hash Io Pass [mm 6 680 (LB/D) WIper/Washer ComroI 7 196 (DB/D) Power (Hot aI AH TImeS)
