Wiring diagram for C168 (Neutral) AX4S/AX4N Transaxle connector.

Wiring diagram for C168 (Neutral) AX4S/AX4N Transaxle connector.
Wiring diagram for C168 (Neutral) AX4S/AX4N Transaxle connector.Original file
Wiring diagram for C168 (Neutral) AX4S/AX4N Transaxle connector.

ConnectorsView all 21

Multi-cell electrical wiring diagram with relays, motors and circuit codes across several panels Automotive relay terminal pinout: 30, 85, 86, 87, 87a coil and output terminals explained 1997 Ford Taurus photo 1997 Ford Taurus photo 1997 Ford Taurus photo Ford PCM connector pinout chart: 104-pin powertrain control module pin/circuit/function table Powertrain control module connector C191 104-pin face view with pin, circuit and function tables SARC module C450 connector pinout with circuit function table Engine cooling fan and A/C clutch wiring diagram with HEDF/EDF relays Fuel pump relay and inertia switch wiring diagram with color codes Wiring diagram for C168 (Neutral) AX4S/AX4N Transaxle connector. Instrument cluster C250 connector pinout with circuit function table 3.0L 4V engine controls wiring diagram with PCM and sensors PCM connector C175 pinout view with pin function table '02 Taurus/Sable PCM connector view table for pins 41-104 with circuits and functions '02 Taurus/Sable connector views for C176, C177, C180, C181 and C182 with pin tables 21photos in this albumView all

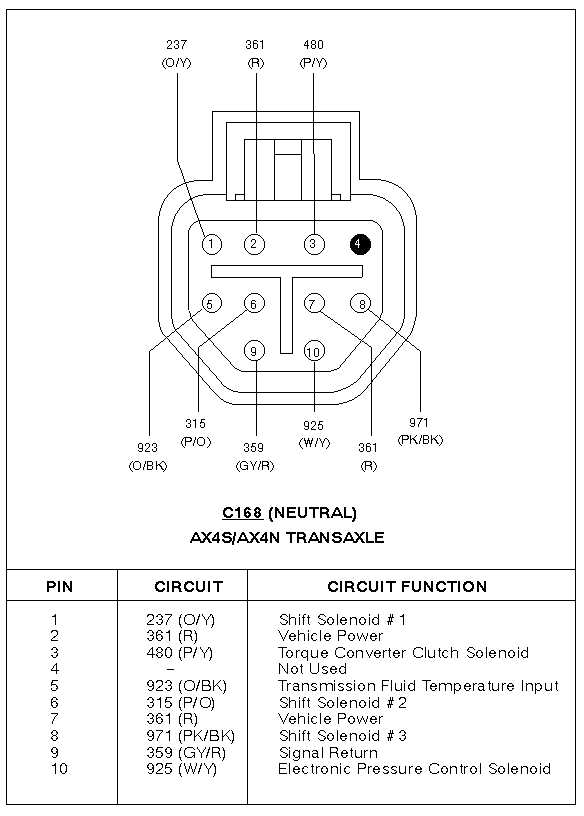

This is a wiring diagram for the C168 (Neutral) AX4S/AX4N Transaxle. It shows a connector with 10 pins and lists the circuit and circuit function for each pin.
