Ford Bronco Roll Cage Frame Bracket Blueprint - Dimensions & Hole Layout

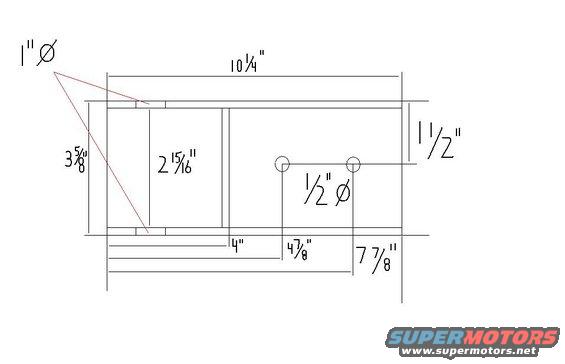

This document is a hand-drawn dimensional blueprint for a cage frame bracket, uploaded to accompany a 1995 Ford Bronco. The drawing shows a rectangular bracket plate 10 1/4 inches long and 3 5/8 inches tall. Two 1-inch diameter features (called out as 1" Ø with red leader lines) are located at the top and bottom of the left end of the bracket. An interior section is dimensioned at 2 15/16 inches, with a vertical divider located 4 inches from the left edge. Two 1/2-inch diameter holes (1/2" Ø) are positioned on the right portion of the bracket, located 4 7/8 inches and 7 7/8 inches from the left reference edge, and set 1 1/2 inches down from the top edge. The drawing provides all hole spacing and overall dimensions needed to fabricate the bracket, presumably for mounting a roll cage to the frame. There is no text identifying vehicle year, make, model, material thickness, or part numbers; the sheet consists solely of the dimensioned sketch. A companion drawing (Cage frame bracket.jpg) exists in the same album, suggesting this is one page of a two-part fabrication set.
