Axle Tube Perch Blueprint - Fits 3 3/8" or 3 1/2" Tube, Dimensioned Drawing

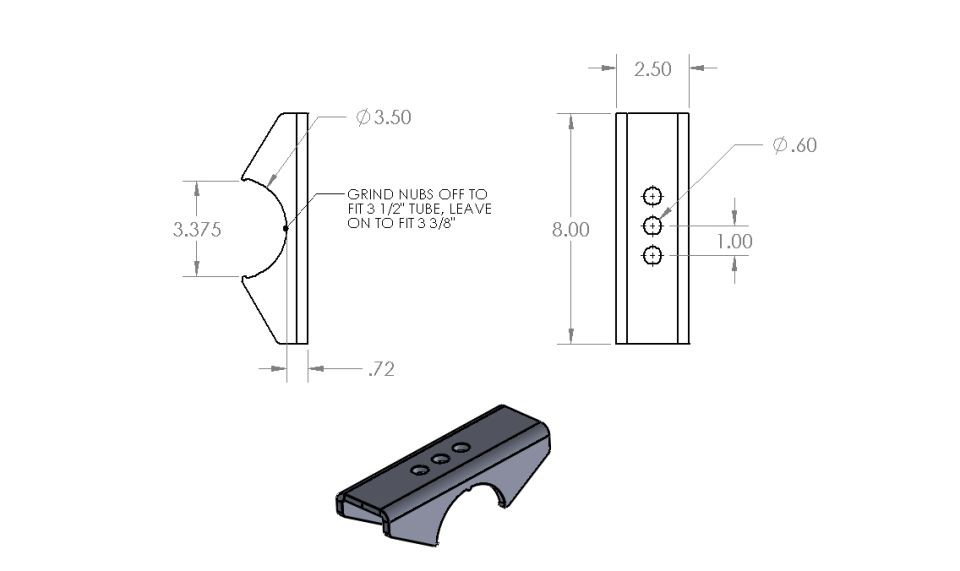

This document is a dimensioned CAD blueprint (three views: side profile, top view, and a shaded 3D isometric render) of an axle spring/link perch or tube saddle designed to fit large-diameter axle tubes. The saddle radius is called out as Ø 3.50 inches, with a note stating: 'GRIND NUBS OFF TO FIT 3 1/2" TUBE, LEAVE ON TO FIT 3 3/8"' — meaning the same part fits either 3-3/8" or 3-1/2" axle tubes depending on whether small locating nubs inside the saddle are ground away. The side view shows a 3.375-inch saddle opening height and a .72-inch thickness dimension. The top view shows the part is 2.50 inches wide and 8.00 inches long, with three Ø .60-inch holes drilled along the centerline at 1.00-inch spacing. The filename (14PERCH.jpg) and companion album files (Dana 60 exploded views, beadlock diagrams, track bar mounts) suggest this is a fabrication template for a heavy-duty solid-axle perch, likely for a Dana 60 or similar large-tube axle swap on the uploader's 1995 Ford Bronco. A fabricator can use these dimensions to cut, drill, and fit the perch to their axle tube diameter.
