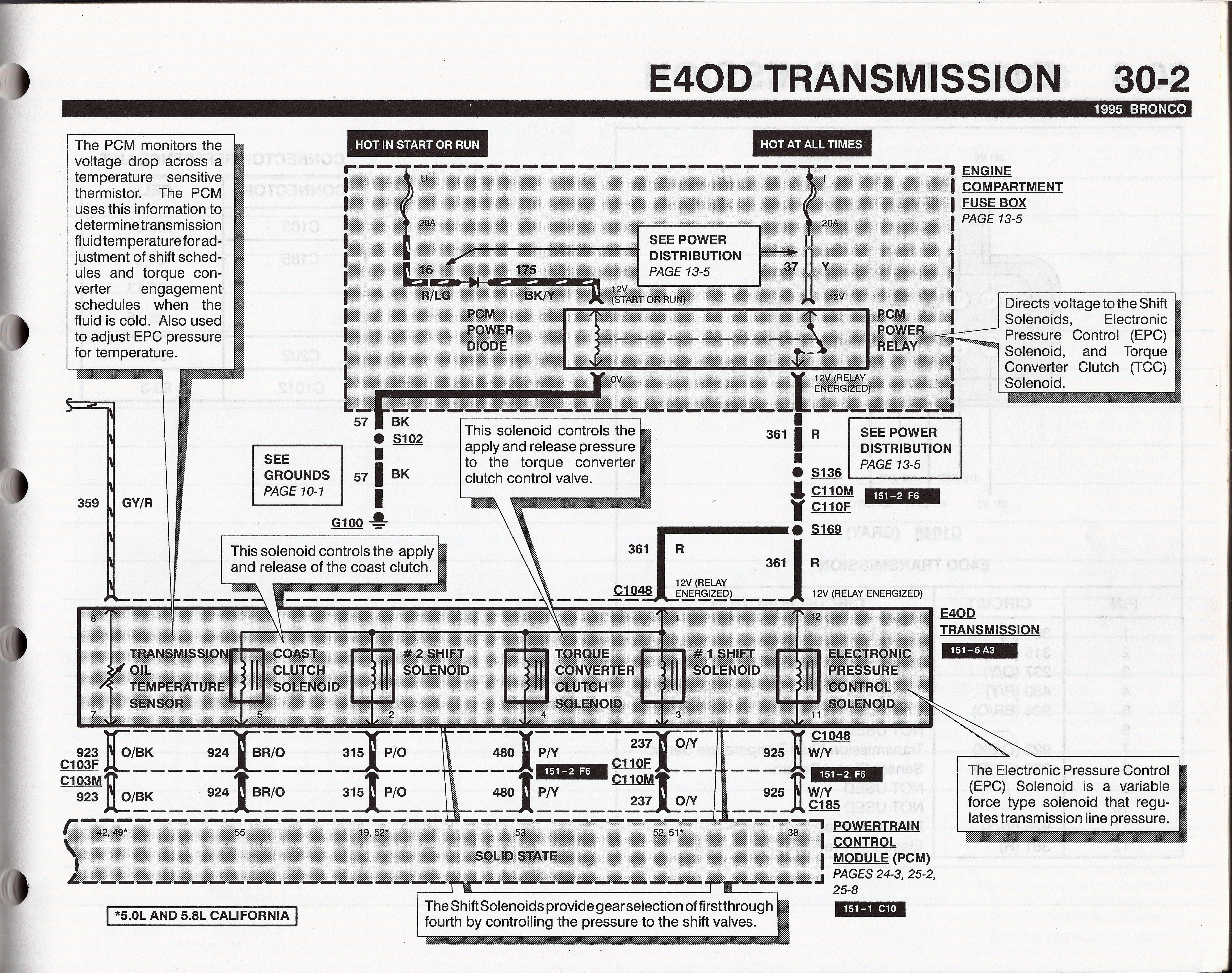

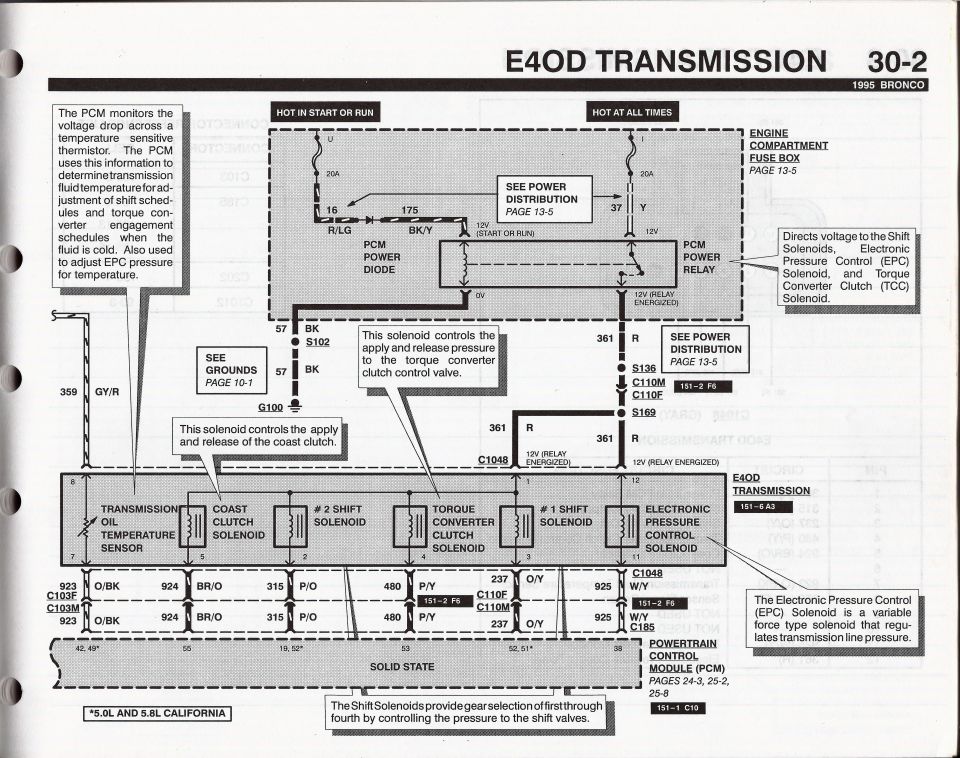

Ford E4OD transmission wiring diagram page 30-2 for 1995 Bronco

Ford 21-1 Ignition System wiring diagram with PCM, ignition control module and distributor 1995 Ford Bronco engine compartment connector and ground location diagram, EVTM FCS-12129-95 sheet 2 of 7 Engine controls wiring diagram page for 5.8L 1995 Ford Bronco engine compartment connector and ground location diagram, EVTM FCS-12129-95 sheet 2 of 7 Ignition System wiring diagram showing PCM, ICM, distributor and coil Ford service manual page 25-4, Engine Controls 5.8L 49 States, 1995 Bronco Ford service manual page 25-10, Engine Controls 5.8L California, 1995 Bronco Ford E4OD transmission wiring diagram page 30-2 for 1995 Bronco Ford E4OD transmission C1048 connector pinout chart page 30-3 In-line connector face pinout for C103F and C103M black connectors with numbered pins and wire color codes 1995 Bronco anti-theft system wiring diagram page 112-1 1995 Bronco anti-theft system wiring diagram page 112-2 1995 Bronco anti-theft system wiring diagram page 112-3 Anti-theft controller module connector pin-out chart, connectors C237 and C238 '95 Bronco anti-theft connector reference list, manual page 112-5 1995 Bronco E4OD transmission wiring diagram page 30-1 56photos in this albumView all
