1995 Ford Bronco Engine Compartment Component Locations - Connectors & Grounds

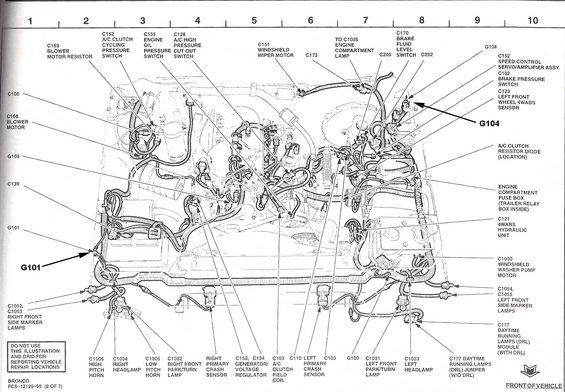

1995 Ford Bronco engine compartment connector and ground location diagram, EVTM FCS-12129-95 sheet 2 of 7
1995 Ford Bronco engine compartment connector and ground location diagram, EVTM FCS-12129-95 sheet 2 of 7Original file
1995 Ford Bronco engine compartment connector and ground location diagram, EVTM FCS-12129-95 sheet 2 of 7

Reference · 1987-1991 BroncoAll 175 wiring diagrams

1986-95 Ford V8 Truck Speed Density EFI Wiring Schematic - EEC-IV Pinout Ford EFI Wiring Diagram - EEC-IV Engine Control Module Pinout & Sensors 1995 Ford Bronco Engine Compartment Component Location Diagram (FCS-12129-95) 1995 Ford Bronco Engine Compartment Component Locations - Connectors & Grounds 1995 Ford Bronco Ignition System Wiring Diagram - Page 21-1 (TFI, ICM, Coil) 1995 Ford Bronco 5.8L California Fuel Pump Wiring Diagram - Page 25-12 Ford Bronco 5.8L California Engine Controls Wiring Diagram - MIL & O2 Sensor 25-11 1995 Ford Bronco 5.8L California Engine Controls Wiring Diagram - EGR, TP, ECT Ford 3G Alternator Wiring Diagram - Mega Fuse, Charge Lamp & Wire Colors KC Driving Lights & LED Light Bar Relay Wiring Diagram - Ford Bronco Aux Lights 175wiring diagrams1987-1991 Ford Bronco More reference Ford Thermactor Air Bypass Valve Cutaway Diagram - Port IdentificationSchematic Ford Canister Purge Regulator Valve (CANP 9C915) Test Procedure - Figure 11Service procedure Ford 5.8L important engine information decal with 10° BTDC timing check and ASF-32C plugSpec plate Ford 5.0L V8 PCV Valve & Hose Routing Diagram - 9A474, 6B890, 6A664Exploded parts Ford 5.0L/5.8L Air Throttle Body Assembly Diagram - Canister Purge Ports & TPSManual page 1990 Bronco Major Standard Equipment sheet with interior features and functional specs by trimBrochure Borgeson Steering Intermediate Shaft Measurement Diagram - U-Joint Length B & CBlueprint Ford Thermactor Combination Valve Diagram - Air Bypass/Control Ports LabeledVacuum routing 1990 Ford Bronco Fuse Panel Diagram: Fuse Positions, Amps & Circuits (11-2)Fuse chart Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud LocationsTorque spec

Engine-compartment component-location diagram mapping connectors (C-numbers) and grounds (G100/G101/G104) to physical positions: blower resistor, headlamps, horns, ABS sensors, generator and wiper motor.

Part of 1987-1991 Ford Bronco Wiring Diagrams

AI caption · Photo 473 of 1787

This is page 2 of 7 from the Ford Bronco component location views section (document number FCS-12129-95), showing an overhead line-drawing of the engine compartment with callout labels identifying electrical connectors, grounds, and components. A numbered grid (1-10) runs across the top for location referencing. Labeled items include the blower motor and resistor (C168, C169), A/C clutch cycling pressure switch (C162), engine oil pressure switch (C135), A/C high pressure cut out switch (C126), windshield wiper motor (C151), brake fluid level switch (C170), speed control servo/amplifier (C152), brake pressure switch (C102), left front wheel 4WABS sensor (C123), 4WABS hydraulic unit (C121), engine compartment fuse box (with trailer relay box inside), windshield washer pump motor (C1030), generator/voltage regulator (C153, C154), A/C clutch field coil (C163), primary crash sensors, horns (C1005, C1006), headlamps (C1033, C1034), park/turn lamps (C1031, C1032), side marker lamps (C1052-C1055), and DRL module/jumper (C177). Ground points G100, G101, G103, and G104 are also marked, with G101 and G104 highlighted by bold arrows. A note states the illustration and grid should not be used for reporting vehicle repair locations. The 'FRONT OF VEHICLE' orientation arrow appears at bottom right.

Is this accurate? Sign in to help verify it.

Frequently asked questions

Where is ground G104 on the 1995 Bronco?
G104 is marked with a bold arrow near the top right of the engine compartment, close to the C152 speed control servo/amplifier assembly and C102 brake pressure switch, around grid columns 8-9.
Where is the trailer relay box located?
The diagram notes the trailer relay box is inside the engine compartment fuse box, located on the left side of the engine compartment (right side of the drawing).
What connector numbers are the headlamps and park/turn lamps?
C1034 is the right headlamp, C1033 the left headlamp, C1032 the right front park/turn lamp, and C1031 the left front park/turn lamp.
What is connector C123?
C123 is the left front wheel 4WABS (four-wheel anti-lock brake) sensor.
Which connectors are the horns on this diagram?
C1006 is the high pitch horn and C1005 is the low pitch horn, both at the front of the vehicle.
