What fuses power the anti-theft system on a 1995 Bronco?

Fuse 12, a 20A circuit breaker in the fuse panel (hot at all times, page 13-8) feeds battery voltage via circuit 171 BK/W, and fuse 6, 15A (hot in ACC or RUN, page 13-3) feeds power via circuit 182 BR/W.

How does the 1995 Bronco anti-theft system get disarmed?

Through the right (C609) and left (C510) door disarm switches, which close when a door is unlocked with the key. They connect the module's disarm input (pin 6, circuit 25 DG/P) to ground via circuit 57 BK at G201.

How do I know the anti-theft system is armed?

Turning the ignition from RUN to OFF and opening the driver's door makes the module flash the "ANTI-THEFT" indicator. After locking the doors, the indicator stays on about 30 seconds then goes off, indicating the system is armed.

What wire color is the anti-theft indicator output circuit?

Circuit 343 DB/LG (dark blue/light green) from module pin 13 via connectors C238 and C251 to the instrument cluster ANTI-THEFT indicator, grounding through circuit 570 BK/W at G200.

Where is diagnostic information for the anti-theft system?

The diagram says to refer to section 13-11 of the Service Manual for diagnostic information.

Home/ Registry/ Ford/ Bronco/ 1987-1991/ “Eddie Bauer”/ Photo supermotors.net/registry/media/898401

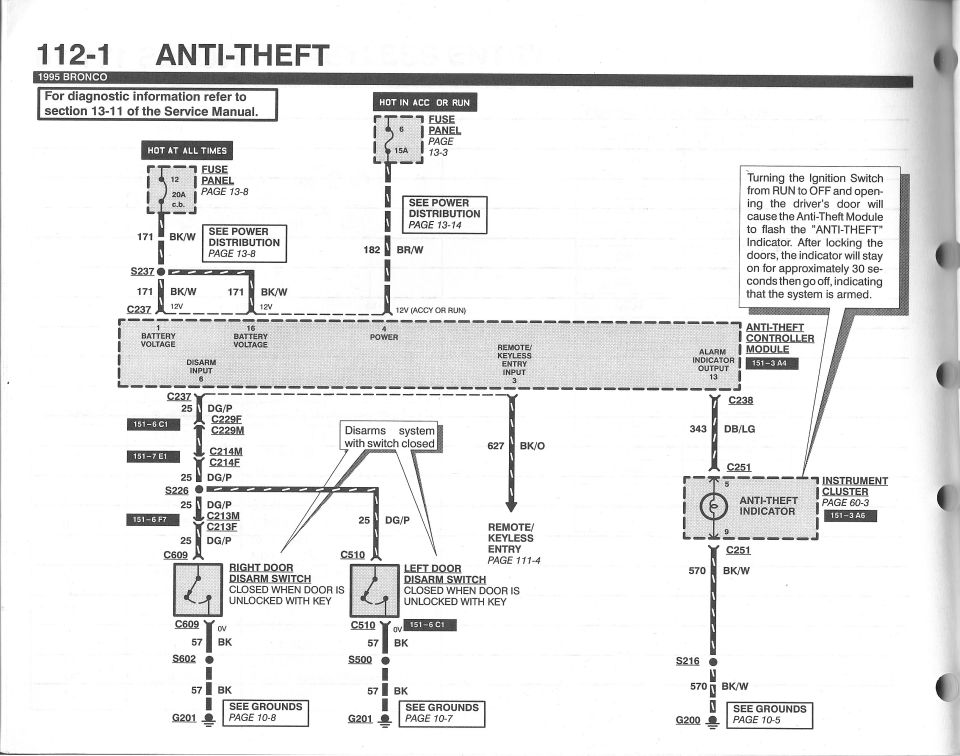

1995 Ford Bronco Anti-Theft System Wiring Diagram (Page 112-1)

1995 Bronco anti-theft system wiring diagram page 112-1

‹ ›

Reference · 1987-1991 BroncoAll 175 wiring diagrams

1995 Ford Bronco E4OD Transmission Wiring Diagram (EVTM Page 30-1)

1995 Ford Bronco Anti-Theft Wiring Diagram 112-3 - Door Lock & Tamper Sensor

1995 Ford Bronco Anti-Theft Wiring Diagram 112-2 - Controller Module Circuits

1995 Ford Bronco Anti-Theft System Wiring Diagram (Page 112-1)

Ford Black Remote-Mount TFI Ignition Module Wiring Schematic - EEC Pinout

Ford TFI Ignition Module Wiring Schematic - Black Distributor Mounted (EEC-IV)

Ford Gray Remote Mount TFI Ignition Module Wiring Diagram - EEC-IV Schematic

Ford TFI Ignition Module Wiring Schematic - Gray Distributor Mount (EEC Pins)

Ford 3G Alternator Wiring Diagram - Mega Fuse, Charge Lamp & Wire Colors

KC Driving Lights & LED Light Bar Relay Wiring Diagram - Ford Bronco Aux Lights

175wiring diagrams1987-1991 Ford Bronco More reference

Ford Thermactor Air Bypass Valve Cutaway Diagram - Port Identification

Schematic

Ford Canister Purge Regulator Valve (CANP 9C915) Test Procedure - Figure 11

Service procedure

Ford 5.8L important engine information decal with 10° BTDC timing check and ASF-32C plug

Spec plate

Ford 5.0L V8 PCV Valve & Hose Routing Diagram - 9A474, 6B890, 6A664

Exploded parts

Ford 5.0L/5.8L Air Throttle Body Assembly Diagram - Canister Purge Ports & TPS

Manual page

1990 Bronco Major Standard Equipment sheet with interior features and functional specs by trim

Brochure

Borgeson Steering Intermediate Shaft Measurement Diagram - U-Joint Length B & C

Blueprint

Ford Thermactor Combination Valve Diagram - Air Bypass/Control Ports Labeled

Vacuum routing

1990 Ford Bronco Fuse Panel Diagram: Fuse Positions, Amps & Circuits (11-2)

Fuse chart

Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud Locations

Torque spec

Wiring diagram for the 1995 Bronco anti-theft system showing controller module, door switches, and color-coded circuits.

Part of 1987-1991 Ford Bronco Wiring Diagrams

AI caption December 2011 · Photo 913 of 1787

This is page 112-1 of the 1995 Ford Bronco electrical/vacuum troubleshooting manual, showing the Anti-Theft system wiring diagram. It covers the Anti-Theft Controller Module (component location 151-3 A4) and its power, ground, disarm, keyless entry, and indicator circuits. Power comes from fuse panel fuse 12 (20A circuit breaker, hot at all times, via circuit 171 BK/W to module pins 1 and 16) and fuse 6 (15A, hot in ACC or RUN, via circuit 182 BR/W to pin 4). The disarm input (pin 6) runs through circuit 25 DG/P and connectors C229, C214, C213 to the right (C609) and left (C510) door disarm switches, which close when a door is unlocked with the key and ground through circuit 57 BK to G201. Pin 3 receives the remote/keyless entry input via circuit 627 BK/O (see page 111-4). Pin 13 drives the ANTI-THEFT indicator in the instrument cluster via circuit 343 DB/LG, grounding through 570 BK/W to G200. A note explains system arming: after turning ignition off and opening the driver's door, the indicator flashes; after locking the doors it stays lit about 30 seconds, then goes off when armed. Diagnostic info is in section 13-11 of the Service Manual.

This document covers 1995, which may differ from this 1990 Ford Bronco.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What fuses power the anti-theft system on a 1995 Bronco?: Fuse 12, a 20A circuit breaker in the fuse panel (hot at all times, page 13-8) feeds battery voltage via circuit 171 BK/W, and fuse 6, 15A (hot in ACC or RUN, page 13-3) feeds power via circuit 182 BR/W.
How does the 1995 Bronco anti-theft system get disarmed?: Through the right (C609) and left (C510) door disarm switches, which close when a door is unlocked with the key. They connect the module's disarm input (pin 6, circuit 25 DG/P) to ground via circuit 57 BK at G201.
How do I know the anti-theft system is armed?: Turning the ignition from RUN to OFF and opening the driver's door makes the module flash the "ANTI-THEFT" indicator. After locking the doors, the indicator stays on about 30 seconds then goes off, indicating the system is armed.
What wire color is the anti-theft indicator output circuit?: Circuit 343 DB/LG (dark blue/light green) from module pin 13 via connectors C238 and C251 to the instrument cluster ANTI-THEFT indicator, grounding through circuit 570 BK/W at G200.
Where is diagnostic information for the anti-theft system?: The diagram says to refer to section 13-11 of the Service Manual for diagnostic information.
