What connectors are shown on 1995 Bronco EVTM page 150-2?

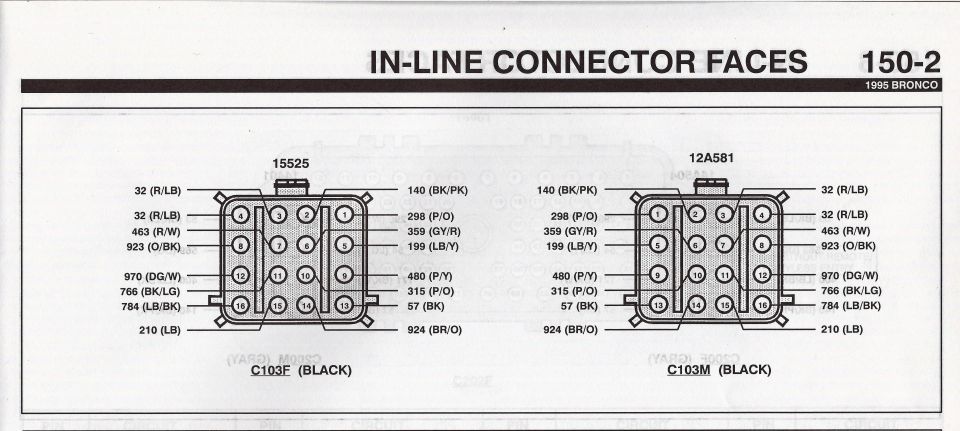

The mating in-line connector pair C103F (black, part 15525) and C103M (black, part 12A581), each with 16 pins, shown face-on with circuit numbers and wire colors for every cavity.

What wire is in pin 13 of connector C103 on a 1995 Bronco?

Pin 13 carries circuit 57 with a black (BK) wire.

Which circuits pass through the C103 connector?

Circuits 32 (R/LB, two cavities), 463 (R/W), 923 (O/BK), 970 (DG/W), 766 (BK/LG), 784 (LB/BK), 210 (LB), 140 (BK/PK), 298 (P/O), 359 (GY/R), 199 (LB/Y), 480 (P/Y), 315 (P/O), 57 (BK), and 924 (BR/O).

What color are the C103F and C103M connector bodies?

Both C103F and C103M are black connectors.

How many pins does the C103 connector have?

16 pins, arranged in four rows of four (numbered 1-16).

Home/ Registry/ Ford/ Bronco/ 1987-1991/ “Eddie Bauer”/ Photo supermotors.net/registry/media/863766

1995 Ford Bronco C103 In-Line Connector Pinout - EVTM Page 150-2

In-line connector face pinout for C103F and C103M black connectors with numbered pins and wire color codes

‹ ›
