1995 Bronco EVTM

From 1990 Ford Bronco “Eddie Bauer”, documented by SeattleFSB.

56 photos
← Back to this vehicle

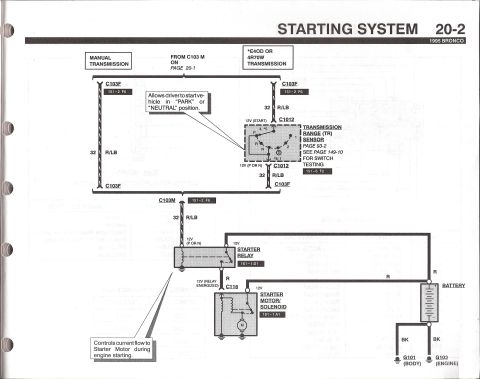

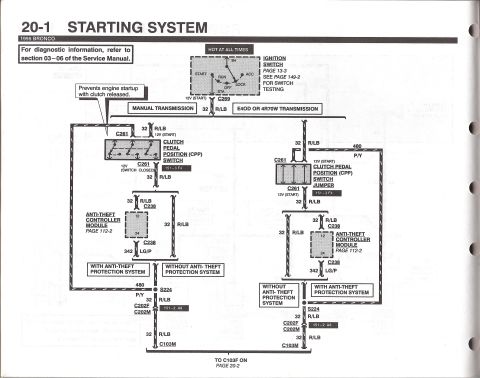

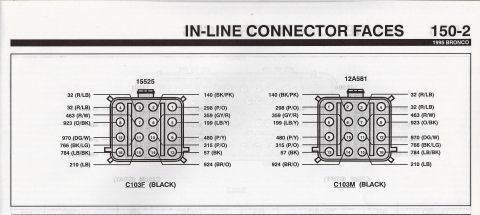

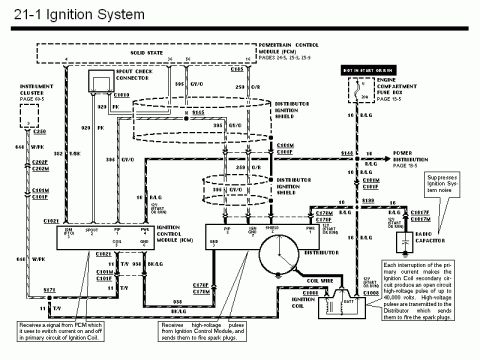

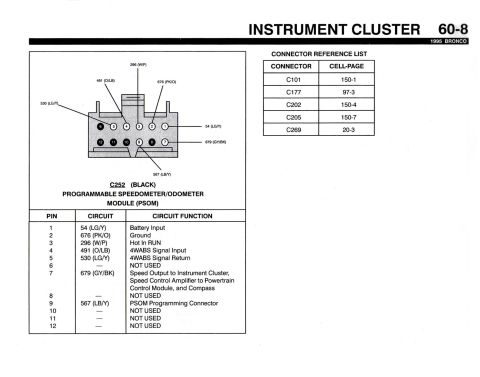

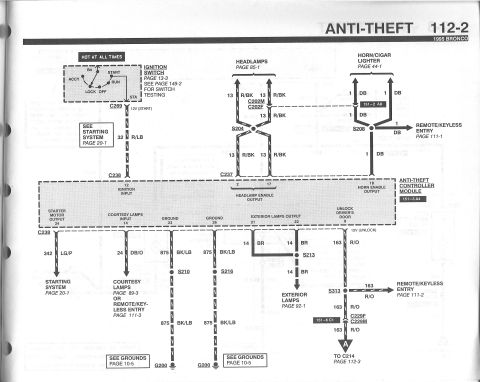

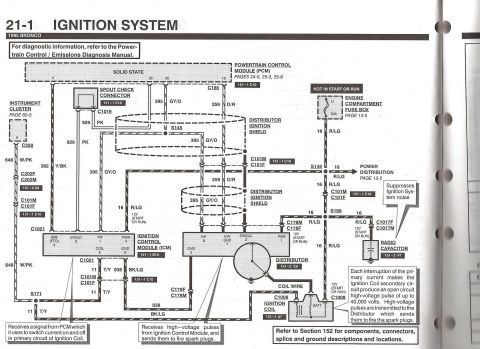

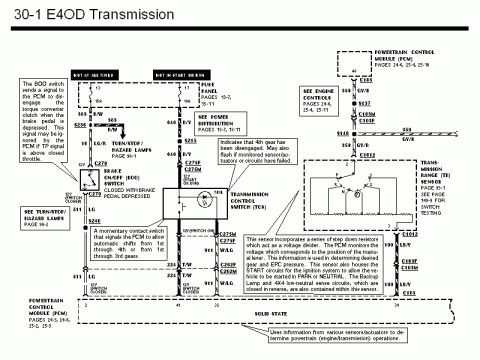

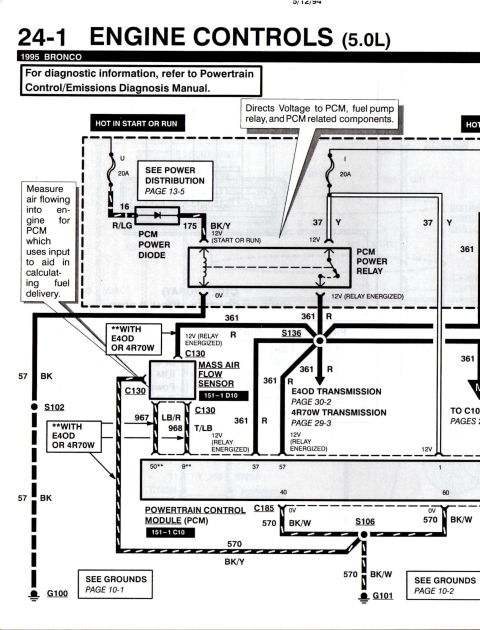

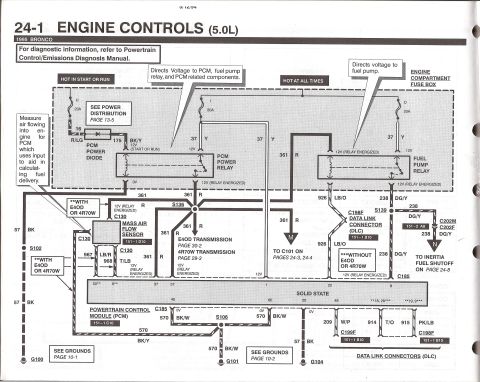

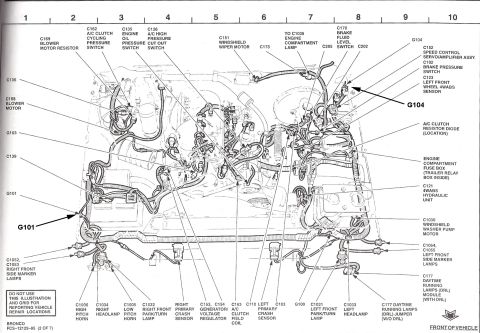

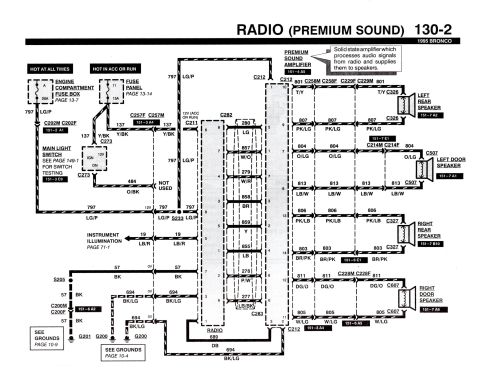

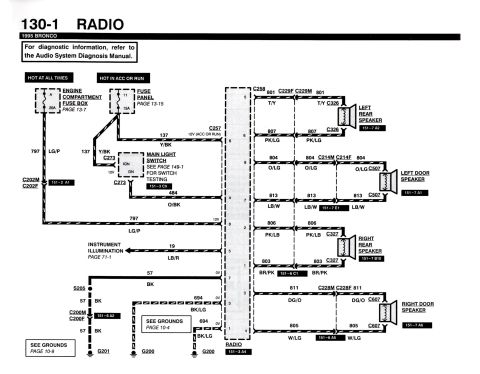

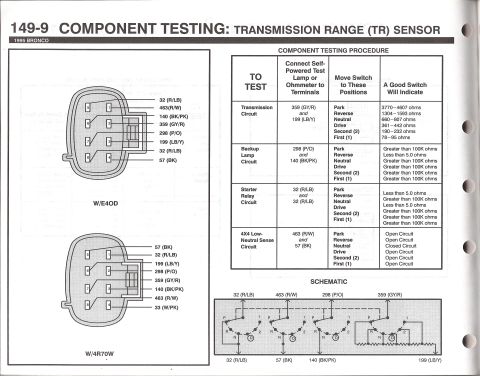

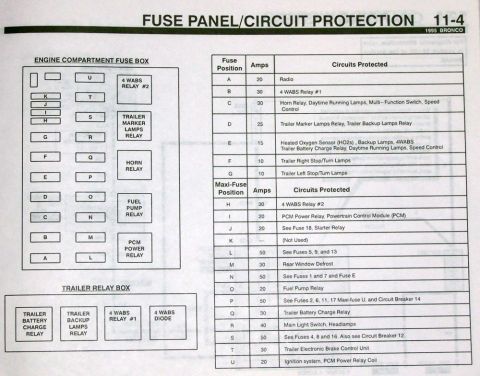

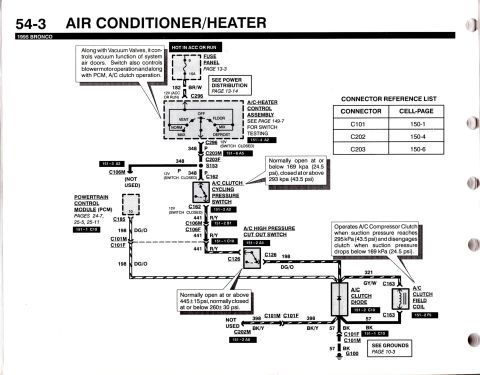

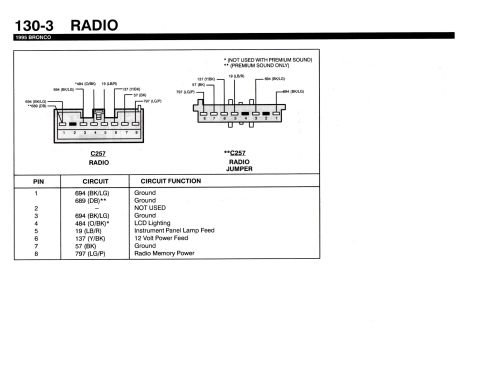

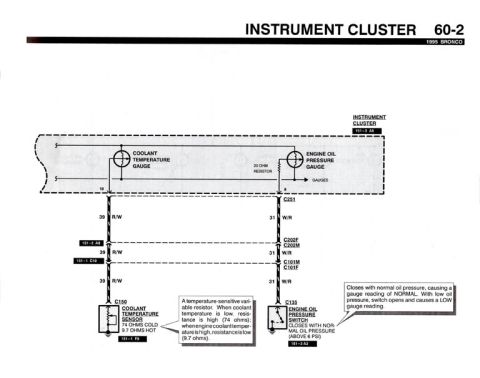

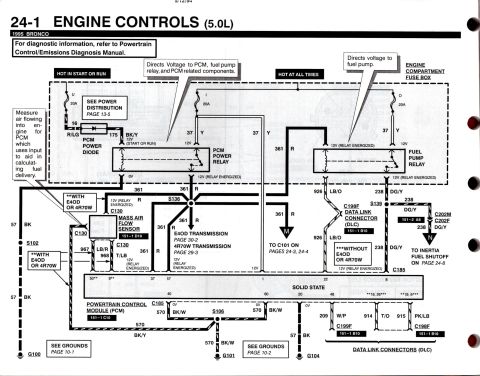

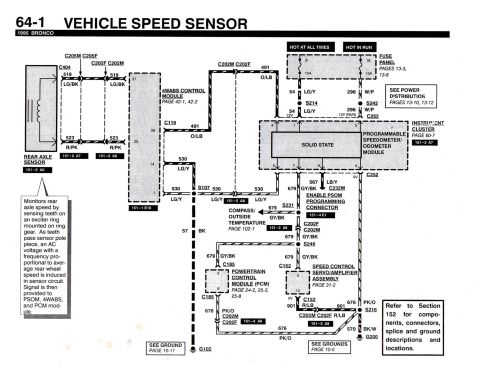

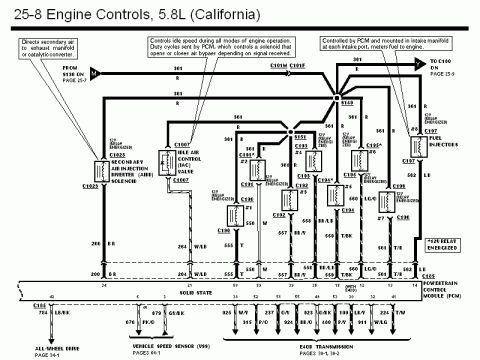

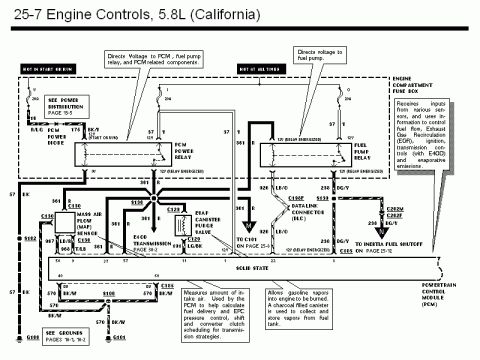

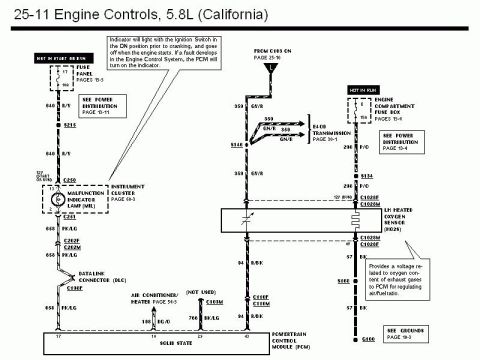

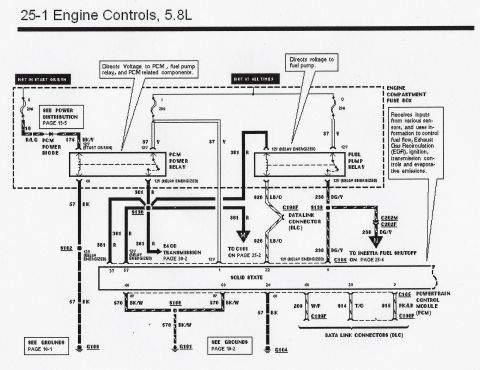

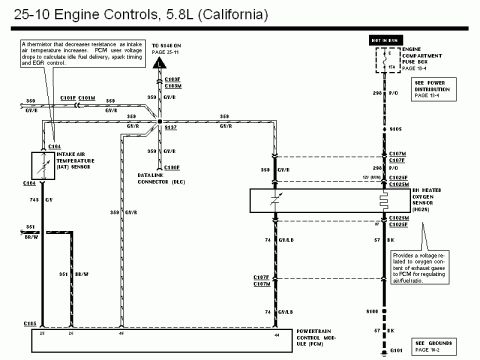

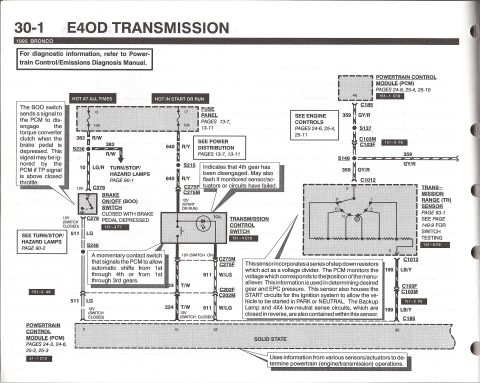

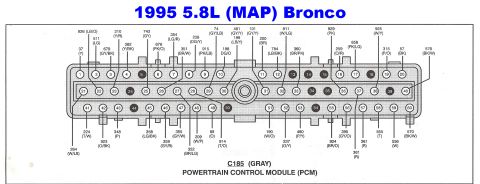

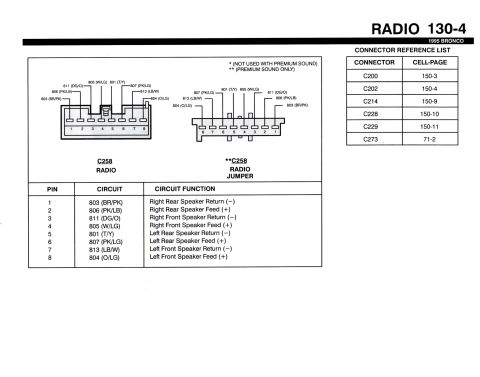

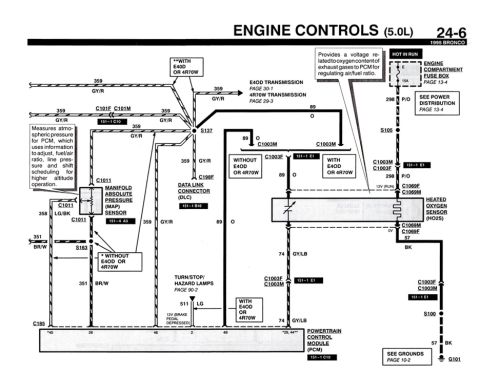

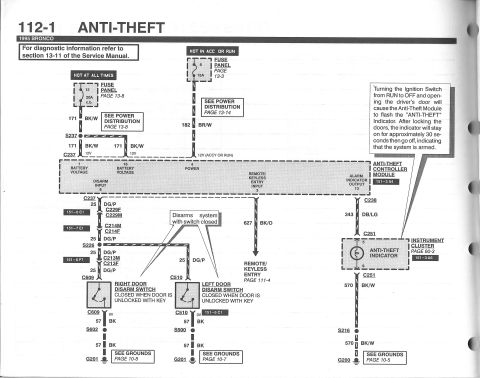

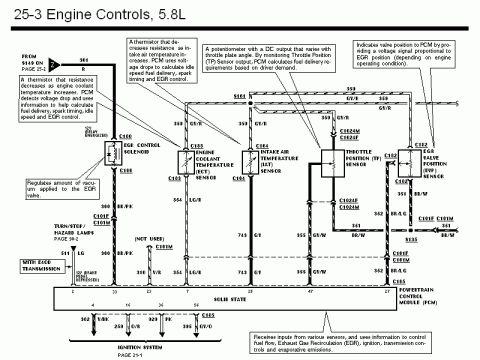

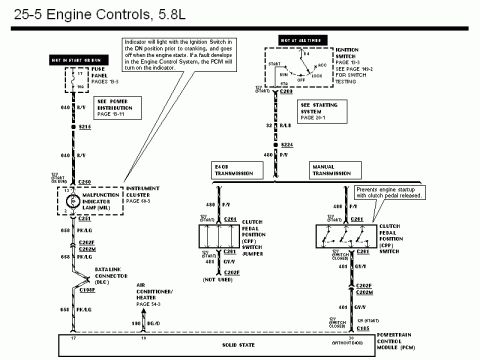

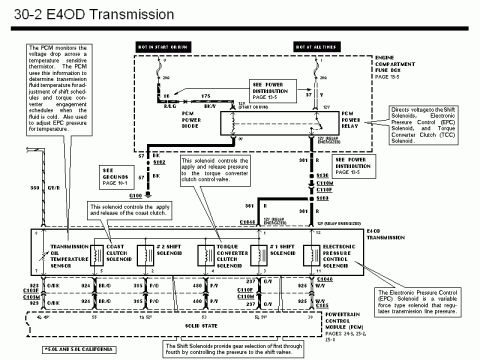

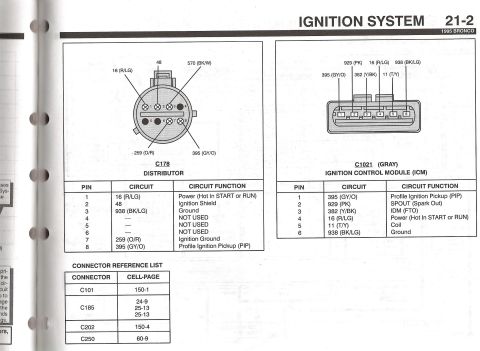

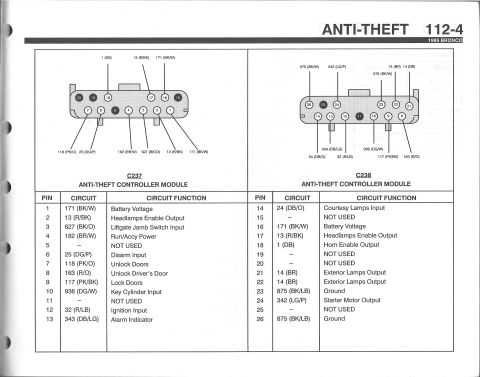

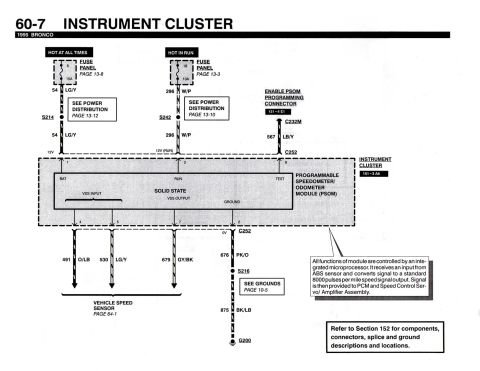

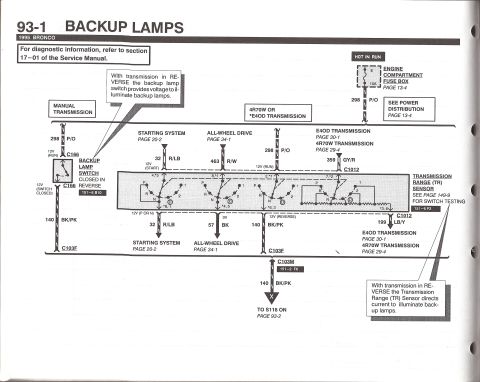

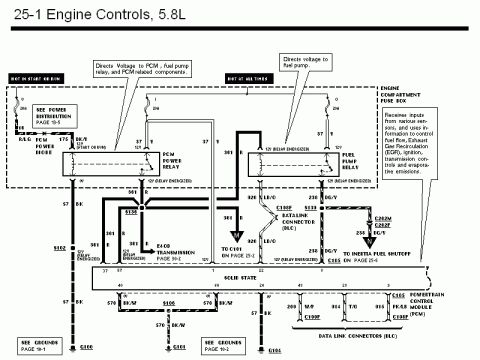

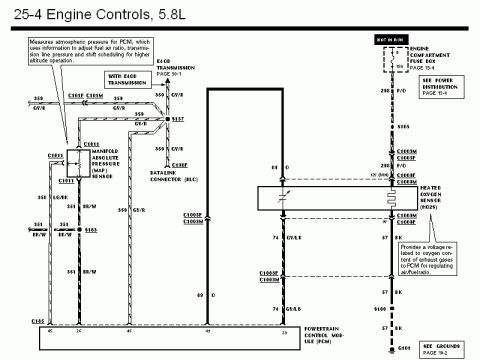

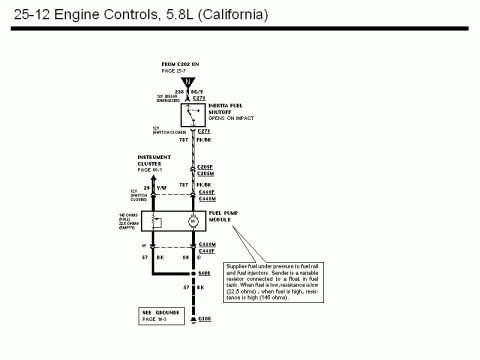

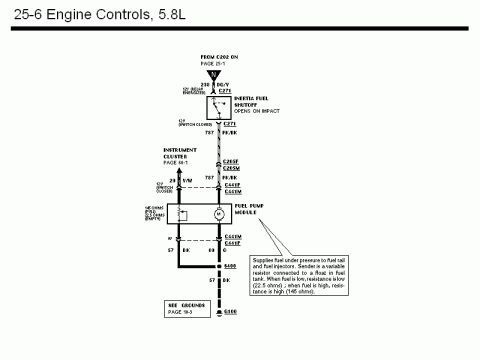

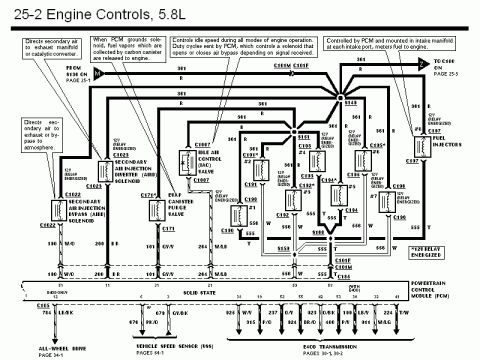

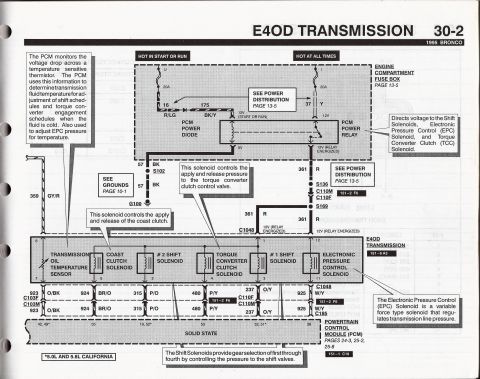

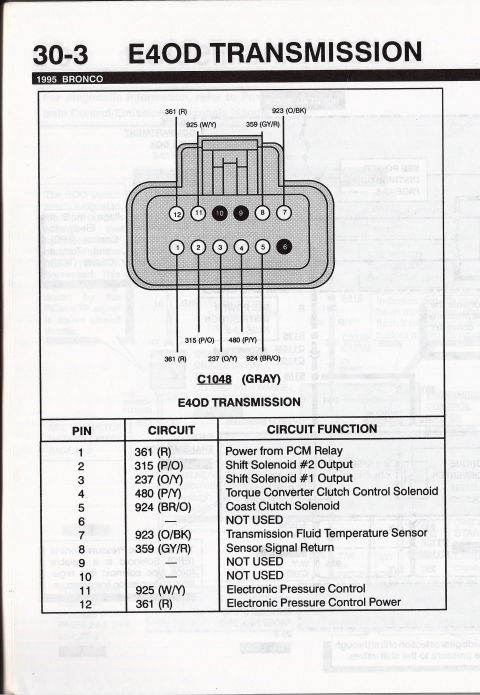

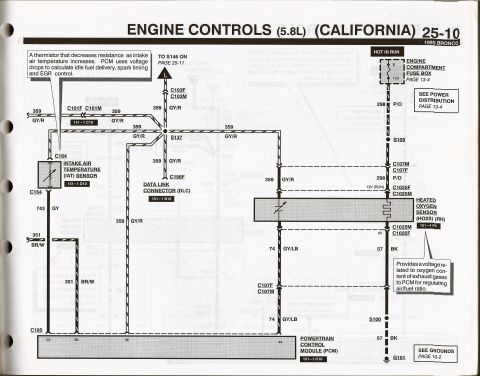

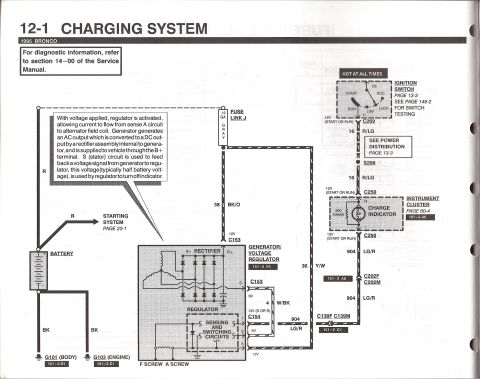

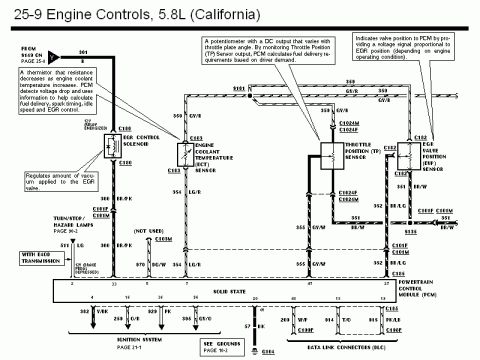

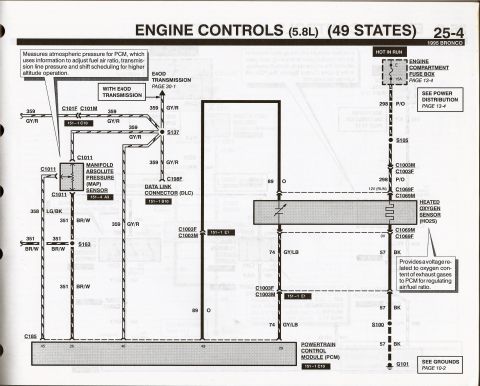

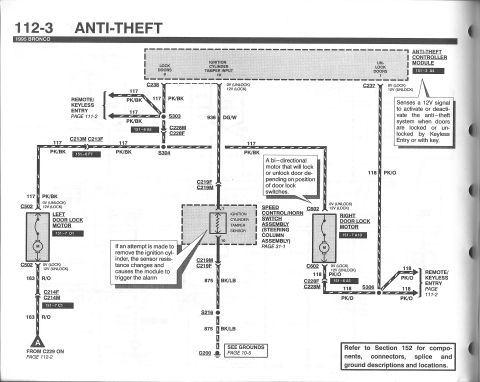

1990 Ford Bronco - Wiring diagram for the 1995 Bronco starting system showing ignition switch, clutch pedal position switch, and anti-theft module. 1990 Ford Bronco - Starting system schematic showing 32 R/LB start circuit through the TR sensor (allows start in Park/Neutral), starter relay, and starter mo… 1990 Ford Bronco - Page 21-1 1990 Ford Bronco - Page 21-1 1990 Ford Bronco - Ignition system wiring diagram showing PCM, ignition control module, distributor and coil circuits with color-coded wires. 1990 Ford Bronco - Page 21-2 1990 Ford Bronco - Page 25-1 1990 Ford Bronco - Wiring diagram showing 5.8L engine control power distribution, PCM and fuel pump relays, and data link connector circuits. 1990 Ford Bronco - Wiring diagram of 5.8L engine controls showing fuel injectors, idle air control valve, EVAP purge, and secondary air solenoids. 1990 Ford Bronco - Wiring diagram of 5.8L sensor circuits including engine coolant temp, intake air temp, throttle position, and EGR valve position. 1990 Ford Bronco - Wiring diagram of 5.8L engine controls showing manifold absolute pressure sensor and heated oxygen sensor circuits to the PCM. 1990 Ford Bronco - Wiring diagram of 5.8L engine controls showing malfunction indicator lamp, ignition switch, and clutch pedal position switch circuits. 1990 Ford Bronco - Wiring diagram of 5.8L engine controls showing inertia fuel shutoff switch and fuel pump module sender circuits. 1990 Ford Bronco - Wiring diagram of California 5.8L engine controls showing PCM/fuel pump relays, mass air flow sensor, and EVAP purge circuits. 1990 Ford Bronco - Wiring diagram of California 5.8L engine controls showing fuel injectors, idle air control valve, and secondary air injection solenoid. 1990 Ford Bronco - Wiring diagram of California 5.8L sensor circuits including coolant temp, throttle position, EGR control, and EGR valve position sensors. 1990 Ford Bronco - Wiring diagram of California 5.8L engine controls showing intake air temp sensor and RH heated oxygen sensor circuits to the PCM. 1990 Ford Bronco - Wiring diagram for 5.8L California engine controls showing the powertrain control module, heated oxygen sensor, malfunction indicator lamp… 1990 Ford Bronco - Wiring diagram showing the 5.8L California engine-control fuel pump module circuit with color-coded wires and connector callouts. 1990 Ford Bronco - Wiring diagram for the E4OD transmission showing brake on/off switch, transmission control switch, and range sensor circuits. 1990 Ford Bronco - Wiring diagram of E4OD transmission shift solenoids, torque converter clutch, electronic pressure control, and oil temp sensor. 1990 Ford Bronco - Page 30-2 1990 Ford Bronco - Page 30-3 1990 Ford Bronco - Engine-compartment component-location diagram mapping connectors (C-numbers) and grounds (G100/G101/G104) to physical positions: blower res… 1990 Ford Bronco - Engine-compartment component-location diagram mapping connectors (C-numbers) and grounds (G100/G101/G104) to physical positions: blower res… 1990 Ford Bronco - Page 25-4 1990 Ford Bronco - Page 25-10 1990 Ford Bronco - In-line connector faces (150-2, 1995 Bronco) showing C103F and C103M pin layouts with circuit numbers and wire color codes. 1990 Ford Bronco - Wiring diagram for the 1995 Bronco anti-theft system showing controller module, door switches, and color-coded circuits. 1990 Ford Bronco - Wiring diagram for the 1995 Bronco anti-theft system showing ignition, headlamp, and remote keyless entry circuits. 1990 Ford Bronco - Wiring diagram for the 1995 Bronco anti-theft system showing door lock motors and ignition cylinder tamper sensor circuits. 1990 Ford Bronco - Connector pin-out chart for the anti-theft controller module listing pin, circuit color code, and function for C237 and C238. 1990 Ford Bronco - This document page lists anti-theft system connectors and their reference pages. 1990 Ford Bronco - Wiring diagram for the 1995 Bronco E4OD transmission showing PCM, transmission range sensor, and color-coded circuits. 1990 Ford Bronco - Wiring diagram for the 1995 Bronco backup lamp circuit showing transmission range sensor and backup lamp switch. 1990 Ford Bronco - Transmission Range sensor test chart for E4OD/4R70W: ohmmeter resistance values per gear position to verify start, backup-lamp, and 4x4 low… 1990 Ford Bronco - 5.0L engine-controls schematic showing PCM, PCM power relay/diode, fuel pump relay, mass air flow sensor, E4OD/4R70W transmission feeds and… 1990 Ford Bronco - Engine-compartment fuse box and trailer relay box diagram with a fuse-position table listing amperage and protected circuits, including 4WA… 1990 Ford Bronco - Charging system wiring diagram for a 1995 Bronco showing the generator/voltage regulator, battery, charge indicator and color-coded circuit… 1990 Ford Bronco - Powertrain control module C185 gray connector pin-out diagram for a 1995 5.8L Bronco showing each pin position with its wire color code. 1990 Ford Bronco - 1995 Bronco 5.0L engine controls wiring (24-1) showing PCM power relay, fuel pump relay, PCM power diode, MAF sensor, data link connectors… 1990 Ford Bronco - 1995 Bronco 5.0L engine controls wiring (24-1, second crop) detailing PCM power diode/relay, fuel pump relay, MAF sensor, E40D/4R70W transm… 1990 Ford Bronco - A/C-heater schematic for 1995 Ford Bronco: PCM-controlled A/C clutch, cycling pressure switch and high-pressure cut-out switch with kPa/psi… 1990 Ford Bronco - Radio wiring diagram for a 1995 Bronco showing speaker circuits, fuse panel, illumination feed and color-coded wiring. 1990 Ford Bronco - Premium sound radio wiring diagram for a 1995 Bronco showing the amplifier, speaker circuits and color-coded wiring. 1990 Ford Bronco - Radio C257 connector pin-out diagram for a 1995 Bronco with a table listing each pin's circuit number and function. 1990 Ford Bronco - Radio C258 connector pin-out diagram for a 1995 Bronco with a pin-to-speaker-circuit function table and connector reference list. 1990 Ford Bronco - Engine controls wiring diagram for a 1995 5.0L Bronco showing the fuel pump module, inertia fuel shutoff and color-coded circuits. 1990 Ford Bronco - Wiring diagram of the instrument cluster showing coolant temperature and oil pressure gauge circuits with color-coded wires. 1990 Ford Bronco - Wiring diagram of the warning chime circuit showing fuse panels, switches, the chime module and color-coded wires. 1990 Ford Bronco - Wiring diagram of warning chime module connector C280 with pin-by-pin circuit functions and wire color codes. 1990 Ford Bronco - Service manual component location view showing connectors and wiring harness routing behind the instrument panel. 1990 Ford Bronco - Wiring diagram of the 5.0L engine controls showing the PCM, MAP sensor, heated oxygen sensor and color-coded circuits. 1990 Ford Bronco - This is a wiring diagram for the 1995 Bronco instrument cluster. It shows the connections for the solid state unit and the programmable spe… 1990 Ford Bronco - This is a document showing a wiring diagram for the instrument cluster of a 1995 Bronco. It includes a connector reference list and a detai… 1990 Ford Bronco - This is a diagram of the vehicle speed sensor system for a 1995 Ford Bronco. It shows the wiring and components involved in monitoring and…
