1995 Ford Bronco Anti-Theft Module Connector Pinout C237 C238 (Page 112-4)

Anti-theft controller module connector pin-out chart, connectors C237 and C238
Anti-theft controller module connector pin-out chart, connectors C237 and C238Original file
Anti-theft controller module connector pin-out chart, connectors C237 and C238

Reference · 1987-1991 BroncoAll 175 wiring diagrams

Ford EEC-IV SD to MAF Computer Pin-Out Chart: Pins 49-60 (1990-1995) Ford EEC-IV SD to MAF Computer Pin-Out Chart: Pins 22-48 (1990 Bronco) Ford EEC pins 1-21 speed density to mass air pin-out chart for 5.0L and 5.8L Truck, Van, Bronco and Mustang Ford EGR Valve Position Sensor (EVP) Connector Pinout Diagram - 1990 Bronco 1989-95 Ford MAF Sensor Connector Pinout Diagram - Pins A-D Wiring Truck computer pin-out chart for 87-95 302/351 truck, van and Bronco, speed density and mass air Ford MAP Sensor Connector Pinout Diagram - VOLT REF, MAP, SIG RTN 1995 Ford Bronco Anti-Theft Module Connector Pinout C237 C238 (Page 112-4) Ford 3G Alternator Wiring Diagram - Mega Fuse, Charge Lamp & Wire Colors KC Driving Lights & LED Light Bar Relay Wiring Diagram - Ford Bronco Aux Lights 175wiring diagrams1987-1991 Ford Bronco More reference Ford Thermactor Air Bypass Valve Cutaway Diagram - Port IdentificationSchematic Ford Canister Purge Regulator Valve (CANP 9C915) Test Procedure - Figure 11Service procedure Ford 5.8L important engine information decal with 10° BTDC timing check and ASF-32C plugSpec plate Ford 5.0L V8 PCV Valve & Hose Routing Diagram - 9A474, 6B890, 6A664Exploded parts Ford 5.0L/5.8L Air Throttle Body Assembly Diagram - Canister Purge Ports & TPSManual page 1990 Bronco Major Standard Equipment sheet with interior features and functional specs by trimBrochure Borgeson Steering Intermediate Shaft Measurement Diagram - U-Joint Length B & CBlueprint Ford Thermactor Combination Valve Diagram - Air Bypass/Control Ports LabeledVacuum routing 1990 Ford Bronco Fuse Panel Diagram: Fuse Positions, Amps & Circuits (11-2)Fuse chart Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud LocationsTorque spec

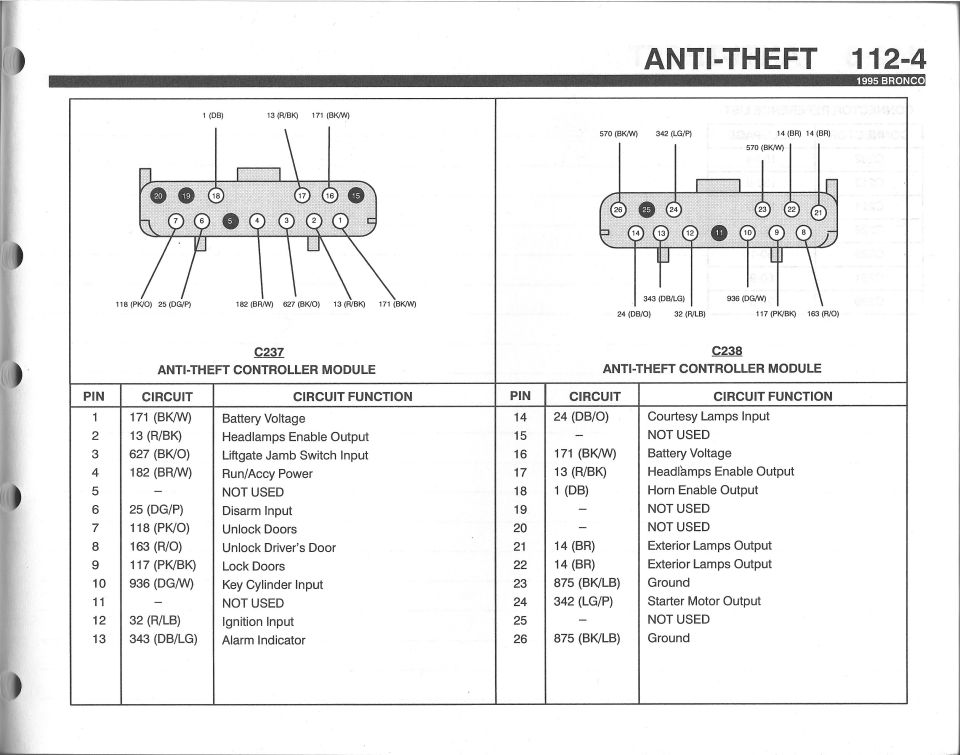

Connector pin-out chart for the anti-theft controller module listing pin, circuit color code, and function for C237 and C238.

Part of 1987-1991 Ford Bronco Wiring Diagrams

AI caption · Photo 916 of 1787

This document is page 112-4 of the 1995 Ford Bronco factory electrical/wiring reference, covering the Anti-Theft system. It shows connector face views for the two Anti-Theft Controller Module connectors, C237 (pins 1-7 and 15-20) and C238 (pins 8-14 and 21-26), with wire circuit numbers and color codes labeled at each cavity. A complete pinout table lists all 26 pins with their circuit numbers, wire colors, and functions: battery voltage (171 BK/W), headlamps enable output (13 R/BK), liftgate jamb switch input (627 BK/O), run/accessory power (182 BR/W), disarm input (25 DG/P), unlock doors (118 PK/O), unlock driver's door (163 R/O), lock doors (117 PK/BK), key cylinder input (936 DG/W), ignition input (32 R/LB), alarm indicator (343 DB/LG), courtesy lamps input (24 DB/O), horn enable output (1 DB), exterior lamps output (14 BR), grounds (875 BK/LB), and starter motor output (342 LG/P). Several pins (5, 11, 15, 19, 20, 25) are marked NOT USED. A reader can use this page to identify each wire at the anti-theft module for diagnosis, testing, or aftermarket alarm integration on a 1995 Bronco.

This document covers 1995, which may differ from this 1990 Ford Bronco.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What connectors are shown for the 1995 Bronco anti-theft controller module?
Two connectors are shown: C237 (containing pins 1-7 and 15-20) and C238 (containing pins 8-14 and 21-26), both labeled ANTI-THEFT CONTROLLER MODULE.
Which wire provides battery voltage to the anti-theft module?
Circuit 171 (BK/W - black/white) provides battery voltage at pins 1 and 16.
What wire controls door locking and unlocking on the anti-theft module?
Pin 7 circuit 118 (PK/O) is Unlock Doors, pin 8 circuit 163 (R/O) is Unlock Driver's Door, and pin 9 circuit 117 (PK/BK) is Lock Doors.
Which pins on the anti-theft module are not used?
Pins 5, 11, 15, 19, 20, and 25 are marked NOT USED.
What is the ground circuit for the 1995 Bronco anti-theft module?
Ground is circuit 875 (BK/LB - black/light blue) at pins 23 and 26.
