1996 Ford Bronco A/C High Side Service Port Diagram - Charging Valve Cap 19D702

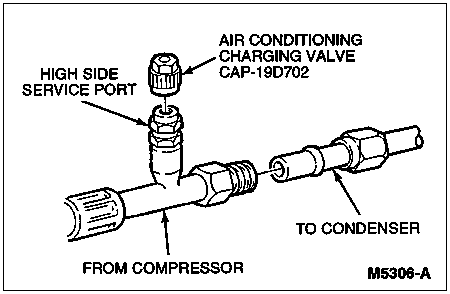

This document is a labeled line-art illustration of the high-side (discharge) service port on an automotive air conditioning system. The drawing shows a section of refrigerant line running from the compressor toward the condenser, with a threaded service port fitting branching off the line. Callouts identify four items: the AIR CONDITIONING CHARGING VALVE CAP (Ford base part number 19D702) that screws onto the top of the port, the HIGH SIDE SERVICE PORT itself, the line direction labeled FROM COMPRESSOR, and the connecting line labeled TO CONDENSER. The illustration reference number M5306-A appears in the lower right corner. A reader can learn where the high-side service port is located in the A/C plumbing (between the compressor discharge and the condenser inlet), what the port assembly looks like (including the knurled cap and threaded fittings), and the part number designation for the charging valve cap. This would be useful when locating the correct port for connecting a manifold gauge set or recovery/recharge equipment on the high-pressure side of the system, or when replacing a missing or damaged charging valve cap.
