What pin is the VSS on a 1987-95 Ford truck computer?

VSS (+) is on pin 3 and VSS (-) is on pin 6 for both Speed Density and Mass Air computers, including E4OD versions.

Which pins are the extra injectors on the 94-95 Mass Air truck computer?

INJ 6 is pin 12, INJ 7 is pin 13, INJ 8 is pin 14, and INJ 5 is pin 15 on the 94-95 302/351 Mass Air computer.

Where is the MAF return signal on the Mass Air computer?

MAF-RTN is on pin 9 of the 94-95 302/351 Mass Air computer. On the 87-95 Speed Density computer, pin 9 is Data Bus (-) for 90-95.

What E4OD-specific pins are added on 89-95 trucks?

E4OD additions include BOO on pin 2 (both Speed Density and Mass Air), 4LOW input on pin 12 and SS2 on pin 19 (Speed Density column).

What injector size does this chart list for 302/351 truck computers?

Both the 87-95 Speed Density and 94-95 Mass Air 302/351 computers are listed with 19 lb/Hr injectors.

Home/ Registry/ Ford/ Bronco/ 1987-1991/ “Eddie Bauer”/ Photo supermotors.net/registry/media/893671

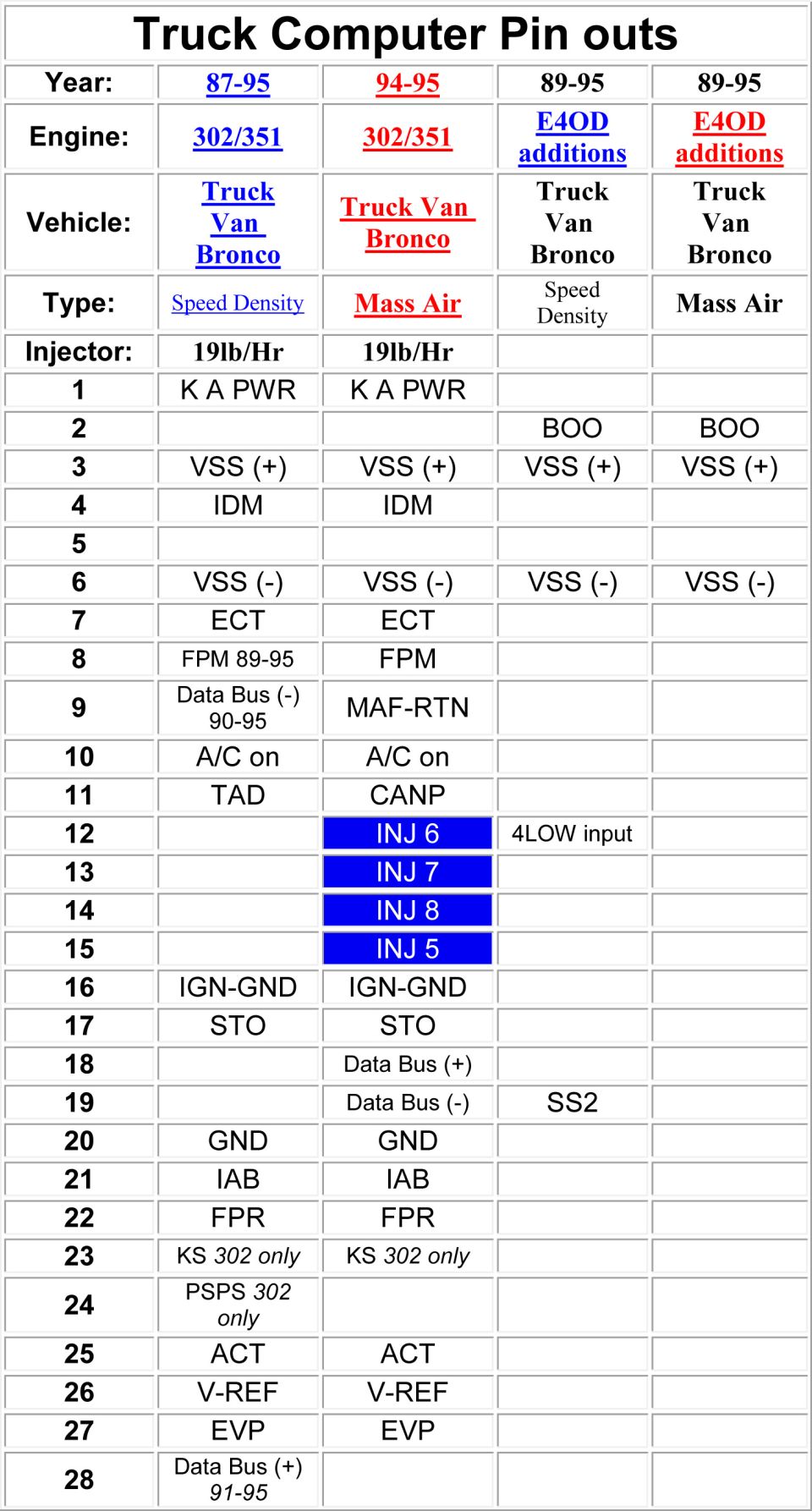

Ford Truck/Van/Bronco 87-95 EEC-IV Computer Pinout Chart - SD & Mass Air

Ford truck computer EEC pin-out reference table, pins 1-28

‹ ›

Reference · 1987-1991 BroncoAll 53 manual pages

'95 Bronco anti-theft connector reference list, manual page 112-5

Ford 4-Speed Automatic Transmission Pan ID Chart - AOD, AODE, E4OD, A4LD

Ford Three-Speed Automatic Transmission Pan Gasket ID Chart - C3 C4 C5 C6 FMX

Ford EEC-IV Computer Pin-Out Chart Pins 29-60 - Fuel Injector & Trans Signals

Ford Truck/Van/Bronco 87-95 EEC-IV Computer Pinout Chart - SD & Mass Air

Cover of the 1990 Bronco/F150-F350 F-Super Duty Electrical & Vacuum Troubleshooting Manual

Fuel Injector Sizing Formula - HP x BSFC Calculation & lbs/hr to cc/min Convert

TPS voltage table by make, KOEO closed throttle and WOT volts for GM, Chrysler, Ford and others

Ford V8 camshaft application chart for 351W and 221-302 CI engines with duration, lift and lobe separation

1988 Ford Bronco Build Cost Sheet - "Mr. Hyde the Deuce" Parts & Expense List

Ford automatic transmission identification chart of oil pan shapes for C3, C4, C6, MX, FX, FMX and Borg Warner

53manual pages1987-1991 Ford Bronco More reference

1973-1974 Ford Point-Type Ignition System Circuit Diagram - Coil & Distributor

Wiring diagram

Ford Thermactor Air Bypass Valve Cutaway Diagram - Port Identification

Schematic

Ford Canister Purge Regulator Valve (CANP 9C915) Test Procedure - Figure 11

Service procedure

Ford 5.8L important engine information decal with 10° BTDC timing check and ASF-32C plug

Spec plate

Ford 5.0L V8 PCV Valve & Hose Routing Diagram - 9A474, 6B890, 6A664

Exploded parts

1990 Bronco Major Standard Equipment sheet with interior features and functional specs by trim

Brochure

Borgeson Steering Intermediate Shaft Measurement Diagram - U-Joint Length B & C

Blueprint

Ford Thermactor Combination Valve Diagram - Air Bypass/Control Ports Labeled

Vacuum routing

1990 Ford Bronco Fuse Panel Diagram: Fuse Positions, Amps & Circuits (11-2)

Fuse chart

Ford V8 Intake Manifold Bolt Tightening Sequence Diagram - Stud Locations

Torque spec

Reference table listing Ford truck EEC computer pin-out assignments by year, engine, and pin number for pins 1-28.

Part of 1987-1991 Ford Bronco Manual Pages

AI caption October 2011 · Photo 889 of 1787

This document is a reference chart titled "Truck Computer Pin outs" comparing EEC-IV computer (ECU/PCM) connector pin assignments for Ford Truck, Van, and Bronco vehicles with 302/351 engines. It compares four columns: 1987-95 Speed Density computers, 1994-95 Mass Air computers (both using 19 lb/hr injectors), and 1989-95 E4OD transmission additions for both Speed Density and Mass Air types. The chart lists pins 1 through 28, showing signal assignments such as Keep Alive Power (pin 1), VSS (+) on pin 3 and VSS (-) on pin 6, IDM (pin 4), ECT (pin 7), FPM (pin 8), MAF-RTN (pin 9 on Mass Air), A/C on (pin 10), TAD vs CANP (pin 11), injectors 5-8 on pins 12-15 (Mass Air only, highlighted), IGN-GND (16), STO (17), Data Bus (+/-) (18/19 Mass Air; 9 and 28 on Speed Density for certain years), GND (20), IAB (21), FPR (22), KS (23, 302 only), PSPS (24, 302 only, Speed Density), ACT (25), V-REF (26), and EVP (27). E4OD-specific pins include BOO (pin 2), 4LOW input (pin 12), and SS2 (pin 19). This chart is useful for Speed Density to Mass Air conversion wiring on Ford trucks.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What pin is the VSS on a 1987-95 Ford truck computer?: VSS (+) is on pin 3 and VSS (-) is on pin 6 for both Speed Density and Mass Air computers, including E4OD versions.
Which pins are the extra injectors on the 94-95 Mass Air truck computer?: INJ 6 is pin 12, INJ 7 is pin 13, INJ 8 is pin 14, and INJ 5 is pin 15 on the 94-95 302/351 Mass Air computer.
Where is the MAF return signal on the Mass Air computer?: MAF-RTN is on pin 9 of the 94-95 302/351 Mass Air computer. On the 87-95 Speed Density computer, pin 9 is Data Bus (-) for 90-95.
What E4OD-specific pins are added on 89-95 trucks?: E4OD additions include BOO on pin 2 (both Speed Density and Mass Air), 4LOW input on pin 12 and SS2 on pin 19 (Speed Density column).
What injector size does this chart list for 302/351 truck computers?: Both the 87-95 Speed Density and 94-95 Mass Air 302/351 computers are listed with 19 lb/Hr injectors.
