What wire colors does the 1994 Bronco vehicle speed sensor (acceleration sensor) use?

The sensor circuits are 886 O/BK (orange/black), 887 Y (yellow), and 863 O/W (orange/white), running through connectors C402, C205, C202 and C119 to the 4WABS Control Module.

Which fuses power the 1994 Bronco speedometer/odometer (PSOM) circuit?

Fuse 8 (15A, hot at all times) feeds circuit 54 LG/Y, and fuse 18 (10A, hot in run) feeds circuit 296 W/P to the Programmable Speedometer/Odometer Module.

What wire carries the speed signal from the PSOM to the PCM and cruise control?

Circuit 679 GY/BK (gray/black) runs from the PSOM through splice S246 to the Powertrain Control Module (via C185) and the Speed Control Servo/Amplifier Assembly (via C216).

How does the 1994 Bronco rear axle speed sensor work?

It monitors rear axle speed by sensing teeth on an exciter ring mounted on the ring gear. As teeth pass the sensor pole piece, an AC voltage with a frequency proportional to average rear wheel speed is induced, and the signal is sent to the PSOM, 4WABS, and PCM modules.

Where are the grounds for the vehicle speed sensor circuit?

Circuit 57 BK goes to ground G100 (see page 10-16), and circuit 570 BK/W goes to ground G200 (see page 10-10).

Home/ Registry/ Ford/ Bronco/ 1992-1996/ “Eddie Bauer”/ Photo supermotors.net/registry/media/1157084

1994 Ford Bronco Vehicle Speed Sensor Wiring Diagram - EVTM Page 64-2 PSOM VSS

1994 Bronco/F-Series Vehicle Speed Sensor wiring diagram with color-coded circuits

‹ ›

Reference · 1992-1996 BroncoAll 411 wiring diagrams

1994 Ford Bronco/F-Series Instrument Cluster PSOM Wiring Diagram - EVTM 60-7

1994 Ford Bronco/F-Series PSOM C252 Connector Pinout - Speedometer Wiring

1994 Ford Bronco 4WABS ABS Wiring Diagram - EVTM Page 42-4

1994 Ford Bronco Vehicle Speed Sensor Wiring Diagram - EVTM Page 64-2 PSOM VSS

Ford Bronco Tailgate Power Window Relay Wiring Diagram - SPDT Relay Upgrade

1994 Ford Bronco Custom Amp Rack Wiring Diagram - Hifonics Amplifier Layout

Digital Monoblock Amp Speaker Connections Diagram - Subwoofer Wiring 1-8 Ohm

Car Audio Amp Rack Wiring Diagram - Sundown SVC-2000D & Hifonics BRX 1616.4

1996 Ford Bronco C202F 76-Pin Connector Pinout - EVTM Page 150-4

1994 Ford Bronco/F-Series C103 & C108 Connector Pinouts - EVTM Page 150-2

1994 Ford Bronco/F-Series EVTM 150-2: C103 & C108 In-Line Connector Pinouts

Ford Bronco VSS to PCM Wiring Diagram - Rear Axle Sensor, PSOM, ABS Circuit

411wiring diagrams1992-1996 Ford Bronco More reference

Ford Bronco Front Coil Spring & Shock Absorber Exploded Diagram (F2858-Q)

Exploded parts

Titan Engines Install Notes, Core Return & Warranty Info Sheet - Ocala FL

Service procedure

1994 Ford Bronco Door Jamb VIN Data Plate - GVWR, Axle & Paint Codes

Spec plate

Ford Transmission Pan Identification Chart - C4, C5, C6, AOD, E4OD, 4R70W

Manual page

1994 Ford Bronco Negative Battery Cable Diagram - Ground Cable Lengths

Schematic

Blueprint

Heavy-Duty Headlight Harness 1980-96 Ford Bronco/Truck - Part Numbers & Prices

Brochure

1988 Ford 5.8L Calibration 8-64H-R00 VECI Label & Parts List (E8AE-9C485 AGA)

Vacuum routing

Ford Bronco/F-Series Fuse 18 (10A) - Speedometer, Air Bag, Shift Control

Fuse chart

Driveshaft Operating Angle vs Shaft RPM Chart - Pinion Angle at Speed

Torque spec

Wiring diagram for the 1994 Bronco/F-Series vehicle speed sensor circuit with color-coded wires and connector references.

Part of 1992-1996 Ford Bronco Wiring Diagrams

AI caption February 2020 · Photo 2991 of 2998

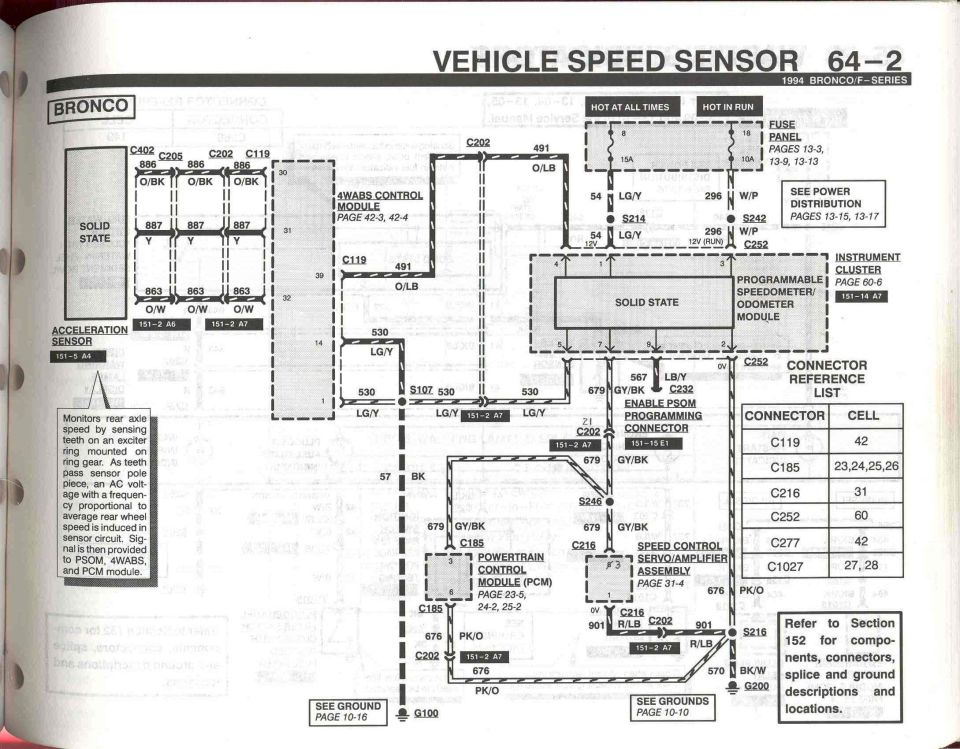

This is page 64-2 of the 1994 Ford Bronco/F-Series Electrical & Vacuum Troubleshooting Manual (EVTM), showing the Vehicle Speed Sensor circuit for the Bronco. The diagram traces the solid-state Acceleration Sensor (rear axle speed sensor) through circuits 886 (O/BK), 887 (Y), and 863 (O/W) to the 4WABS Control Module, and circuit 530 (LG/Y) and 491 (O/LB) to the Programmable Speedometer/Odometer Module (PSOM) in the instrument cluster. Power is supplied from the fuse panel: fuse 8 (15A, hot at all times) via circuit 54 LG/Y, and fuse 18 (10A, hot in run) via circuit 296 W/P. The PSOM outputs speed signal 679 GY/BK to the Powertrain Control Module (PCM) and Speed Control Servo/Amplifier Assembly, plus circuits 567 LB/Y (PSOM programming connector), 676 PK/O, 901 R/LB, and grounds 57 BK (G100) and 570 BK/W (G200). A sidebar explains that the sensor monitors rear axle speed via exciter ring teeth, producing an AC voltage proportional to average rear wheel speed for the PSOM, 4WABS, and PCM. A connector reference table cross-references connectors C119, C185, C216, C252, C277, and C1027 to their cell locations, with pointers to related pages for power distribution, grounds, and module details.
