1979 Bronco general specifications page with dimensioned body dr…

1979 Bronco general specifications page with dimensioned body drawings, seat room and powertrain table
1979 Bronco general specifications page with dimensioned body drawings, seat room and powertrain tableOriginal file
1979 Bronco general specifications page with dimensioned body drawings, seat room and powertrain table

Reference · 1978-1979 BroncoAll 18 blueprints

1979 Bronco general specifications page with dimensioned body drawings, seat room and powertrain table F-Series crew cab Styleside pickup and chassis-cab dimension drawings with F-250 and F-350 tables 1978 Ford Bronco Custom Bumper Build - SolidWorks CAD Assembly Screenshot 1978 Ford Bronco Custom Front Bumper Build - SolidWorks Winch Bumper CAD Design Axle Flange Bolt Pattern ID Chart - Ford 8.8, 9", 12 Bolt Chevy, Mopar, Dana 60 1979 Ford Bronco Custom Bumper Blueprint - 74.5 in Fabrication Drawing 1978 Ford Bronco Custom Bumper Build - SolidWorks CAD Assembly Design View 1978 Ford Bronco Custom Bumper Build - SolidWorks CAD Assembly Screenshot DIY CB Radio Mounting Bracket Sketch - 9 1/8" x 10" Fold Pattern for 7 1/4" x 8 3/4" CB Square-End Bolt Dimension Drawing - 10-24 Thread, 3/8" OD, 1/4" Square Ford Bronco Rock Slider Design Sketch - 6 Tube Profile Options, 46" Length 1979 Ford Bronco Fabrication Sketch - 46" Ladder/Slider Blueprint with 4" Bend 18blueprints1978-1979 Ford Bronco More reference 1979 Ford Bronco Radio Connector Wiring Diagram C-530 & C-532 PinoutsWiring diagram '79 Bronco color and trim selections chart with trim combination matrix and Tu-Tone color availability tableBrochure Ford Bronco Tailgate Latch Release & Lock Control Exploded Diagram - Fig. 4Exploded parts Ford F-Series SuperCab Dimensions & Curb Weights - F-100 F-150 F-250 F-350 SpecsSpec plate Ford Bronco F-100-F-350 Cruise Control Tests - Servo, Amplifier & Road Test 37-01-8Manual page Ford Bronco & F100-F350 Front Door Window Glass Removal - Shop Manual 42-04-3Service procedure Ford Wiring Circuit Color Codes 835-907 - Wire Descriptions & Colors ChartSchematic 1979 Ford Bronco Fuse Panel Diagram - Fuse Positions F1-F12 & Amp RatingsFuse chart 1979 Ford Bronco & F100-F350 Vacuum Distribution Diagram - Hose RoutingVacuum routing Engine and Engine Overhaul page 3-16 with piston and ring specs and torque specifications tablesTorque spec

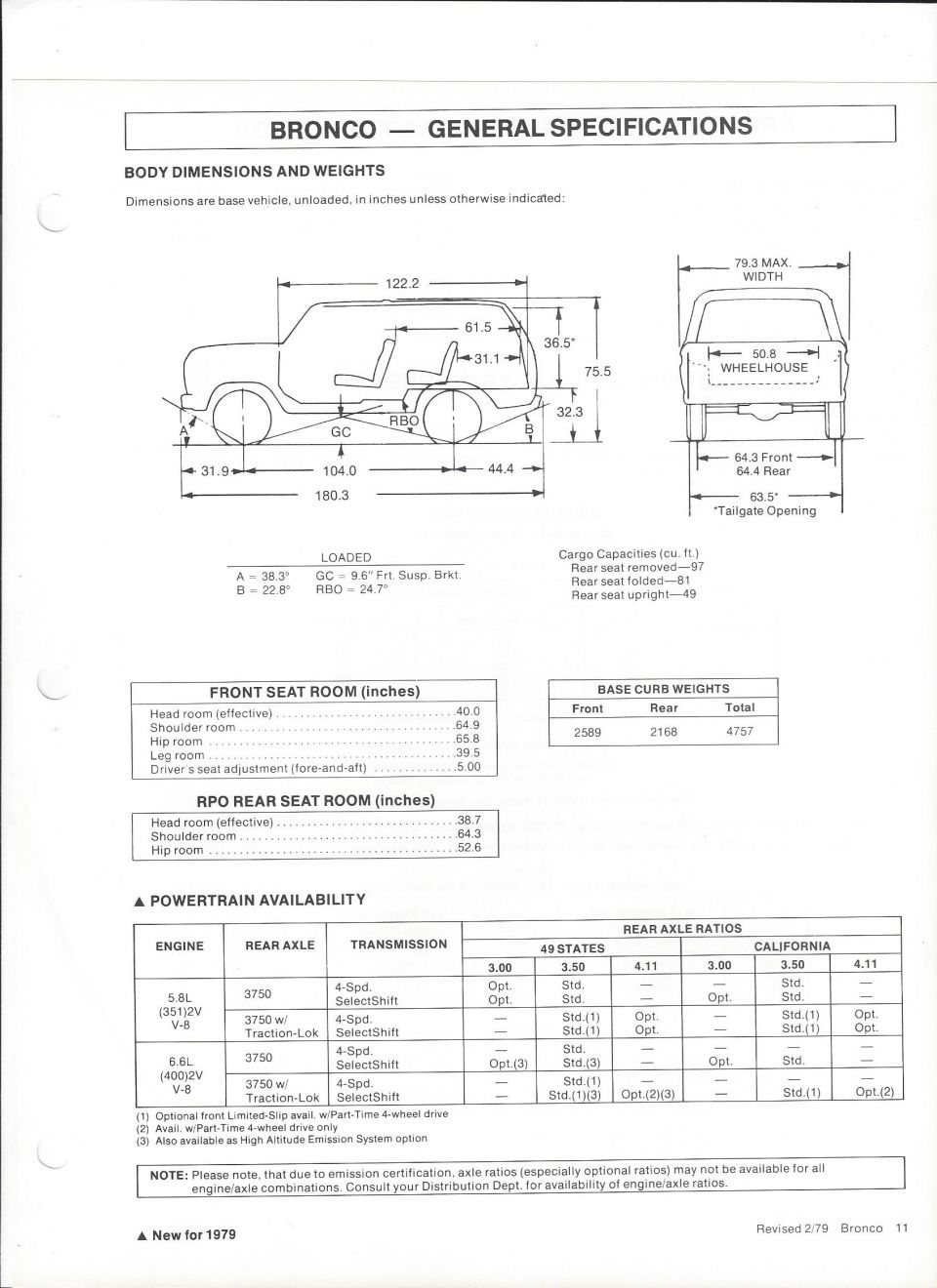

Bronco general specifications with 104.0 in wheelbase, 180.3 in length and 79.3 in max width, seat room, curb weights and 5.8L and 6.6L axle ratios.

Part of 1978-1979 Ford Bronco Blueprints
