What color is circuit 850, ballast resistor coil terminal to ignition coil battery terminal?

Circuit 850 is blue with a white stripe.

Which circuits cover the windshield wiper switch and motor to relay wiring?

Circuits 888 (red), 889 (green), 890 (yellow), 891 (yellow-black stripe), 892 (blue), and 893 (blue-orange stripe) cover windshield wiper switch/motor to relay wiring, plus circuit 895 (red) for ignition switch to wiper motor circuit breaker.

What wire color connects the alternator 'F' terminal to the regulator 'F' terminal?

Circuit 877, alternator 'F' terminal to regulator 'F' terminal, is white.

What does circuit 870 connect and what color is it?

Circuit 870 runs from the emergency stoplamp switch to the tractor-trailer plug and is black with a white stripe.

Which circuit feeds the A/C control relay from the circuit breaker?

Circuit 883, circuit breaker to A/C control relay, uses an orange wire.

Home/ Registry/ Ford/ Bronco/ 1978-1979/ “buyers guide”/ Photo supermotors.net/registry/media/966766

Ford Wiring Circuit Color Codes 835-907 - Wire Descriptions & Colors Chart

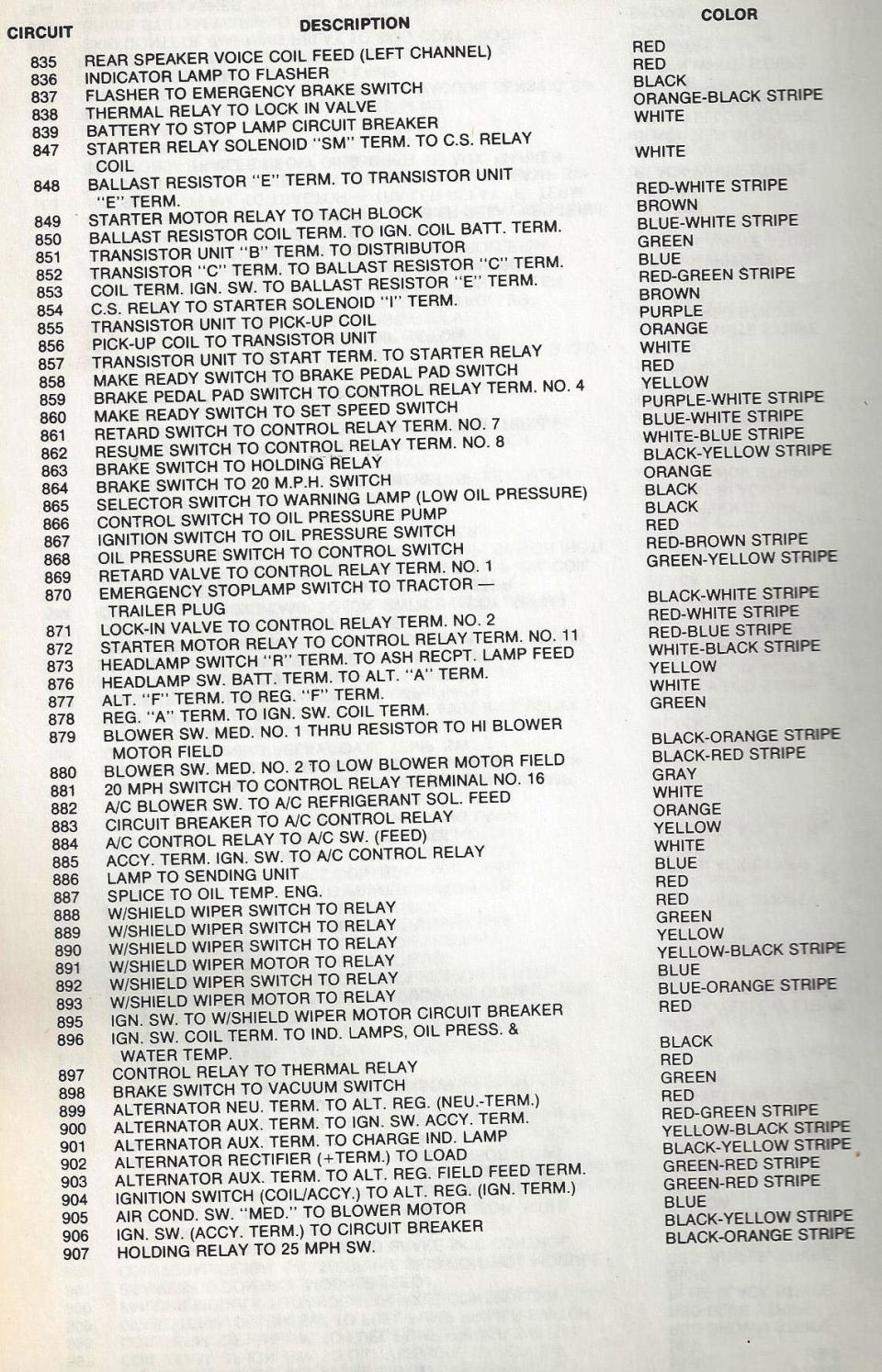

Wiring circuit number reference list with descriptions and wire colors circuits 835-907

‹ ›
