2010 Hyundai Genesis Coupe Power Distribution Wiring Diagram SD110-7 Fuses

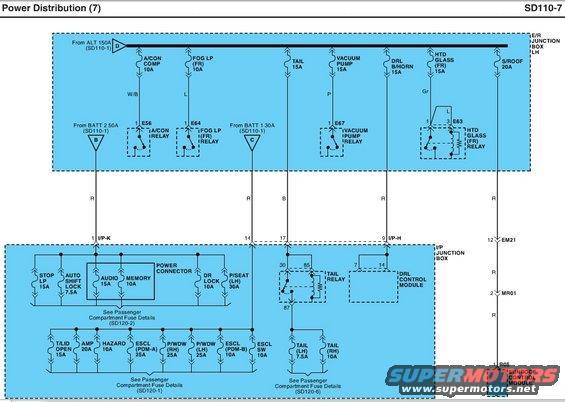

This is page SD110-7, "Power Distribution (7)," a factory-style wiring diagram showing battery/alternator power distribution through the E/R (engine room) Junction Box LH and the I/P (instrument panel) Junction Box. From the 150A alternator feed (referenced to SD110-1), the engine room junction box supplies fuses: A/CON COMP 10A, FOG LP (FR) 10A, TAIL 15A, VACUUM PUMP 15A, DRL B/HORN 15A, HTD GLASS (FR) 15A, and S/ROOF 20A, with associated relays (A/CON relay E56, front fog lamp relay E64, vacuum pump relay E67, heated front glass relay E63). Separate 50A (BATT 2) and 30A (BATT 1) feeds route to the I/P junction box, which contains fuses STOP LP 15A, AUTO SHIFT LOCK 7.5A, AUDIO 15A, MEMORY 10A, DR LOCK 10A, P/SEAT (LH) 30A, T/LID OPEN 15A, AMP 20A, HAZARD 10A, ESCL (PDM-A) 25A, P/WDW RH/LH 25A, ESCL (PDM-B) 10A, ESCL SW 10A, plus the tail relay feeding TAIL (LH) 7.5A and TAIL (RH) 10A fuses. It also shows the DRL control module feed and the sunroof control module circuit through connectors EM21, MR01, and R05, with wire colors (W/B, L, R, B, P, Gr) and cross-references to fuse detail pages SD120-1, SD120-2, and SD120-6.
