2010 Hyundai Genesis Coupe Component Locations CL-11 - Dash Panel Connectors

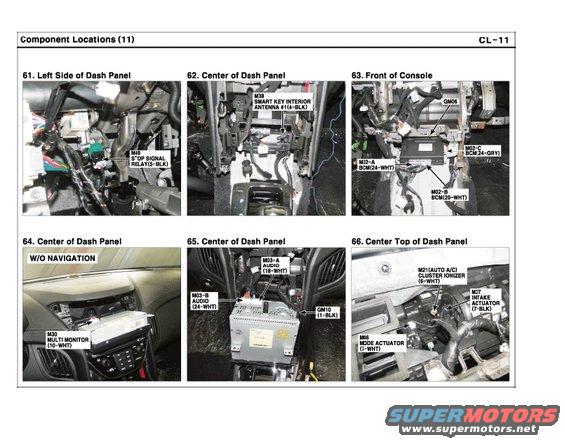

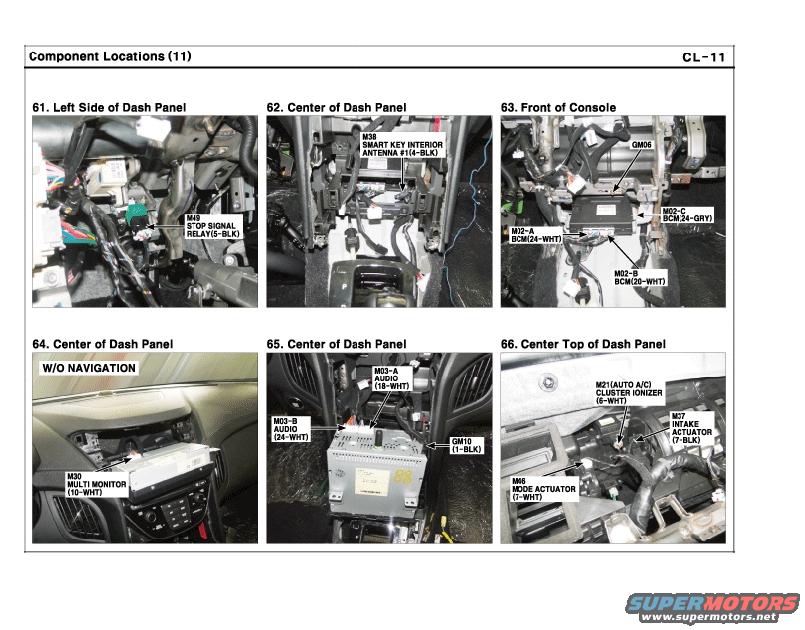

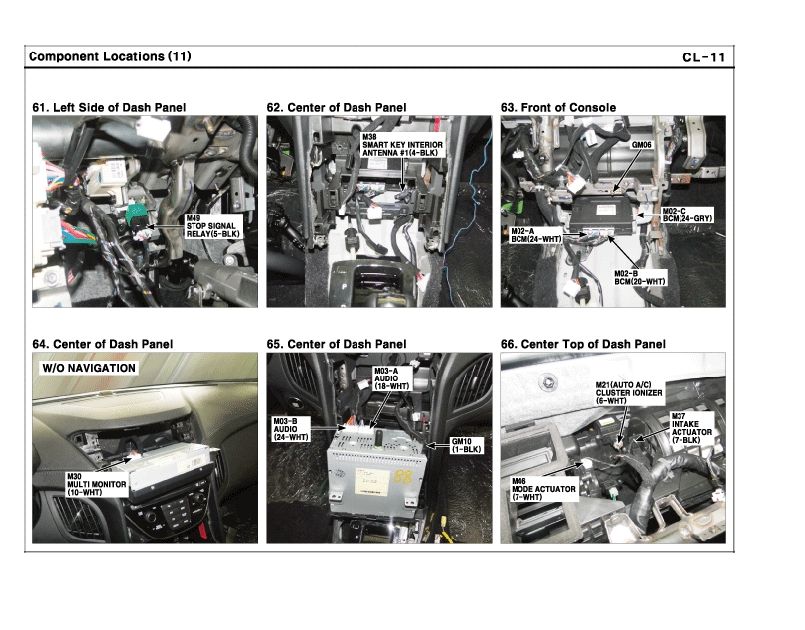

This is page CL-11, "Component Locations (11)," from a service manual electrical section, showing six photographic callouts (items 61–66) identifying connector and component locations around the dash panel and console. Item 61 (Left Side of Dash Panel) locates the M49 Stop Signal Relay (5-pin, black connector). Item 62 (Center of Dash Panel) shows the M38 Smart Key Interior Antenna #1 (4-pin, black). Item 63 (Front of Console) identifies connector GM06 and three BCM connectors: M02-A (24-pin white), M02-B (20-pin white), and M02-C (24-pin gray). Item 64 (Center of Dash Panel, W/O Navigation) locates the M30 Multi Monitor connector (10-pin white). Item 65 (Center of Dash Panel) shows audio unit connectors M03-A (18-pin white), M03-B (24-pin white), and ground GM10 (1-pin black). Item 66 (Center Top of Dash Panel) identifies the M21 Auto A/C Cluster Ionizer (6-pin white), M37 Intake Actuator (7-pin black), and M6 Mode Actuator (7-pin white). Each connector label includes pin count and connector color, useful for anyone diagnosing wiring for the audio system, body control module, HVAC actuators, or smart key antenna. The page contains no explicit year, make, or model information.
