5.0L engine controls wiring diagram with EGR, AIRB and AIRD sole…

5.0L engine controls wiring diagram with EGR, AIRB and AIRD solenoids and IAC valve to PCM
5.0L engine controls wiring diagram with EGR, AIRB and AIRD solenoids and IAC valve to PCMOriginal file
5.0L engine controls wiring diagram with EGR, AIRB and AIRD solenoids and IAC valve to PCM

Reference · 1992-1996 BroncoAll 411 wiring diagrams

5.0L engine controls wiring diagram with data link connector, HO2S #12 and manual/auto trans branches 5.0L engine controls heated oxygen sensor wiring diagram for HO2S #21 and #11 to PCM 5.0L engine controls fuel injector wiring diagram for cylinders #1 through #8 to PCM 5.0L engine controls wiring diagram with EGR, AIRB and AIRD solenoids and IAC valve to PCM 5.0L engine controls wiring diagram with PCM power relay, fuel pump relay, MAF sensor and inertia switch 4R70W transmission range sensor wiring diagram with starting, all-wheel drive and backup lamp circuits 4R70W power feed wiring diagram with PCM power relay, HO2S #12 and OSS sensor circuits 4R70W internal transmission wiring diagram with TFT sensor, TCC, shift and EPC solenoids 1996 Ford Bronco C202F 76-Pin Connector Pinout - EVTM Page 150-4 1994 Ford Bronco/F-Series C103 & C108 Connector Pinouts - EVTM Page 150-2 1994 Ford Bronco/F-Series EVTM 150-2: C103 & C108 In-Line Connector Pinouts Ford Bronco VSS to PCM Wiring Diagram - Rear Axle Sensor, PSOM, ABS Circuit 411wiring diagrams1992-1996 Ford Bronco More reference 1996 Ford Bronco/F-150 Distributor Exploded Parts Diagram & Installation 03-07A-6Exploded parts Ford F150/F250/F350 4x4 & Bronco Truck Jacking Instructions Label E7TA-17A083-EAService procedure 1994 Ford Bronco Door Data Spec Plate - VIN, GVWR, Axle & Paint CodesSpec plate 1996 Ford Bronco Owner's Manual - Checking & Adding Engine CoolantManual page 1993 Ford V8 Serpentine Belt Routing Diagram - Pulley Layout (Q2601-E)Schematic Smittybilt XRC Gen 3 Winch Box - 9.5K/12K Recovery Winch Features & CalloutsBrochure Brake Booster to Master Cylinder Adapter Plate Blueprint - Ford Bronco SwapBlueprint 1995 Ford Bronco 5.8L Emissions/VECI Label - Vacuum Hose Routing DiagramVacuum routing Ford Bronco/F-Series Fuse 18 (10A) - Speedometer, Air Bag, Shift ControlFuse chart Rod Bolt Stretch Monitoring Chart - 8-Rod V8 Connecting Rod Bolt Record SheetTorque spec

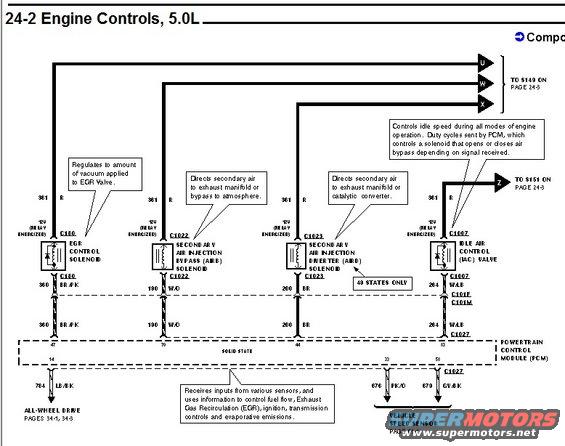

Page 24-2 Engine Controls, 5.0L showing the EGR control solenoid, AIRB and AIRD solenoids (AIRD 49 states only) and IAC valve at C1007 wired to the PCM.

Part of 1992-1996 Ford Bronco Wiring Diagrams

AI caption · Photo 308 of 378
