Hyundai Genesis 2.0T Timing Chain Install - Alternator, Coil & Intercooler Torques (EM-32)

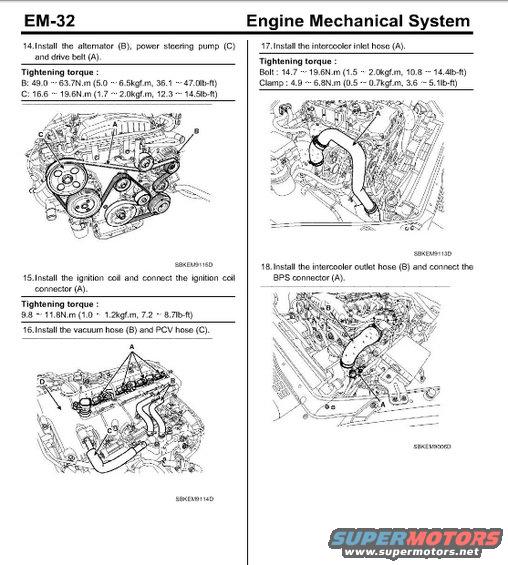

This is page EM-32 from a factory service manual section titled "Engine Mechanical System," showing reinstallation steps (steps 14–18) at the end of an engine service procedure, uploaded as part of a timing chain installation set for a 2.0L turbocharged engine. Step 14 covers installing the alternator, power steering pump, and drive belt, with tightening torques of 49.0–63.7 N.m (36.1–47.0 lb-ft) for the alternator and 16.6–19.6 N.m (12.3–14.5 lb-ft) for the power steering pump. Step 15 covers installing the ignition coil and connecting its connector, torqued to 9.8–11.8 N.m (7.2–8.7 lb-ft). Step 16 covers installing the vacuum hose and PCV hose. Step 17 covers installing the intercooler inlet hose, with bolt torque of 14.7–19.6 N.m (10.8–14.4 lb-ft) and clamp torque of 4.9–6.8 N.m (3.6–5.1 lb-ft). Step 18 covers installing the intercooler outlet hose and connecting the BPS (boost pressure sensor) connector. Four illustrations with figure codes SBKEM9115D, SBKEM9114D, SBKEM9113D, and SBKEM9006D show component locations and callout letters. The presence of intercooler hoses indicates a turbocharged engine application.
